12
Mellanox Technologies
2 Interfaces

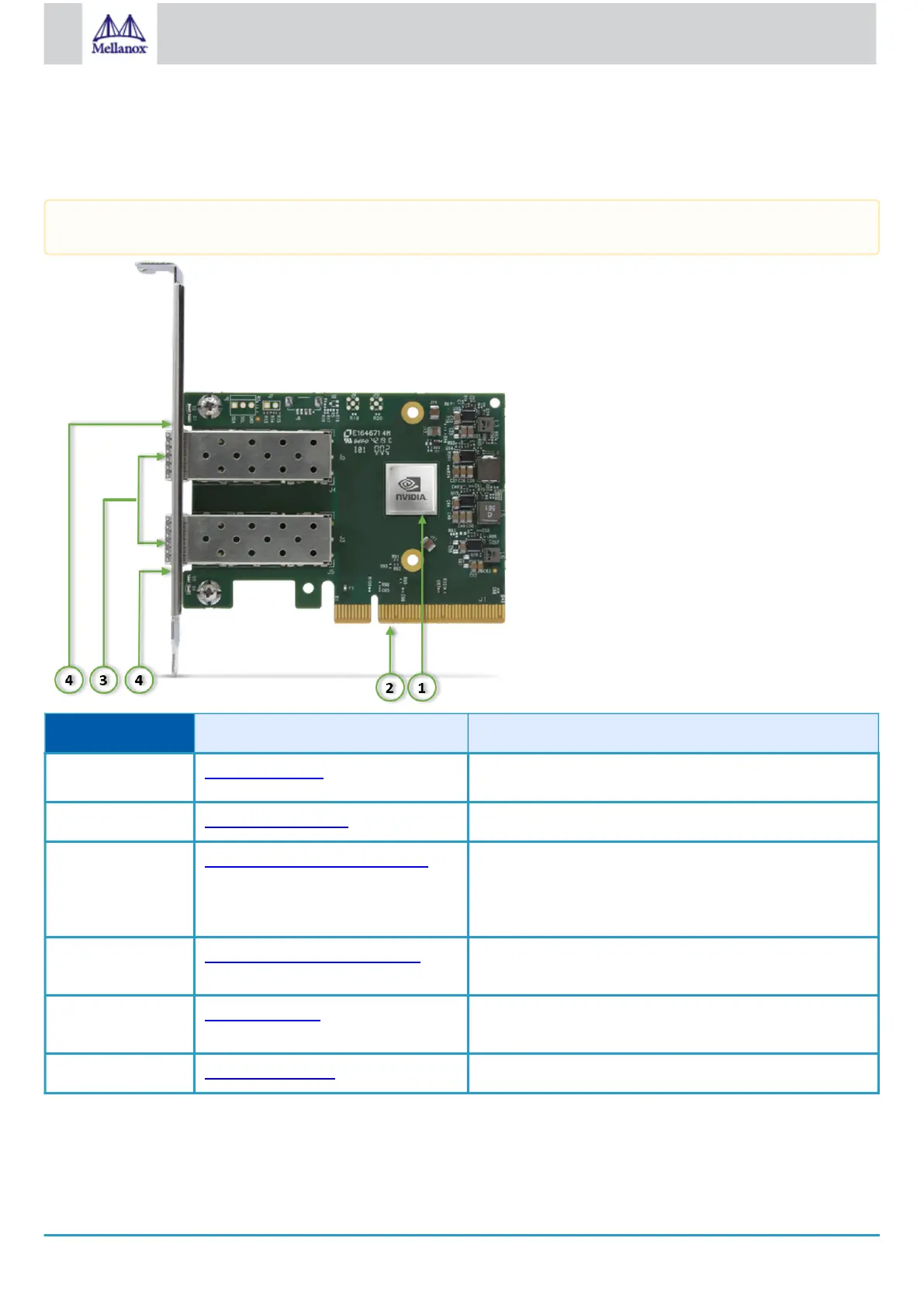

he below figure show the component side of the Mellanox ConnectX-6 Lx adapter card. Each numbered interface that is referenced
in the figures is described in the following table with a link to detailed information.
Callout Item Description
1 “ConnectX-6 Lx IC” Mellanox ConnectX-6 Lx IC on the board.
2 “PCI Express Interface" PCIe Gen 3.0/4.0 through an p12-x8 edge connector.
3 “Ethernet SFP28/QSFP28 Interface” Ethernet traffic is transmitted through the adapter's SFP28/
QSFP28 connectors. The networking connectors allow for the
use of modules, optical and passive cable interconnect
solutions.
4 “Networking Ports LEDs Interface” There are two I/O LEDs per port to indicate speed and link
status.
“SMBus Interface” Allows BMC connectivity using MCTP over SMBus or MCTP
over PCIe protocols.
“Voltage Regulators” Voltage supply pins that feed onboard regulators.
The below figures are for illustration purposes only and might not reflect the current revision of the adapter card.
