INSTALLATION MANUAL
INSTALLATION
10

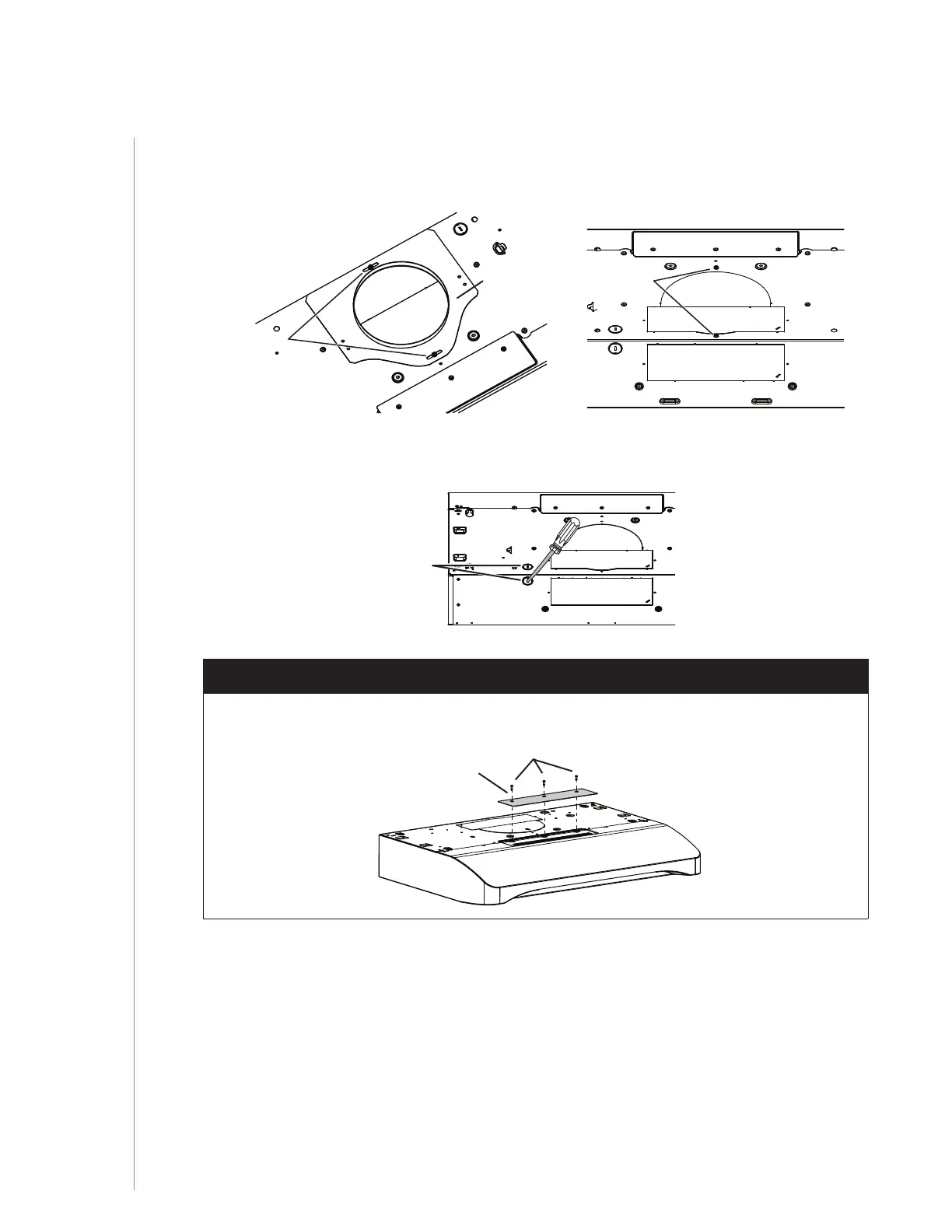

5 ] BQDD1 Series only: Remove 7” Round Duct Plate from top/back of hood (see illustration
below). Keep the screws for further use. NQDD1 Series only: Remove 2 screws from top of
hood (see illustration below). Keep the screws for further use.
RECIRCULATION
COVER PLATE
SCREWS
6 ] Remove Electrical Power Cable Knockout from top (vertical wiring) or back (horizontal wiring)
of hood. Install an appropriate strain relief, 1/2” diameter (not included).
NON-DUCTED INSTALLATION ONLY
7 ] Remove 3 screws retaining the recirculation cover plate (shaded part in illustration below)
to the hood. Discard this plate with its screws.
7” ROUND
DUCT
PLATE
2 SCREWS
ELECTRICAL
POWER CABLE
KNOCKOUT
NQDD1 SeriesBQDD1 Series
2 SCREWS
