INSTALLATION MANUAL

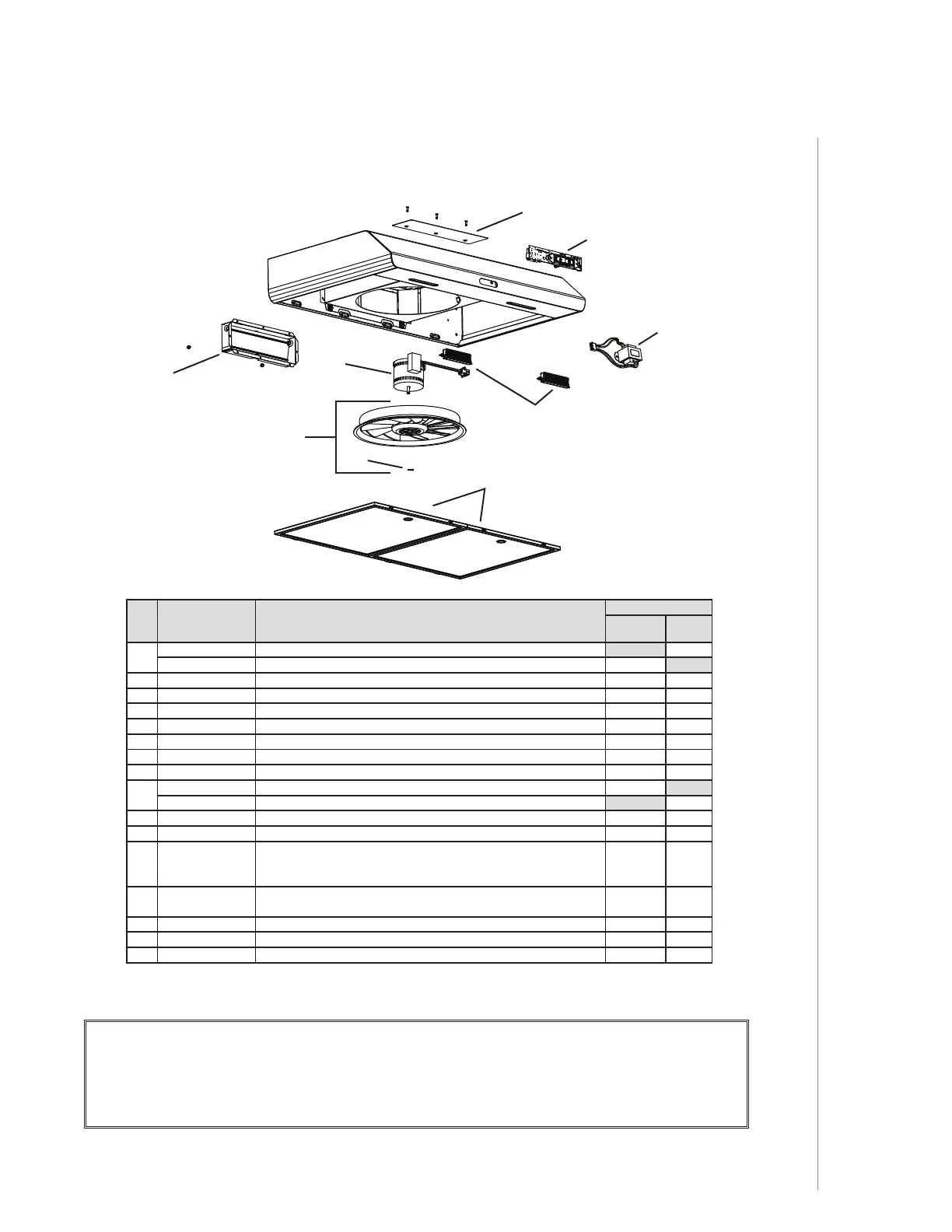

SERVICE PARTS
27
KEY
NO.
P
ART NO.DESCRIPTION
QUANTITY
30"
STAINLESS
30"
WHITE
1
S97020030 R
ECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)1
S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)1
2 S97020534 3¼” X 10” DAMPER ASSEMBLY (INCLUDING SCREWS)11
3 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR)11
4 S97020407 FANPELLER (INCLUDING ITEM 5) 1 1
5 SR99420635 C
LIP FOR FANPELLER 11
6 S99010434-002 GREASE FILTER - MICRO MESH - TYPE C2 (SET OF 2) 1 1
7 S97020444 LED MODULE (PAIR)11
8 S97020445 TRANSFORMER 24 V 18 VA (WITH SCREWS)11
9
S97020431 CAPTOUCH CONTROL LED, STAINLESS (WITH SCREWS)1
S97020432 CAPTOUCH CONTROL LED, WHITE (WITH SCREWS)1
* S97020452 W
IRE HARNESS 11
* S98011637 WIRING COVER 11
* S97020360
PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2”,
6 ROUND HEAD NO. 8 X 5/8” WOOD SCREWS,
6 NO. 8 X 1/2” COUNTERSUNK SCREWS
11
* S97020466†
NON-DUCTED FILTER - TYPE XC (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
11
* S99527587† NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)11
* S97020470 E
ASY INSTALL KIT (INCLUDING HARDWARE)11
* SR680508† 7'' ROUND DUCT PLATE (INCLUDING SCREWS)11
BKDF1 SERIES
* ITEM NOT SHOWN.
† INCLUDED WITH BKDF130SSK MODEL ONLY.
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine
replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each
unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third
party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in
premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement
parts and repairs.
