INSTALLATION MANUAL
INSTALLATION
12

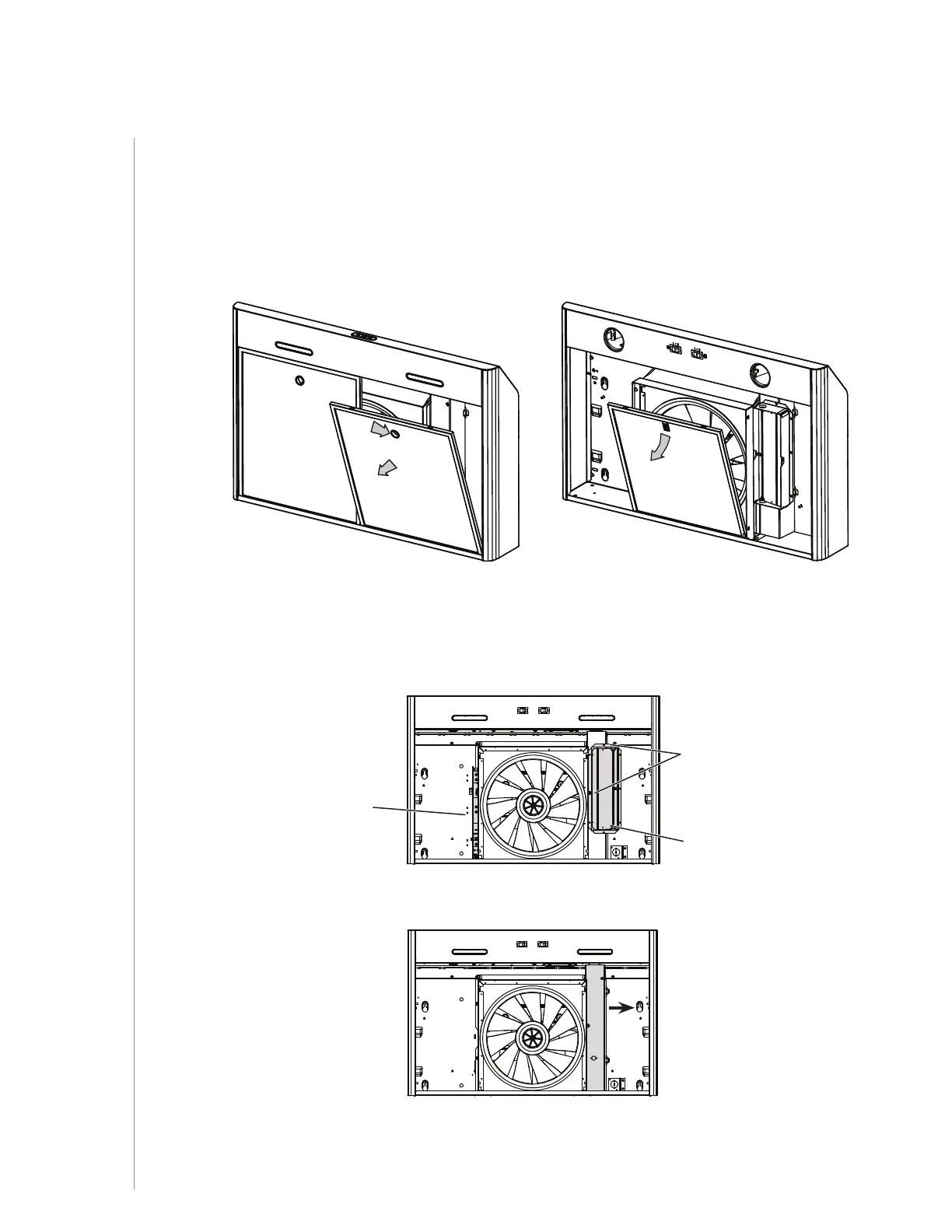

Prepare the Hood
1 ] If present, remove all protective polyfilm from the hood and/or parts.
2 ] Using the finger cup or tab, remove the grease filters from the hood by pushing down and
tilting filter out .
3 ] BKDF130SSK only: Remove the non-ducted filters and the power cord from inside the hood.
Remove the EZ1 brackets from inside the hood by cutting off the tie wrap (no EZ1 brackets
in BKSA2 and NKSA2 Series). Remove both screws holding damper assembly to hood.
Remove parts bag (captured behind the damper assembly). Remove damper assembly from
inside the hood and keep the screws for further use.
4 ] Remove the wiring cover (shaded part on illustration below) by sliding it out from the hood
and set it aside.
B
C
DAMPER
ASSEMBLY
SCREWS
EZ1
BRACKETS
NOTE: Since this manual covers many range hood models, some details in the following
illustrations may sligthly differ from your unit.
