INSTALLATION MANUAL

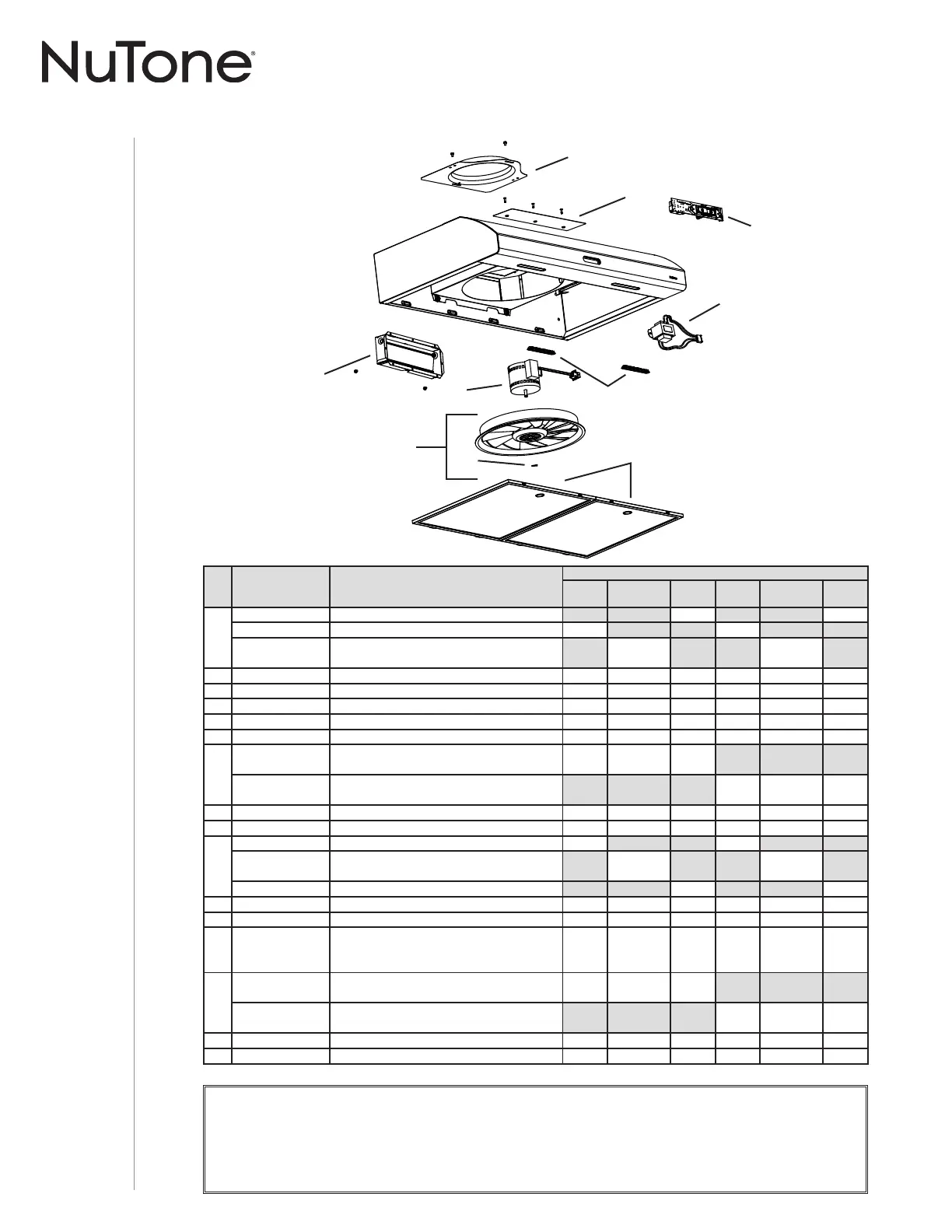

SERVICE PARTS
22
HL0273
Key
no.
Part no. deScriPtion
Quantity
30"
White
30"
StainleSS
30"
BlacK
36"
White
36"
StainleSS
36"
BlacK
1
S97020029 recirculation cover plate, Black (incl. screws) 1 1
S97020030 recirculation cover plate, white (incl.screws) 1 1
S97020031
recirculation cover plate, stainless steel
(incl. screws)
1 1
2 SR680508 7'' round duct plate (including screws) 1 1 1 1 1 1
3 S97020534 3¼” x 10” damper assemBly (incl. screws) 1 1 1 1 1 1
4 S97020409 Blower motor (incl. 4 screws and 1 capacitor) 1 1 1 1 1 1
5 S97020407 Fanpeller (including item 6) 1 1 1 1 1 1
6 SR99420635 clip For Fanpeller 1 1 1 1 1 1
7
S99010434-002
grease Filter - micro mesh - type c2
(set oF 2)
1 1 1
S99010434-003
grease Filter - micro mesh - type d2
(set oF 2)
1 1 1
8 S97020444 led module (pair) 1 1 1 1 1 1
9 S97020445 transFormer 24 v, 18 va (with screws) 1 1 1 1 1 1
10
S97020432 captouch control led, white (with screws) 1 1
S97020431
captouch control led, stainless (with
screws)
1 1
S97020433 captouch control led, Black (with screws) 1 1
* S97020452 wire harness 1 1 1 1 1 1
* S98011637 wiring cover 1 1 1 1 1 1
* S97020360
parts Bag: 4 metal screws no. 8-18 x 1/2”,
6 round head no.8 x 5/8” wood screws,
6 no. 8 x 1/2” countersunk wood screws
1 1 1 1 1 1
*
S97020466
non-ducted Filter - type xc (set oF 2)
(non-ducted installation only)
1 1 1
S97020467
non-ducted Filter - type xd (set oF 2)
(non-ducted installation only)
1 1 1
* S97020470 easy install kit (including hardware) 1 1 1 1 1 1
* S99527587 non-ducted Filter clip kit - includes 4 clips 1 1 1 1 1 1
AHDA1 SERIES
* item not shown.
rePlaceMent PartS and rePairS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine
replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each
unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third
party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in
premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement
parts and repairs.
