INSTALLATION MANUAL
INSTALLATION
17

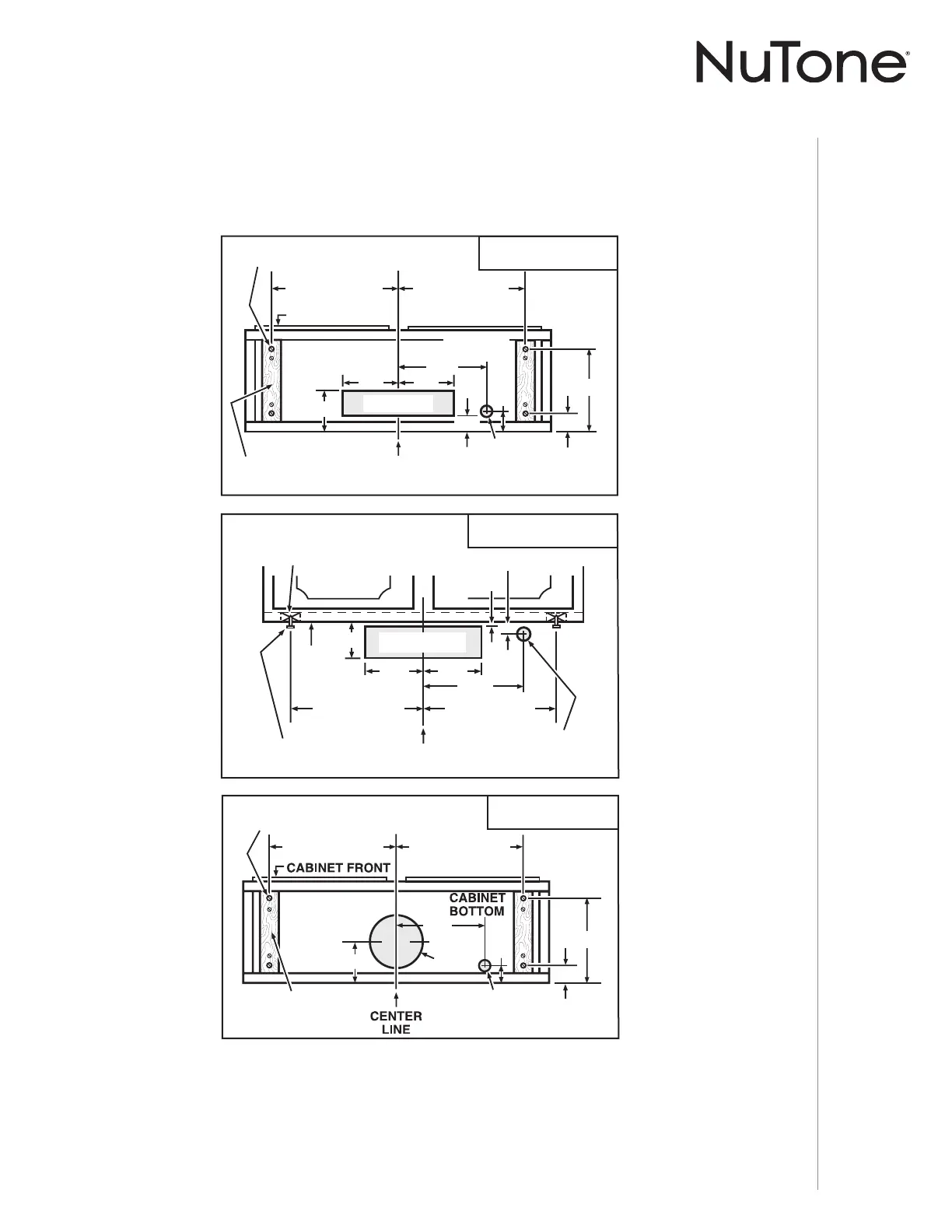

1 ] Use the proper diagram below for placement of ductwork and electrical cutout in cabinet
or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for
electrical wiring.
2 ] Install part-way four (4) ROUND HEAD no. 8 x 5/8” mounting screws into shims/cabinet,
according to the proper diagram above. (Mounting screws are included in parts bag, but wood
shims and shim mounting screws are not included.)
VERTICAL DUCT
ACCESS HOLE
10
15
/16"
5¼"
5¼"
CENTER
LINE
HOOD MOUNTING SCREWS (4)
ELECTRICAL
ACCESS HOLE
(
IN CABINET BOTTOM)
WOOD SHIMS
(
RECESSED-BOTTOM
CABINETS
ONLY)
CABINET FRONT
3/4"
1⅜"
1½"
7³/16"
12⅞" (30" HOOD)
15⅞" (36"
HOOD)
4
7
/16"
HD0780A
CABINET
BOTTOM
12⅞" (30"
HOOD)
15⅞" (36"
HOOD)
3¼" x 10"
VERTICAL DUCTING
CABINET
BOTTOM
CABINET FRONT
HORIZONTAL DUCT
ACCESS HOLE
HOOD
MOUNTING
SCREWS (4)
ELECTRICAL
ACCESS HOLE
(
IN WALL)
3⅞"
CENTER
LINE
WOOD SHIMS
(
RECESSED
-
BOTTOM
CABINETS
ONLY)
13/16"
3/16"
5¼"
5¼"
HD0781A
12⅞" (30" HOOD)
15⅞" (36"
HOOD)
12⅞" (30"
HOOD)
15⅞" (36"
HOOD)
7³/
16"
3¼" x 10"
HORIZONTAL DUCTING
ELECTRICAL
ACCESS HOLE
(
IN
CABINET
BOTTOM
)
HOOD MOUNTING SCREWS (4)
4¹¹/16"
8" DIA.
HOLE
7-IN. ROUND
7-IN. ROUND
DUCT
DUCT
ACCESS
ACCESS
HOLE
HOLE
7-IN. ROUND
DUCT
ACCESS
HOLE
HD0782A
WOOD SHIMS
(
RECESSED-BOTTOM
CABINETS ONLY)
12⅞" (30" HOOD)
15⅞" (36"
HOOD)
12⅞" (30"
HOOD)
15⅞" (36"
HOOD)
10
15
/16"
1½"
1⅜"
7³/
16"
7-IN. ROUND
VERTICAL DUCTING
Standard Installation (without EZ1 brackets)
