VX16s All-in-One Controller
User Manual
www.novastar.tech
2

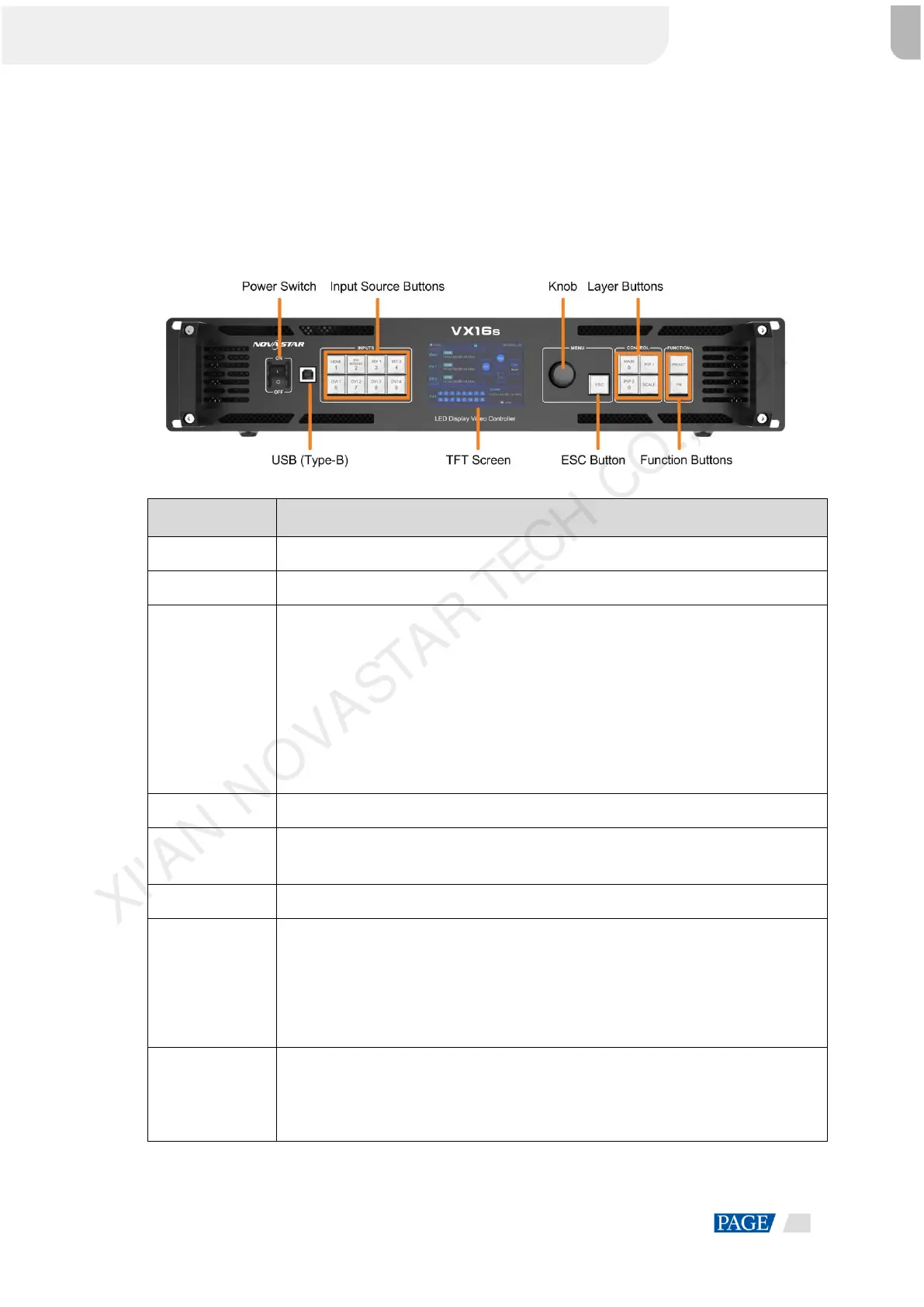

2 Appearance
Front Panel 2.1
Type
Description
Power switch
Power on or power off the device.
USB (Type-B)
Connect to the control PC for debugging.
Input source
buttons
On the layer editing screen, press the button to switch the input source for the layer;
otherwise, press the button to enter the resolution settings screen for the input source.
Status LEDs:
On (orange): The input source is accessed and used by the layer.
Dim (orange): The input source is accessed, but not used by the layer.
Flashing (orange): The input source is not accessed, but used by the layer.
Off: The input source is not accessed and not used by the layer.
TFT screen
Display the device status, menus, submenus and messages.
Knob
Rotate the knob to select a menu item or adjust the parameter value.
Press the knob to confirm the setting or operation.
ESC button
Exit the current menu or cancel the operation.
Layer buttons
Press a button to open a layer, and hold down the button to close the layer.
MAIN: Press the button to enter the main layer settings screen.
PIP 1: Press the button to enter the settings screen for PIP 1.
PIP 2: Press the button to enter the settings screen for PIP 2.SCALE: Turn on or
turn off the full screen scaling function of the bottom layer.
Function buttons
PRESET: Press the button to enter the preset settings screen.
FN: A shortcut button, which can be customized as a shortcut button for
Synchronization (default), Freeze, Black Out, Quick Configuration or Image Color
function
