NovaLCT LED Configuration Tool for
Synchronous Control System User Manual
www.novastar.tech
3
3 Device Connection
3.1 Connect PC to Sending Card
Connect the PC with NovaLCT installed to the sending card with control cable (USB cable or Ethernet cable), as
shown in Figure 3-1. The MCTRL4K is used as an example of sending device.
All control commands, parameters and configuration files are transmitted with the control cable.
The PC can also be connected to multiple sending cards with control cable. After selecting a target communication
port in NovaLCT, you can operate the connected device.

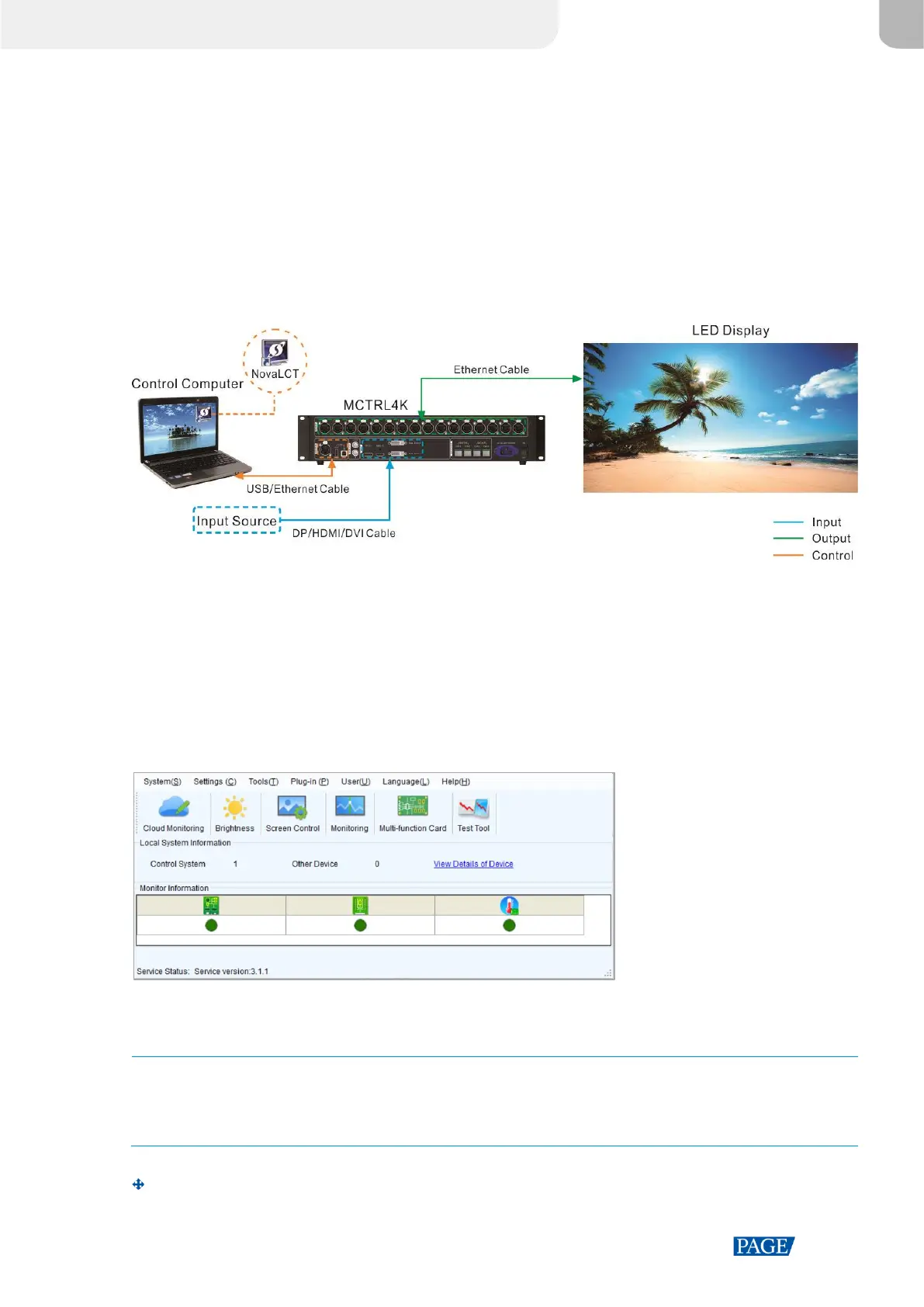

Figure 3-1 Hardware connection example
If the receiving card supports no sending card mode, the PC with NovaLCT installed can be directly connected to the
receiving card with Ethernet cable. For related settings, see 13.1 How do I set the required parameters in no sending
card mode?
3.2 Connect NovaLCT to Sending Card
If the hardware connection is normal and the sending card is operating normally, NovaLCT connects to the sending
card automatically. After successful connection, the NovaLCT main window displays the sending card quantity and
monitoring information about the control system, as shown in Figure 3-2.
Figure 3-2 Main window (Not logged in)
Click View Details of Device to view the communication port, device name, device quantity, SN, and take over the
control of other devices. If the communication port information contains IP address, NovaLCT communicates with the
device via Ethernet port. If it contains “USB” characters, they communicate via USB port. “SN” is the unique identifier
of the sending card.
Notes
Currently, the take over function is only available for MGT2000, MGT1000, MGT600. When a device is being
controlled by another instance of NovaLCT and is not available for connection by your NovaLCT, you can click
Take Over under Operation to assume control of the device.
Connection related operations:
Reconnect sending card
Choose System > Reconnect.
