H Series Video Wall Splicers User Manual
www.novastar.tech
1
Device Connections
Input Cards
The H series supports a variety of input sources. Connect the input sources to the matched input card
connectors.
DVI, HDMI, SDI, CVBS, VGA or DP input sources
Connect the input sources to the matched input card connectors using corresponding cables or converter
cables.
IP camera sources
Connect the input source to the Ethernet port of the H_2xRJ45 IP input card using an Ethernet cable.

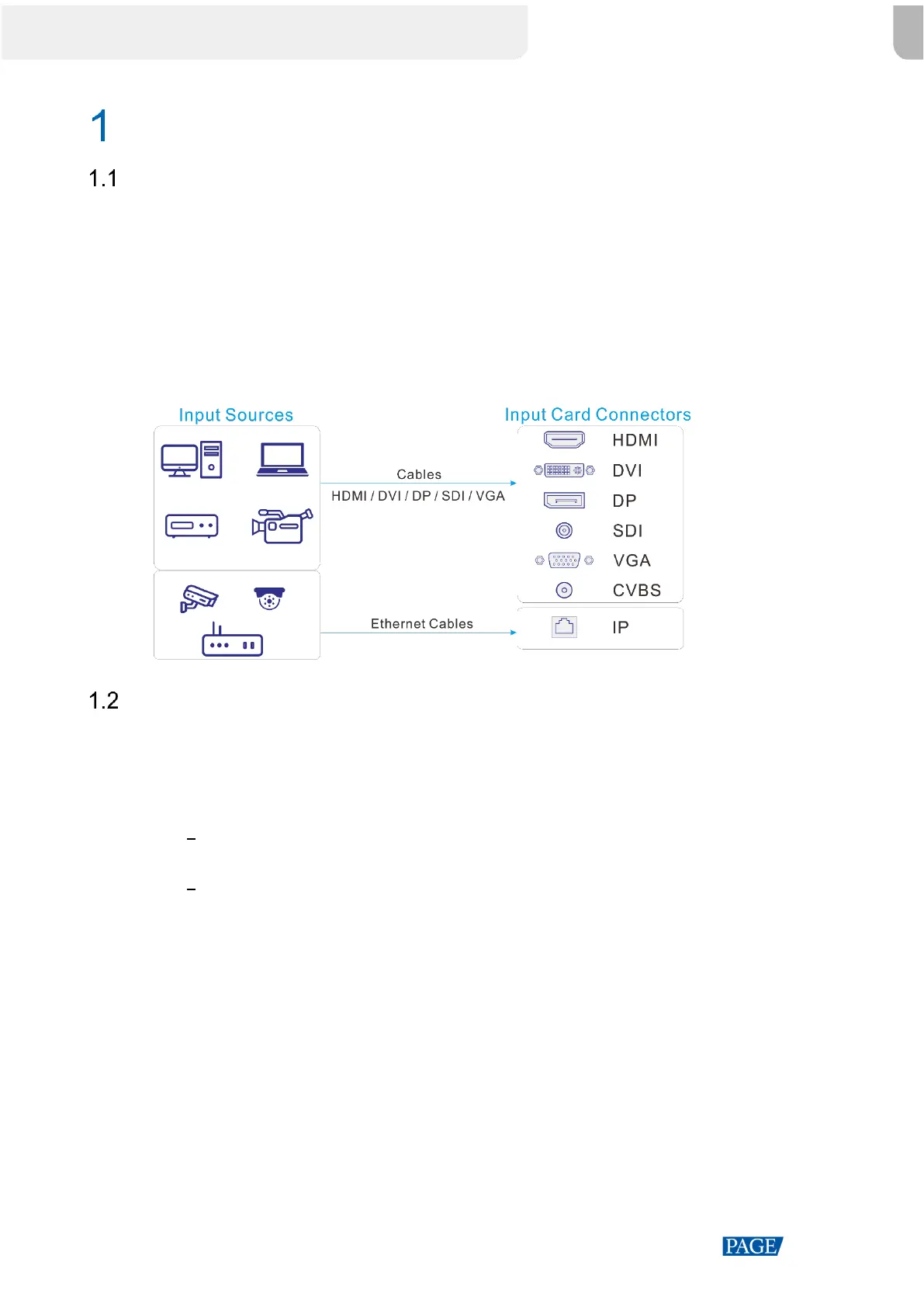

Figure 1-1 Input card connection
Output Card
The H series provides two kinds of LED 4K sending cards: H_16xRJ45+2xfiber sending card and H_20xRJ45
sending card.
When the H_16xRJ45+2xfiber sending card is used for output, the OPT ports copy the outputs on the
Ethernet ports. OPT 1 copies and outputs the data on Ethernet ports 1–8. OPT 2 copies and outputs the
data on Ethernet ports 9–16.
Via Ethernet port
Connect the Ethernet ports directly to the LED screen based on the screen structure.
Via OPT port
OPT ports are used for long-distance transmission. Connect the OPT ports to a fiber converter
firstly, and then connect the fiber converter to the LED screen.
