NORD MODULAR G2 V1.4x 13. Module reference: LFO group
Page 191
C
LK
G
EN

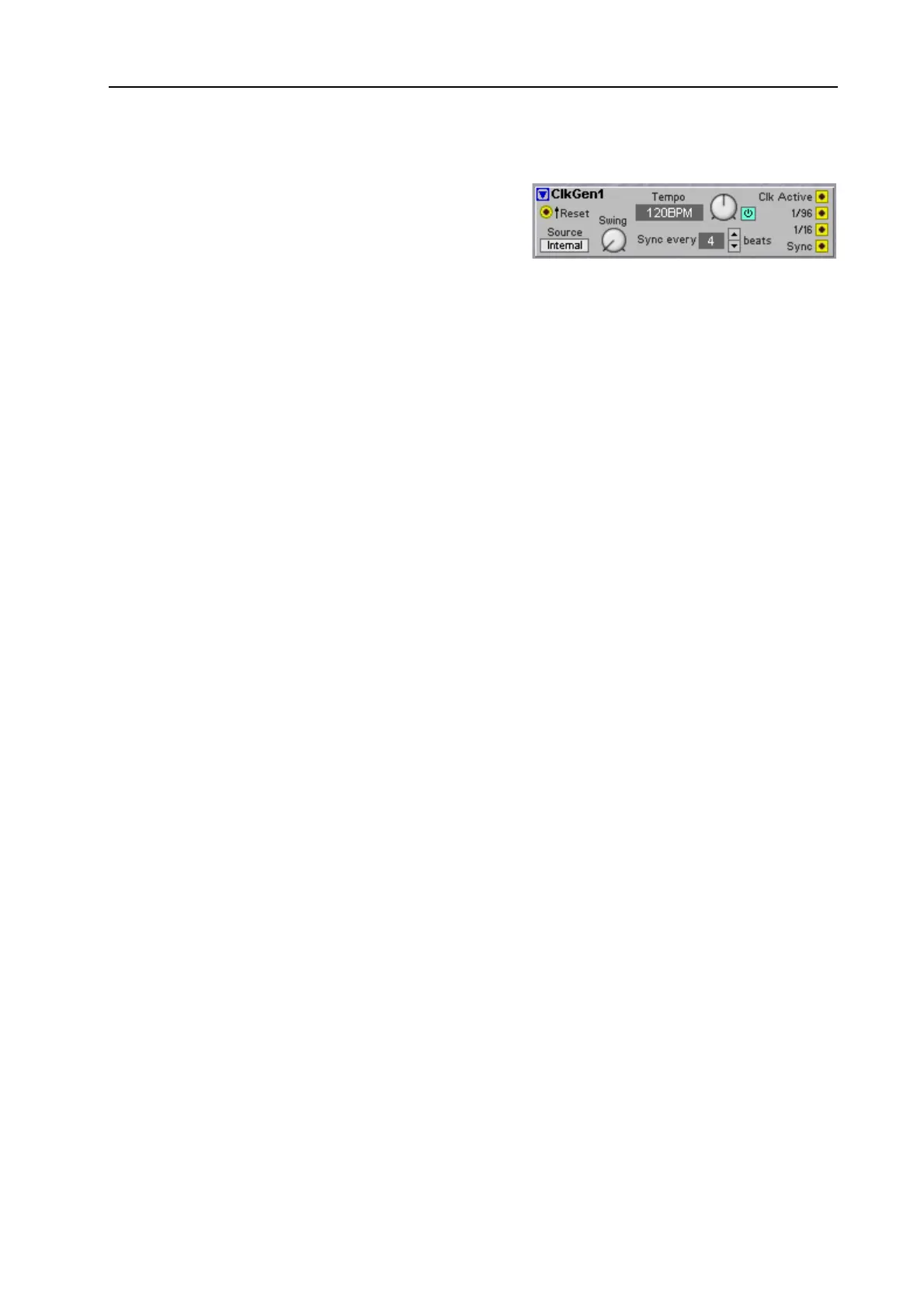

The Clock Generator module generates a stream of logic
signals. The Clock Generator can either act on its own or
use the Master Clock signal. If you want to sync to
external
MIDI
CLOCK
, you must select Master Clock as
Source and then sync the Master Clock to external
MIDI
CLOCK
(see “Synth Settings {Ctrl-G}” on page 120). For examples on how to use the Clock Generator
together with Sequencer modules, see “Sequencing examples” on page 244.
R
ESET
INPUT
The yellow Reset input forces the clock generator to restart on the positive edge of a logic
HIGH
reset pulse.
If the reset signal is not a logic signal, e.g. a blue signal, it will first be transfomed to a logic signal before
being use. This signal could come from a Gate output of a Keyboard module, for example. When the
clock generator is reset, it also transmits a high logic signal on the Sync output.
C
LOCK
SOURCE
Click the scroll button to select Internal or Master Clock signal. If Master is selected, the tempo is selected
in the Master Clock section in the Toolbar.
S
WING
Set the desired swing factor of the output clock signal. Range: 50%-75%.
T
EMPO
KNOB
Set the desired tempo, in beats per minute, with the knob. Range: 24 to 214 BPM. The tempo is shown
in the display box to the left of the knob. If Master is selected as Clock Source (see above), the tempo is
selected in the Master Clock section in the Toolbar.
O
N
/O
FF
Starts and stops the output of clock pulses.
S
YNC
EVERY
NN
BEATS
Here you set the interval for sending a logic pulse on the Sync output of the Clock Generator module.
This logic pulse can be used for resetting the sequencer modules in Nord Modular G2 to the “first beat
in the bar”. If you do not use the Sync function, the sequencer modules have no chance of knowing
where they are in a bar. By using the Sync function, it will never take longer than the set number of beats
for the sequencer modules to realign themselves if you decide to start your sequencer modules in the
middle of a song.
If you are synchronizing Nord Modular G2 to a
MIDI
Clock source, this function will also keep track of
any incoming
MIDI
Song Position Pointer messages.
A
CTIVE
OUTPUT
This yellow output provides you with a logic
HIGH
signal when the Click Generator is switched on in
Internal Clock Source mode. If you have selected Master Clock Source, the Active output will send a logic
HIGH
signal as soon as a
MIDI
Start or
MIDI
Continue command is received at the MIDI I
N
port. The
logic signal will switch back to
LOW
when Nord Modular G2 receives a
MIDI
Stop signal at the MIDI I
N
port. When the G2 does not receive
MIDI
CLOCK
the active output will follow the
RUN
/
STOP
state of the
G2 Master Clock.
Signal: Logic.
