13. Module reference: In/Out group NORD MODULAR G2 V1.4x
Page 162
E
XAMPLE
2: 4
VOICES
AND
4
WAVE
-
FORMS

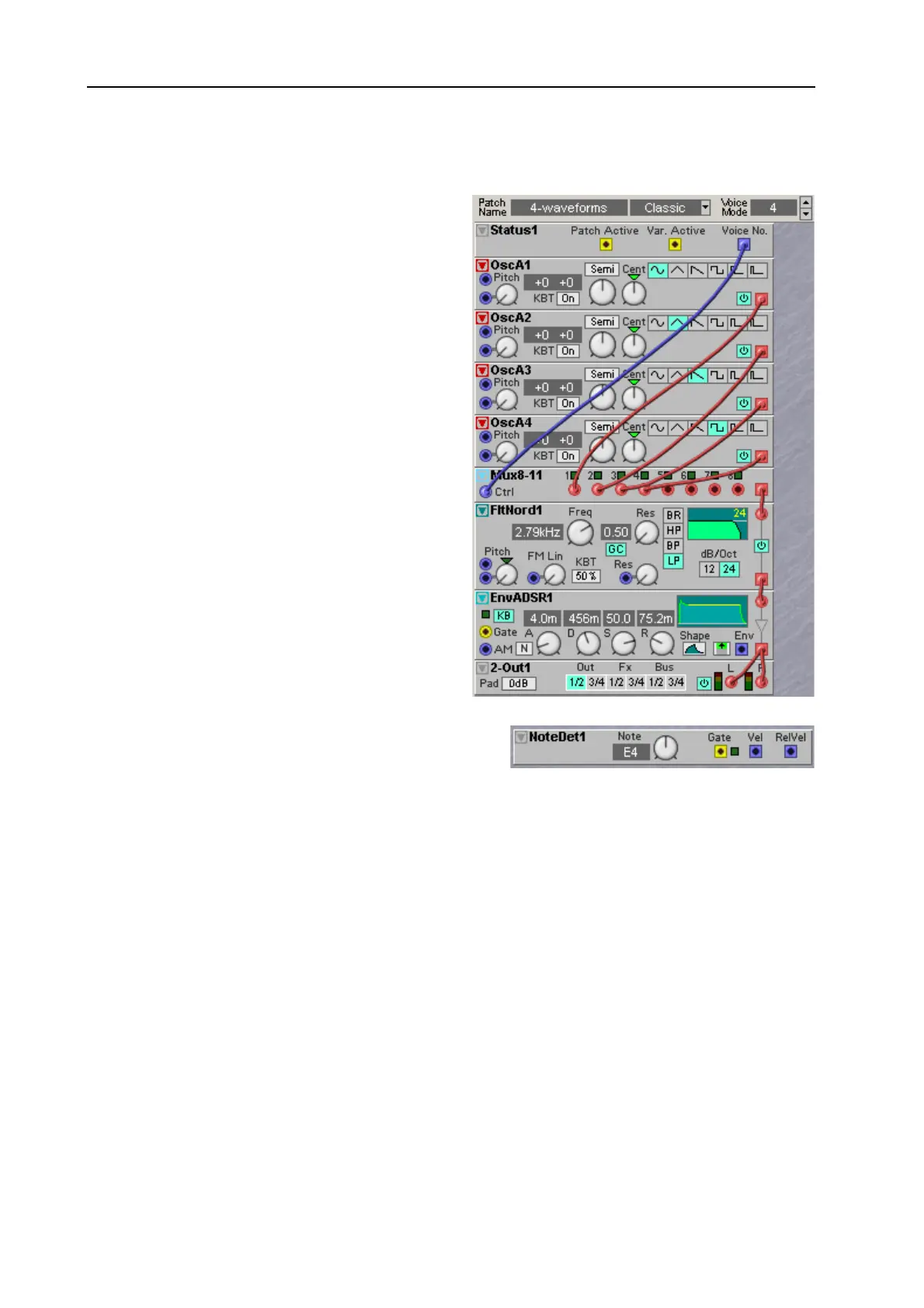

By using the Voice No output of the Status module
in combination with the Ctrl input of an
8-1Multiplexer module, you can even create
polyphonic Patches that have completely different
sounds for each individual voice. This example
shows a 4 voice polyphonic Patch with separate
oscillators and waveforms for each voice
N
OTE
D
ET
This module can detect if a certain a note is played, either
on the Nord Modular G2 keyboard, on the M
IDI
I
N
connector, or when sent from another Slot with a
MIDI
NoteSend module with the Slot this module is in as destination. This module is commonly used to trigger
drum or percussive sounds assigned to a fixed
MIDI
note. A logic
HIGH
signal will be transmitted, together
with a velocity control signal, when the selected key is detected. The logic signal will switch to a logic
LOW
signal, and a release velocity control signal will be sent, when the selected key is released. The Note
Detect module is global and affects all voices assigned in a patch. The behavior is similar to the MonoKey
module described on page 159. The Note detect module is not affected by the polyphony of the patch.
It will detect notes, even if you run out of polyphony.
N
OTE
KNOB
Select the note to be detected. Range: C-1 to G9.
O
UTPUTS
Gate signal: Logic.
Velocity (linear Velocity signal): Unipolar Positive.
RelVel (linear Release Velocity signal): Unipolar Positive.
