Physical configuration

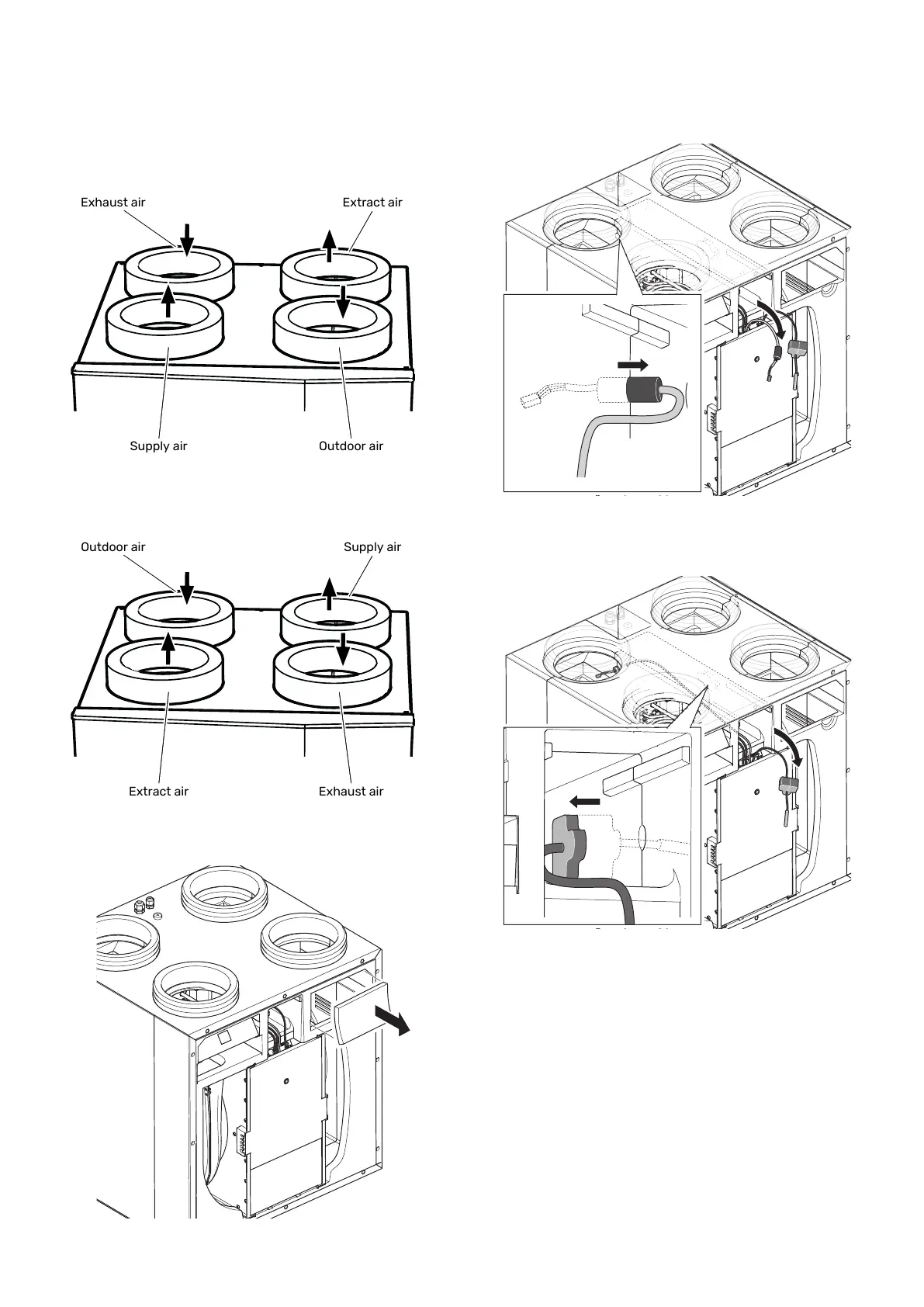

ERS S40 is supplied with exhaust air and supply air to the
left, known as the left-handed version. The images in this
manual show ERS S40 in the left-handed version, unless
otherwise specified.
Exhaust air Extract air
Supply air Outdoor air
ERS S40 can be converted to a right-handed version if ne-
cessary, which means that exhaust air and supply air are
connected to the right.
Outdoor air Supply air
Extract air Exhaust air
CONVERSION TO RIGHT-HANDED VERSION
1. Remove the insulation located in the right-hand space.
2. Remove the humidity sensor (BM20) including the insu-
lation plug. This is located furthest in the left-hand
space.
3. Remove the extract air sensor (BT21) including the insu-
lation plug. This is located furthest in the right-hand
space.
NIBE ERS S40-400Chapter 2 | Delivery and handling8
