18

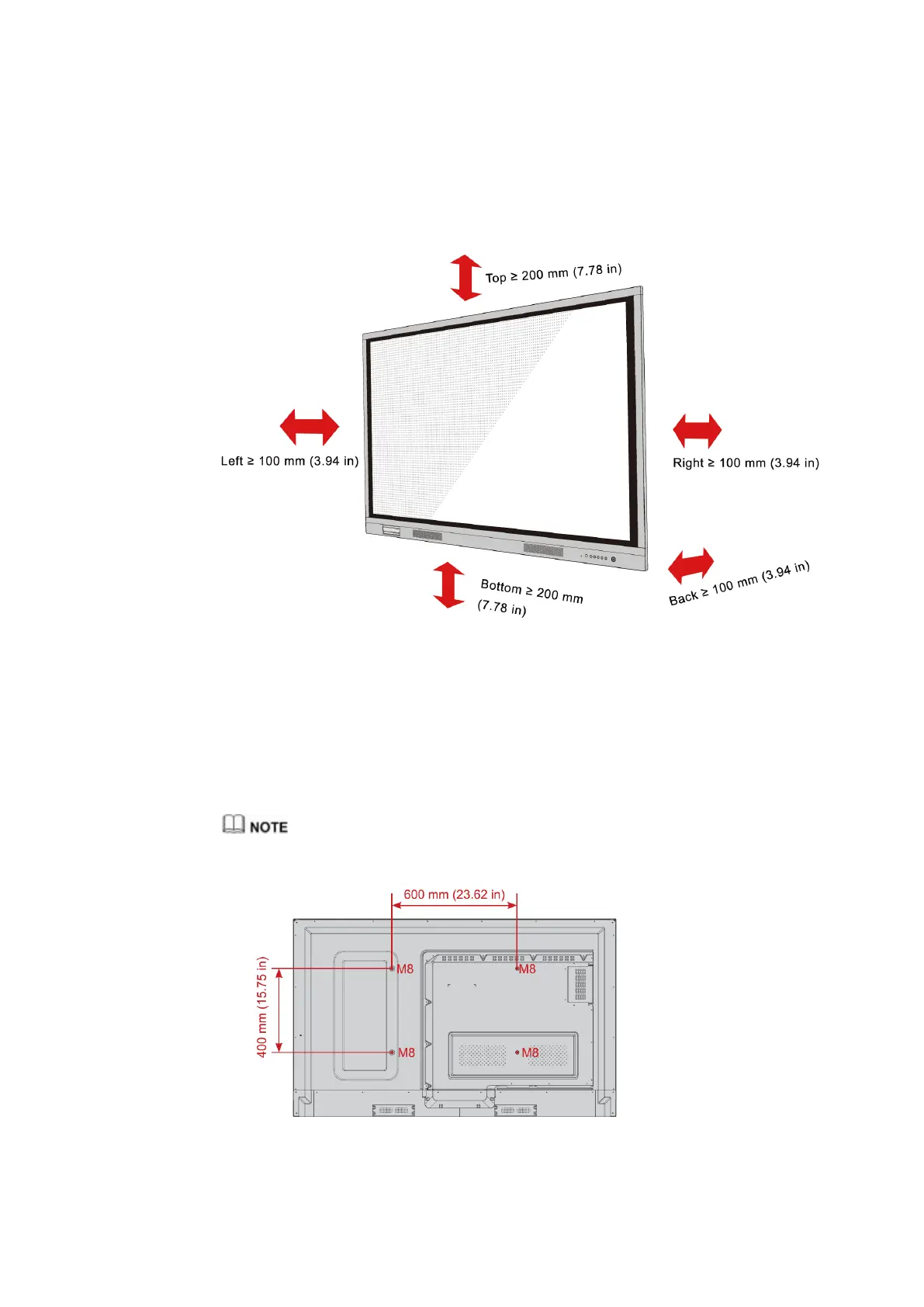

Ventilation
Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain
distances from the side of the product to the wall or panels. Ventilation requirements are shown in
the following figure.
2.3 Installation
The dimensions of the four bracket mounting holes on the back panel are VESA MIS-
Fcompliant (65” :600 x 400mm/23.62 x 15.75in; 75”: 800 x 400 mm/31.50 x 15.75 in;). Use
metric M8 screws with length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen
with the mounting system. Dimensions of themounting holes on the back panel are shown on
the following figure.
C
onsult a professional installer to install the display product.
TT-6519I
TT-7519I
