Newline Interactive Inc newline-interactive.com
17
3). Starting at the left and top of the sound bar, gently pull the white 2 pin connection, red
power cable, black ground, and cat5 communications cable from the sound bar housing for
the first panel column. Note that only the first Column on the far left will have the 2 pin
connection. Continue to gently pull the remaining red, black, and cat5 communications
cables for the remaining columns.

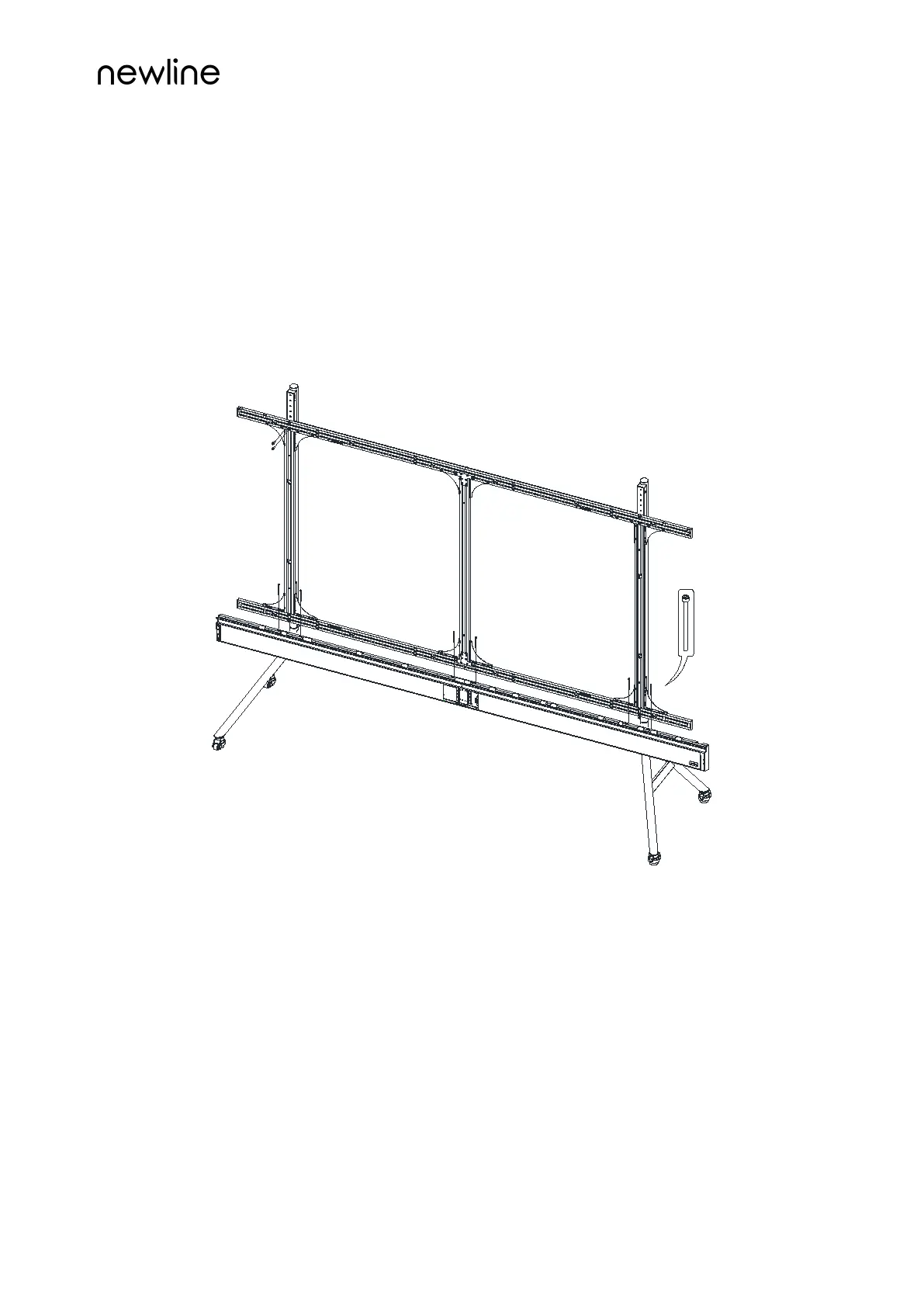

4). Attach the sound bar to the assembled support structure. Holding the soundbar to the
lower beam, make sure that the pulled cables are not pinched and are accessible before
tightening the screws that connect the soundbar to the lower beam.
A8(6x)
2.3.3 Cabinet installation
1. LED cabinet frame installation
1). Open the box that contains the Cabinets.
2). The cabinet positions from left to right are A,B,C,D,E. The cabinets in the box are labeled
in this manner. (Note: There are 4 columns for 120 inches(A to D), 5 columns for 150 inches(A
to E), and 6 columns for 180 inches(A to F).)
3). Remove the middle “C” cabinet from the box first. Notice that on the back of each
cabinet there are two stepped screws towards the top. The arrows on the front of the
cabinets should be pointing up.
