NC*FXX
NC*MXX
1
2
3
1
NC3FXX NC6MXX-B NC3FXX-EMC NC3MXX-EMC
Inside view Circumferential ground
shield contact
Neutrik
hologramm

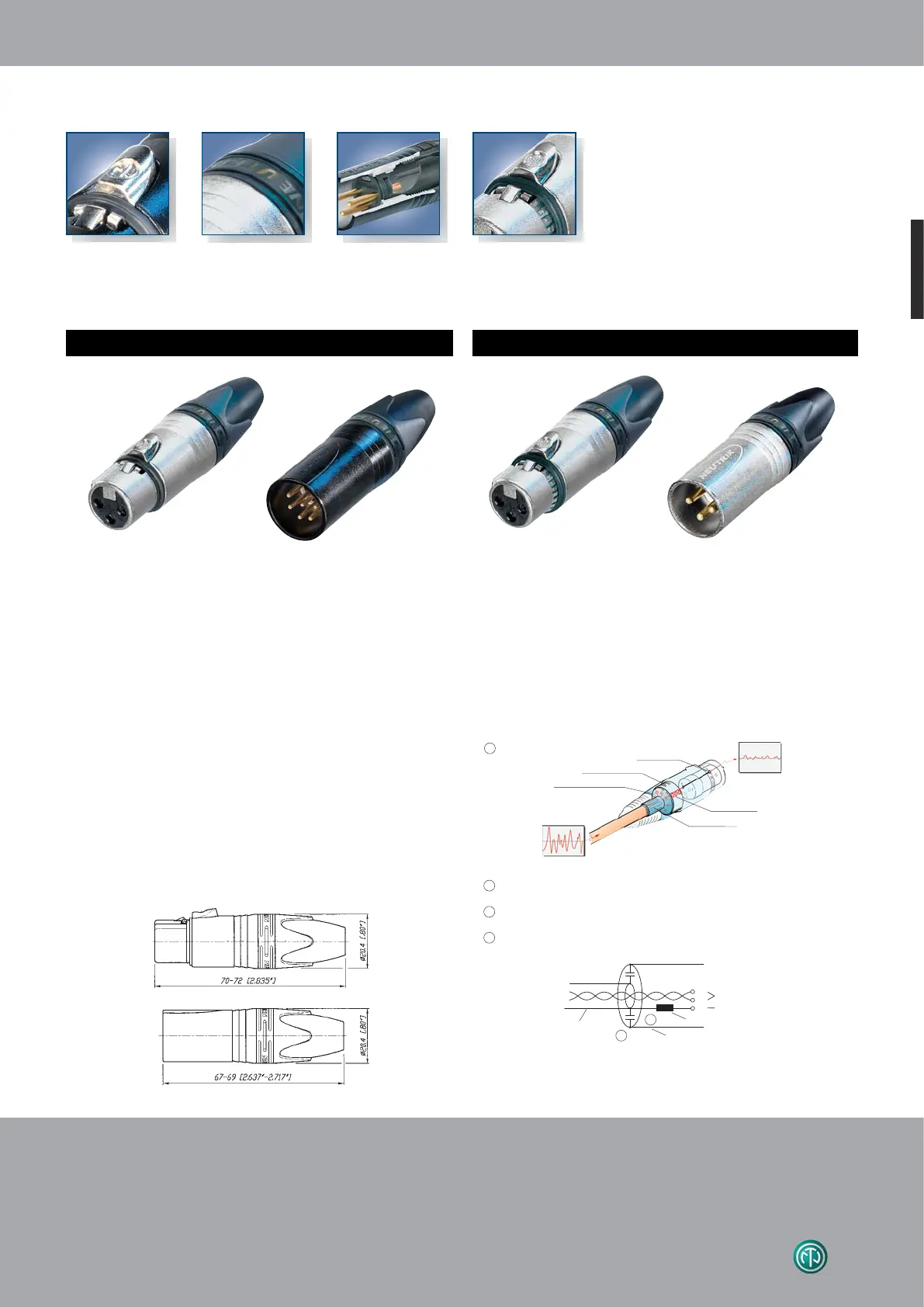

XLR Cable Connectors
L
The next generation of the worldwide accepted standard
L
Unique cage type female contact - increases conductivity
L
Female contact with “solder stop” for ease soldering
L
Male connector without locking “window” - more robust
housing, increases durability
L
Improved chuck type strain relief - increases retention force
and makes assembly easier and faster
L
New ground contact - excellent contact integrity between
chassis and cable connector
L
Customized branding using translucent ring
L
Sleek and ergonomic design - valuable and handy
L
Unique hologram – guarantees genuineness and protects
against counterfeits
L
Internal thread on shell is well protected against any
damage.
L
3-pole male / female XLR cable connector with integrated
capacitive shield to shell connection to avoid RF-interference
and LF-noise
L
360° shield contact on female connector ensures best
possible shielding and chassis contact
L
Patent pending
Ergonomic latch
design
Design guarantees a continuous RF-shield connection but avoids ground
loops (no LF-shield connection)
Circular capacitor enables low-inductive shield connection to connector
housing
Cable shield - PIN 1 connection includes EMI suppression bead (blocks
high frequencies)
XX Series EMC-XLR Series
* ... 3 - 7 contacts
Contact #1
Connector shell
Cable shield
Inductance
Annular capacitor
www.neutrik.com
2
3
