Bi-Amp Power "PA"
Speakon
®
Wiring
Wiring Suggestion
Positive signal on speaker pin "+" produces positive wave-
form from driver (moves cone outwardly)
"+" = In phase (high) "-" = Ground (out of phase, low)
Lower numbers for lower frequencies.
one NL4MP socket
left channel pins 1+/1-
right channel pins 2+/2-
three NL4MP sockets
"A" socket:
left channel pins 1+/1-
"B" socket:
right channel pins 1+/1-
"M" socket:
left channel pins 1+/1-
right channel pins 2+/2-
one NL4MP socket
low frequency pins 1+/1-
high frequency pins 2+/2-
one NL8MPR socket
low frequency pins 1+/1-
low mid frequency pins 2+/2-
high mid frequency pins 3+/3-
high frequency pins 4+/4-
NL4FC on amplifier end, four conductor
cable splits into two pairs with NL4FX on
each end
a two-conductor cable for each channel
with NL4FX on both ends
a special two-conductor cable, on both
ends wired to pin 1+/2+ of NL4FX
a four-conductor cable on both ends
wired to pins 1+/1-, 2+/2- of NL4FX
an eight-conductor cable wired on both
ends to pins 1+/1-, 2+/2-, 3+/3-, 4+/4-
of NL8FC
one NL4MP per speaker
left speaker pins 1+/1-
right speaker pins 2+/2-
NL4MP pins 1+ to speaker coil "+"
NL4MP pins 1- and 2+ to speaker coil "-"
NL4MP pin 1+ to speaker coil "+"
NL4MP pins 1- and 2+ to speaker coil "-"
one NL4MP socket
low frequency pins 1+/1-
high frequency pins 2+/2-
one NL8MPR socket
low frequency pins 1+/1-
low mid frequency pins 2+/2-
high mid frequency pins 3+/3-
high frequency pins 4+/4-

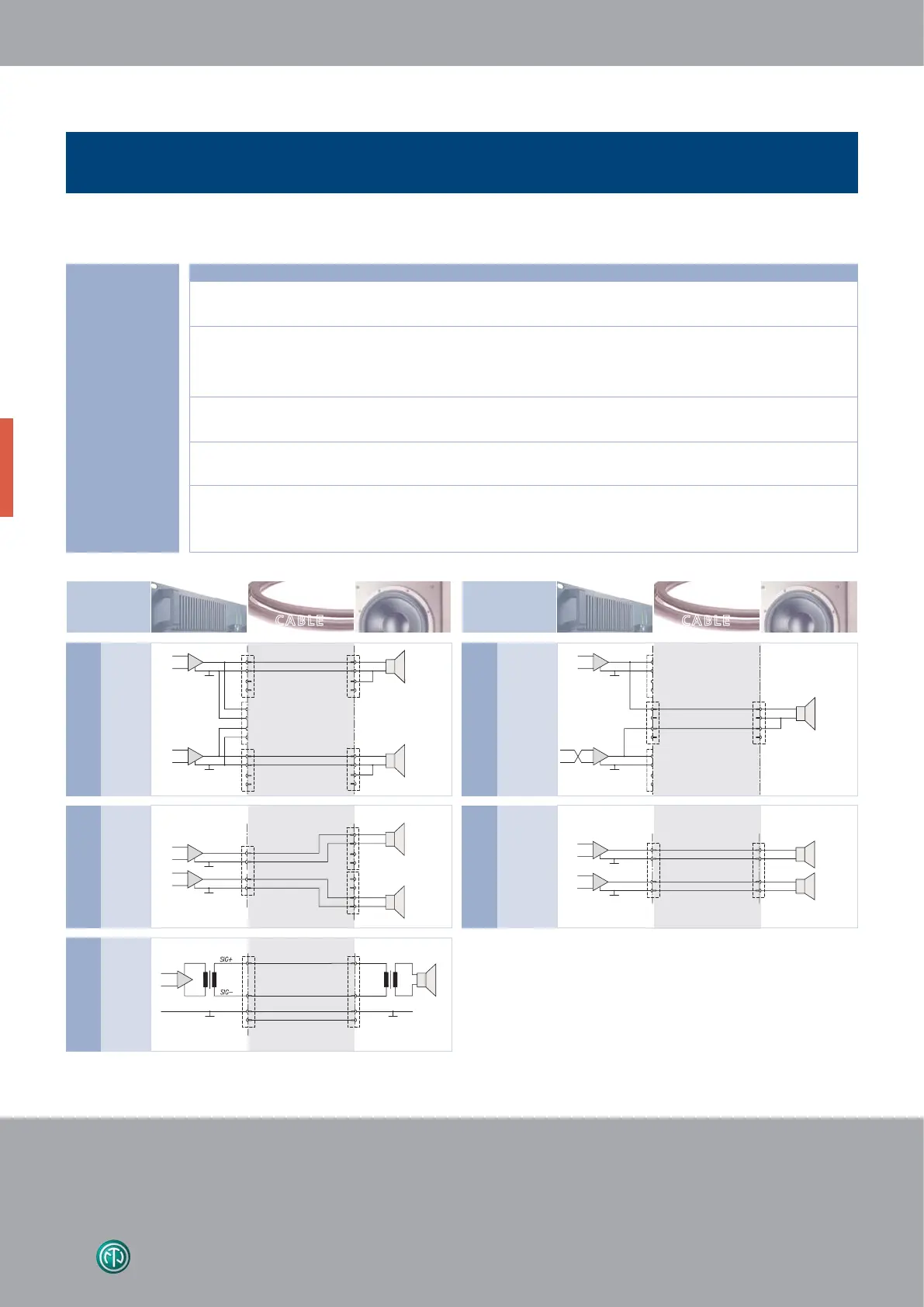

AMPLIFIER CABLE SPEAKER
Stereo
("HiFi")
POWER ("PA")
Standard
Bridged mono
Bi-Amp
4 Way System
AMPLIFIER CABLE SPEAKER AMPLIFIER CABLE SPEAKER
Power "PA"Stereo "HiFi"
"100V
application"
Bi-Amp Power "PA"
- 2 channel wiring
- Mono briged wiring
look for the logo
