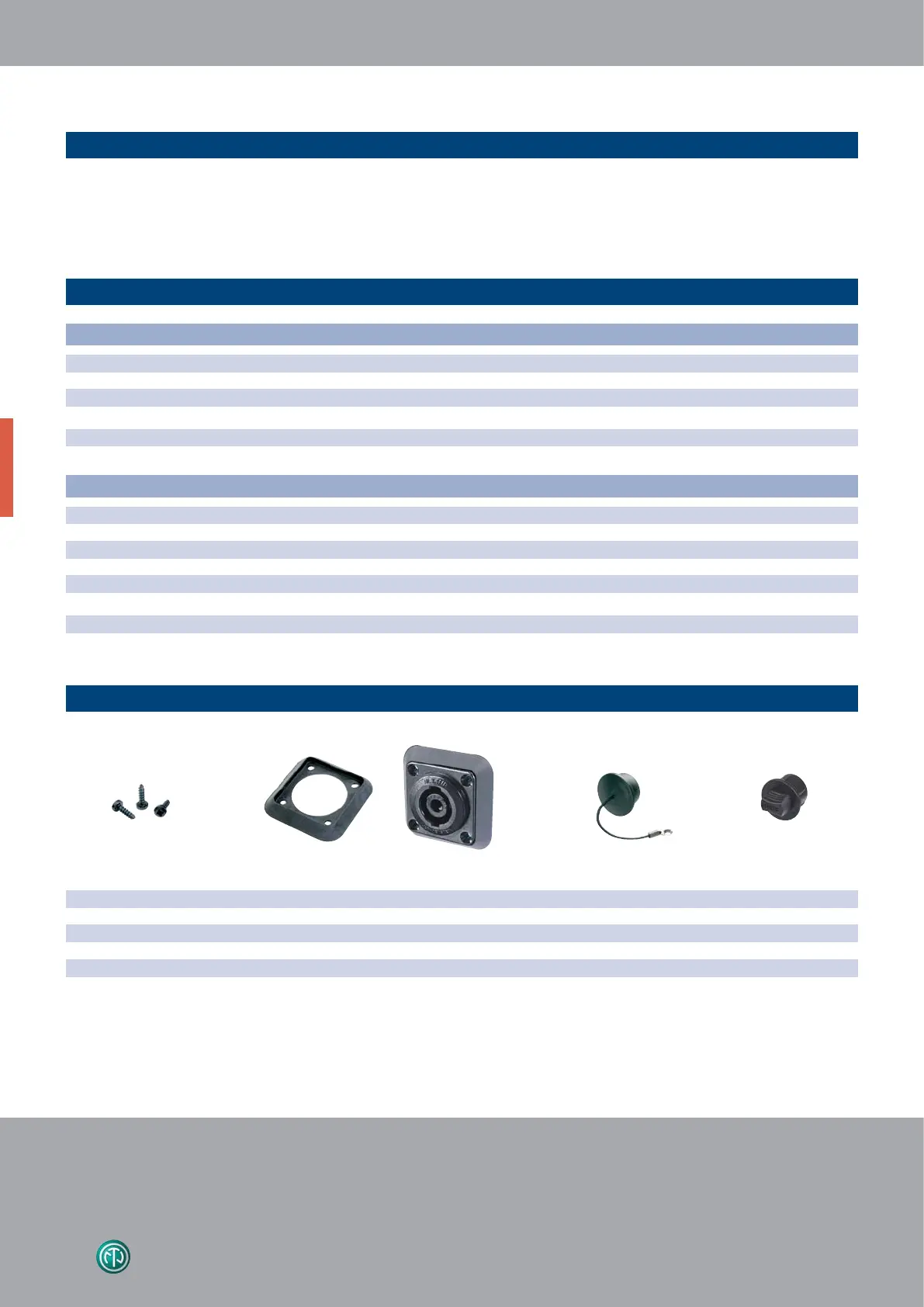

60
Speakon
®
Series
Ordering Information
Cable Connectors
NLT4FX 4 pole female cable connector,nickel metal housing, chuck and bushing
NLT4FX-BAG 4 pole female cable connector, black-chrome metal housing, chuck and bushing
NLT4MX 4 pole male cable connector, nickel metal housing, chuck and bushing
NLT4MX-BAG 4 pole male cable connector, black-chrome metal housing, chuck and bushing
NLT8FX 8 pole female cable connector, nickel metal housing, chuck and bushing
NLT8FX-BAG 8 pole female cable connector, black-chrome metal housing, chuck and bushing
Receptacles
NLT4FP 4 pole female chassis connector, nickel metal housing, solder contacts
NLT4FP-BAG 4 pole female chassis connector, black-chrome metal housing, solder contacts
NLT4MP 4 pole male chassis connector, nickel metal housing, 1/4" flat tabs*
NLT4MP-BAG 4 pole male chassis connector, black-chrome metal housing, 1/4" flat tabs*
NLT4MD-V 4 pole male chassis connector, nickel metal housing, PCB contacts
NLT8MP 8 pole male chassis connector, nickel metal housing, 1/4" flat tabs*
NLT8MP-BAG 8 pole male chassis connector, black-chrome metal housing, 1/4" flat tabs*
*: flat tabs to be used with FASTON
®
connectors or to solder the wire (FASTON
®
is a trademark of AMP Inc.)
Design Criteria
The new Speakon
®
STX Series is the next generation of 4 & 8
pole Speakon
®
connectors especially designed for loudspeaker
- amplifier applications in harsh and demanding environment
such as professional touring.
The STX Series features a metal housing which is extremely
rugged and durable; built-in gaskets make it weatherproof.
This new series offers beside the female cable connector and
male receptacle now also a 4 pole male cable and female chas-
sis connector.
Accessories
A-Screw-1-8 Black self tapping Plastite
®
screw 2.9 x 8 for rear panel mount
SCNLT Gasket for NLT4MP
(To make a cabinet with an Amphenol EP cutout airtight, the rubber scaling covers the entire hole.)
SCL Plastic sealing cover to protect the connectors against dust and moisture
NDL Dummy plug for 4 Pole chassis connector
A-Screw-1-8 SCNLT Example: SCNLT + NL4MP SCL NDL
