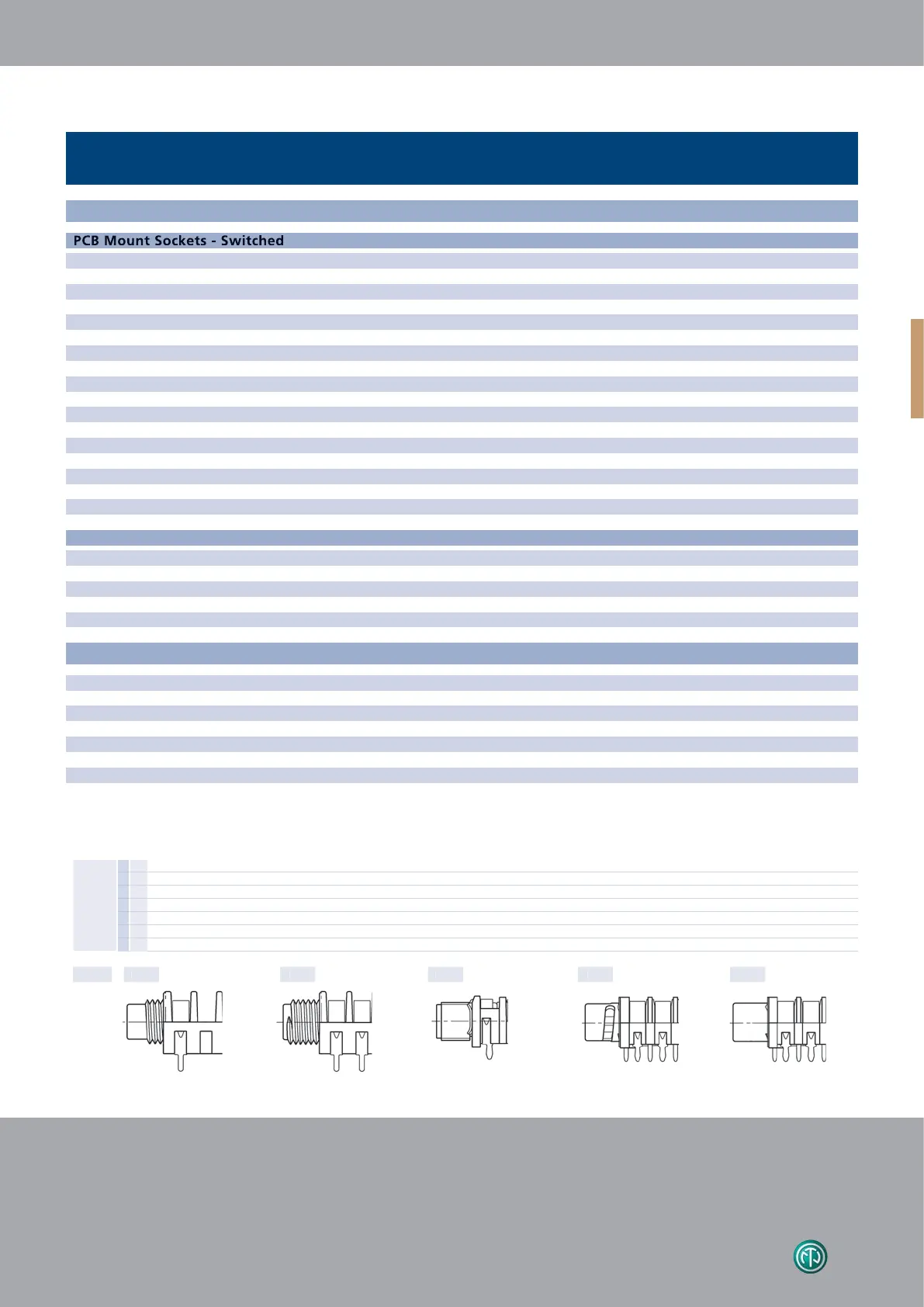

Ordering Information
Part Number Shell Contacts
Terminations Standards Remarks
Compatibility
NRJ3HF-1 Black/Plastic Silver Horizontal PCB soldering IEC 60603-11/EIA RS 453 Mono, full threaded nose, chassis ground contact
NRJ4HF
zz z z
Mono, full threaded nose
NRJ4HF-1
zz z z
Mono, full threaded nose, chassis ground contact
NRJ6HF
zz z z
Stereo, full threaded nose
NRJ6HF-1
zz z z
Stereo, full threaded nose, chassis ground contact
NRJ4HH
zz z z
Mono, half threaded nose
NRJ4HH-1
zz z z
Mono, half threaded nose, chassis ground contact
NRJ6HH
zz z z
Stereo, half threaded nose
NRJ6HH-1
zz z z
Stereo, half threaded nose, chassis ground contact
NRJ6HF-AU
z
Gold
zz
Stereo, full threaded nose, gold plated contacts
NRJ6HF-1-AU
z
Gold
zz
Stereo, full threaded nose, chassis ground contact,
gold plated contacts
NRJ6HH-AU
z
Gold
zz
Stereo, half threaded nose, gold plated contacts
NRJ-NUT-B
z
- - - Hexagonal black plastic nut
NRJ-NUT-R Red/Plastic - - - Hexagonal red plastic nut
NRJ-NUT-MK Metal/Ni plated - - - Metal ring nut, knurled
NRJ-NUT-MS Metal/Ni plated - - - Metal ring nut
PCB Mount Sockets - Switched with Metal Nose
NRJ4HM-1 Black/Plastic Silver Horizontal PCB soldering IEC 60603-11/EIA RS 453 Mono, metal threaded nose
NRJ4HM-1-AU
z
Gold
zz
Mono, metal threaded nose, gold plated contacts
NRJ6HM-1
z
Silver
zz
Stereo, metal threaded nose
NRJ6HM-1-AU
z
Gold
zz
Stereo, metal threaded nose, gold plated contacts
NRJ-NUT-MN Metal - - - Hexogonal metal nut (for metal nose jack only)
NSJ8HL
Polyamid PA 6.6 GR Silver
Horizontal PCB soldering IEC 60603-11/EIA RS 453 Mono, quick fix nose
NSJ12HL
zz z z
Stereo, quick fix nose
NSJ8HC
zz z z
Mono, full nose
NSJ12HC
zz z z
Stereo, full nose
NSJ12HF-1
zz z z
Full threaded nose
NSJ12HH-1
zz z z
Half threaded nose
NSJ-NUT-B Black/Plastic - - - Quick fix nut
All Slim jacks are for PCB mount only.
Mounting nuts must be ordered separately, except for Stacking Jack type NSJ8HL and NSJ12HL.
Ordering Key:
NRJ*H NEUTRIK Jack Horizontal * number of contacts:
H half threaded nose
2 mono unswitched
F full threaded nose 4 mono switched
L quick fix nose 6 stereo switched
M metall threaded nose 8 mono stacking jack
C plane nose 12 stereo stacking jack
-1 chassis ground contact
Nose:
-H
-F
-M
-L
-C
Slim Jack
Stacking Jack
