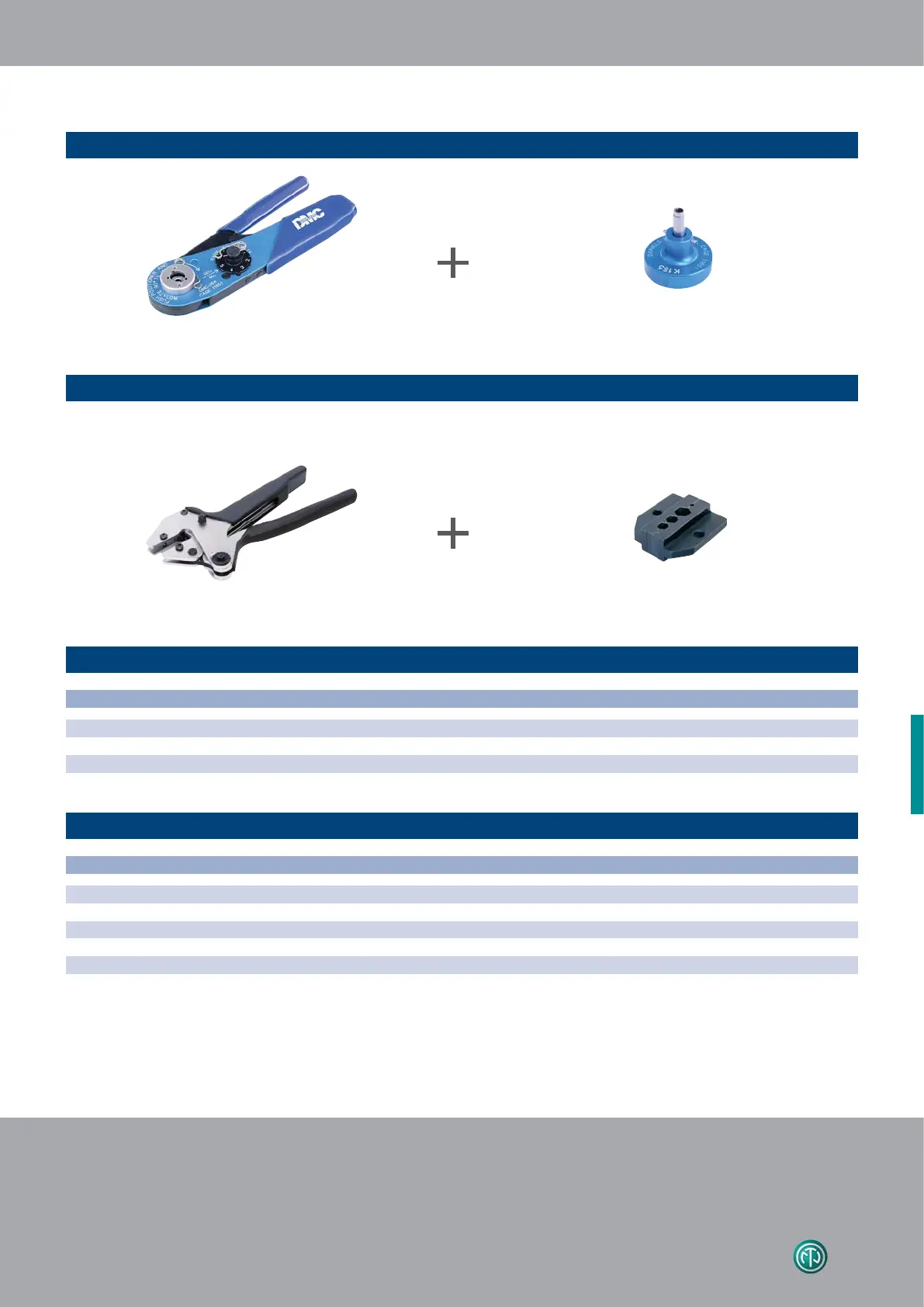

MPOS-*
Assembly Tools
* DIE-R-BNC-PJ or PS also possible
DMC crimptool AFM8
acc. M22520/2-01
Modified DMC positioner (K155)
Contact positioner helds contact in
position when crimping.
Crimptool HX-R-BNC DIE-R-BNC-*
Neutrik
®
HEX crimptool Neutrik
®
DIE's for various HEX sizes.
Crimptool HX-CONTACT
Neutricon
®
- Ordering Information Assembly Tools
SR8A Strain relief 3 - 3.8 mm HX-R-BNC DIE-R-BNC-PJ 5.41 mm / IEC 803
SR8B Strain relief 6 - 7 mm HX-R-BNC DIE-R-BNC-PS 7.01 mm / IEC 803
BC1 Female crimp contact AWG 22 -26 HX-CONTACT MPOS-BC1 No. 5 / M22520/2-01
PC1 Male crimp contact AWG 22 -26 HX-CONTACT MPOS-PC1 No. 5 / M22520/2-01
Cable O.D. / Wire Crimptool Die/Positioner HEX-Size/Standard
MiniCon
®
- Ordering Information Assembly Tools
MSRC Crimp ferrule only 4.5 - 6 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MSRC Crimp ferrule & reduction ferrule 1 3.3 - 4.4 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MSRC Crimp ferrule & reduction ferrule 2 2.5 - 3.2 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MBC Female crimp contact 24 AWG/0.22 mm
2
HX-CONTACT MPOS-MBC No. 5 / M22520/2-01
MPC Male crimp contact 24 AWG/0.22 mm
2
HX-CONTACT MPOS-MPC No. 5 / M22520/2-01
Cable O.D. / Wire Crimptool Die/Positioner HEX-Size/Standard
Contact and connector assembly
Crimptool
www.neutrik.com
