• Never leave an assembled pneumatic system unattended by
a person authorised to operate it. Do not allow children near
the assembled pneumatic system.
• The supply of compressed air, at high pressure, may cause
the tool to eject in the opposite direction to that of the coating
material. Special care should be taken as the recoil forces can,
under certain conditions, cause multiple injuries.
• It is advisable to try the tool before starting work. It is
recommended that those working with the tool are properly
trained. This will significantly increase work safety.
• Follow the recommendations of the manufacturer of the
coating materials and use them in accordance with the given
personal, fire and environmental protection rules. Failure to
follow the recommendations of the coating material
manufacturer can lead to serious injury.
• In order to ascertain compatibility with the coating materials
used, a list of the materials used in the construction of the tool
will be available on request.
• When working with compressed air, energy builds up
throughout the system. Caution must be exercised, when
working and when taking breaks, to avoid the danger that the
accumulated compressed air energy can cause.
• Always use hoses with electrostatic discharge.
• Never plug the nozzle outlets with your fingers.
• Never modify the equipment on your own. Check that all parts
are in working order and replace only with new, original parts
if worn out.
• In the event of an accident, disconnect the equipment from the
power source. Follow general health and safety rules at the
workplace.
• Never aim the coating material jet at a source of heat or fire,
as this may cause a fire Safety instructions for working with
sprayed substances
Caution: read this manual carefully before use and keep for
future reference.

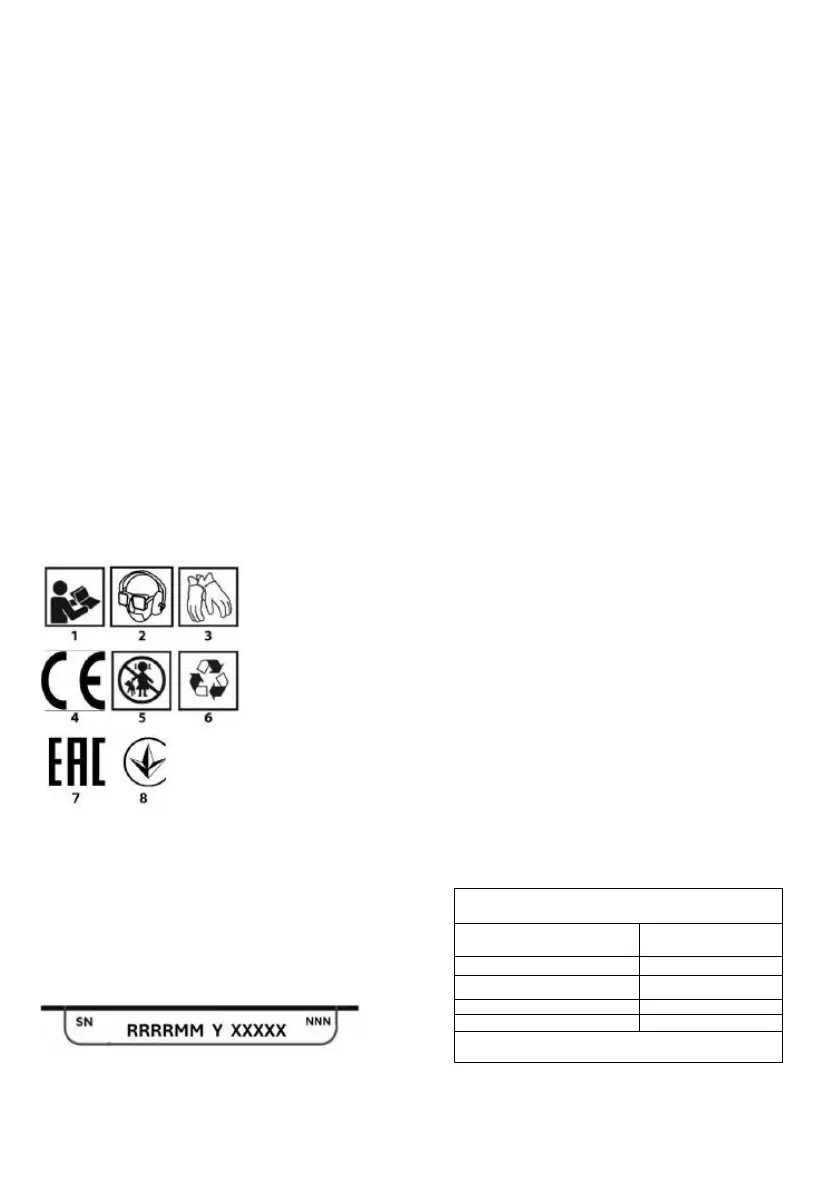

EXPLANATION OF THE USED PICTOGRAMS
1.Read the operating instructions, observe the warnings and
safety conditions contained therein!
2.Use personal protective equipment (safety goggles, ear
protection, dust mask.).
3.Use protective gloves.
4.The product complies with the EU directive
5.Keep children away from the tools.
6.Recycling
7.EAC certification mark.
8.Ukrainian market certification mark.
MARKINGS ON THE DEVICE
YYYY -Year of production
MM -month of production
Y -additional mark
XXXXX -serial number
NNN -additional marking
FIGURE DESCRIPTION Fig. A
1.Nozzle
2.Hanging bracket
3.Coupling for attaching sand hose
4.Air Trigger
5.GW air connection
6.Handle
INSTALLATION DIAGRAM Fig. B
1.Pneumatic tool
2.Quick coupling
3.Air hose
4.Oiler
5.Pressure regulator
6.Filter/dehydrator
7.Shut-off valve
8.Compressor
APPLICATION
Gun for sandblasting parts in full or with stencils with abrasive
materials such as sand, electrocorundum, glass beads, etc.
USE
Operation
• Firmly and securely tighten the nozzle (1) to the gun.
• Connect the quick couplings (5) to the compressed air system.
• Check the tightness and security of the compressed air supply
system connections.
• Blow out the air supply hose before connecting it to the system.
After connecting the gun to the system, check its operation by
pressing the trigger (4).
• A continuous stream of air should come out of the nozzle (1).
• Screw the quick coupling (3) into the gun and then connect the
hose with the metal tube and immerse it in the sand container.
• Ensure that the gun has been properly cleaned and
maintained before use. Connect the gun to the compressor
with the system where the air dryer is located. Point the nozzle
outlet (1) towards the surface to be cleaned and press the
trigger (4).
• When working with the gun, select the appropriate working
pressure according to the Technical Data. Place the metal tube
at the bottom of the sand container so that it is in an upright
position. All preparation, maintenance and repair operations
must be carried out when the gun is disconnected from the
equipment supplying the gun with air When working with the
gun, large amounts of dust may be generated, so personal
protective equipment such as safety goggles and masks must
be worn without fail.
CLEANING AND MAINTENANCE
• After finishing work, disconnect the gun from the compressed
air system and clean the gun housing with a soft cloth.
• Blow the gun nozzle (1) for a few seconds with clean air.
• After cleaning the gun, apply a small amount of lubricant to the
moving parts of the seals.
RATING DATA
Maintenance gun 14-722
Parameter
Value
Nozzle diameter
8 mm
Maximum operating pressure
120 psi/8 bar
Air connection diameter
¼"
Weight
0.27kg
14-722 indicates both the type and the machine
designation
