t
848 Airport Road, Walla Walla, Washington 99362 U.S.A.
Tel: +1 509.525.7660 / Fax: +1 509.525.7907
nelsonirrigation.com
57
Antenna: The antenna for the TD200 controller is mounted onto a high location that is available.
Many installations use an existing power pole. When power wires are near by the antenna cable
should be place as far away as possible. Refer to Appendix A for details about the antenna kits.
Tools and materials suggested for antenna installation
Be sure to have the following tools available before starting the installation. Since the coax cable
must be routed from the antenna to the TD200 which may be inside the building the proper drill sizes
are necessary.
Pole, antenna support Hand Drill, 1/2” drive
Open end Wrenches Screwdriver, Flat blade
Screwdriver, Phillips Head Wire Cutter
Wire Stripper Zip ties
Copper ground wire Grounding rod
Lag screws, 5/16” x 3 1/2” (if wood pole) Electrical Tape
Seal the connector: Water and corrosion are the enemies of radio signals. The solution is to seal
all the antenna connections using the #11998 coax-seal tape included in each antenna kit.
Step 1 Wrap the coax-seal tape around the entire connector tting and cable making sure all joints
are covered.
Step 2 With ngers form a smooth surface seal. Press the tape around the tting making sure all the
air is out and the joints are covered and sealed.
Steps to seal the connectors

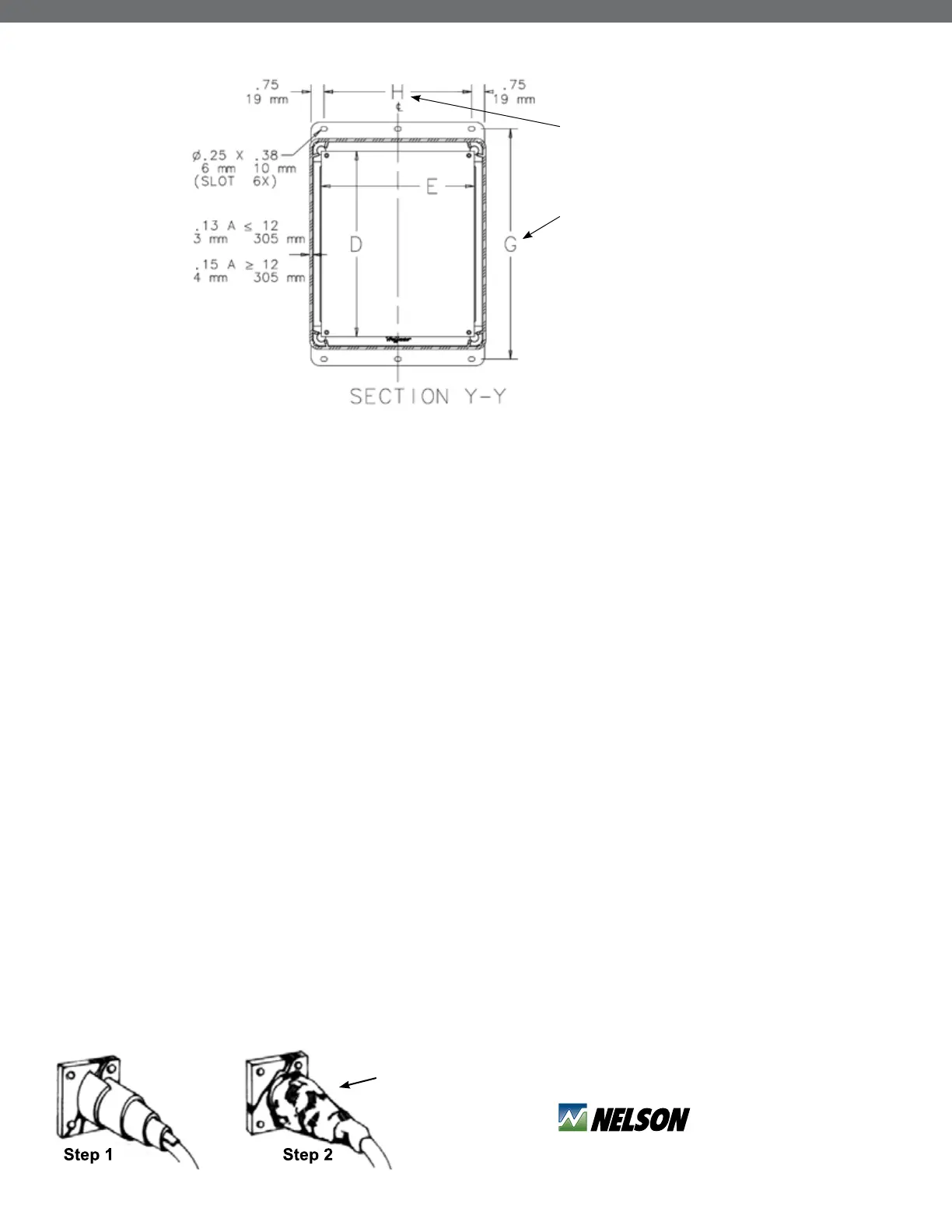

TD200 and Contact-TWIG
box dimensions:
Mounting hole spacing
H=6.56”,
G=11.38”
Seal tape #11998
