Stay within signal range: A common problem is to space the radios to far apart and not consider
obstructions that block the signal. Be sure to check the range. If the distance exceeds the range
then use a repeater to make the communication reliable.

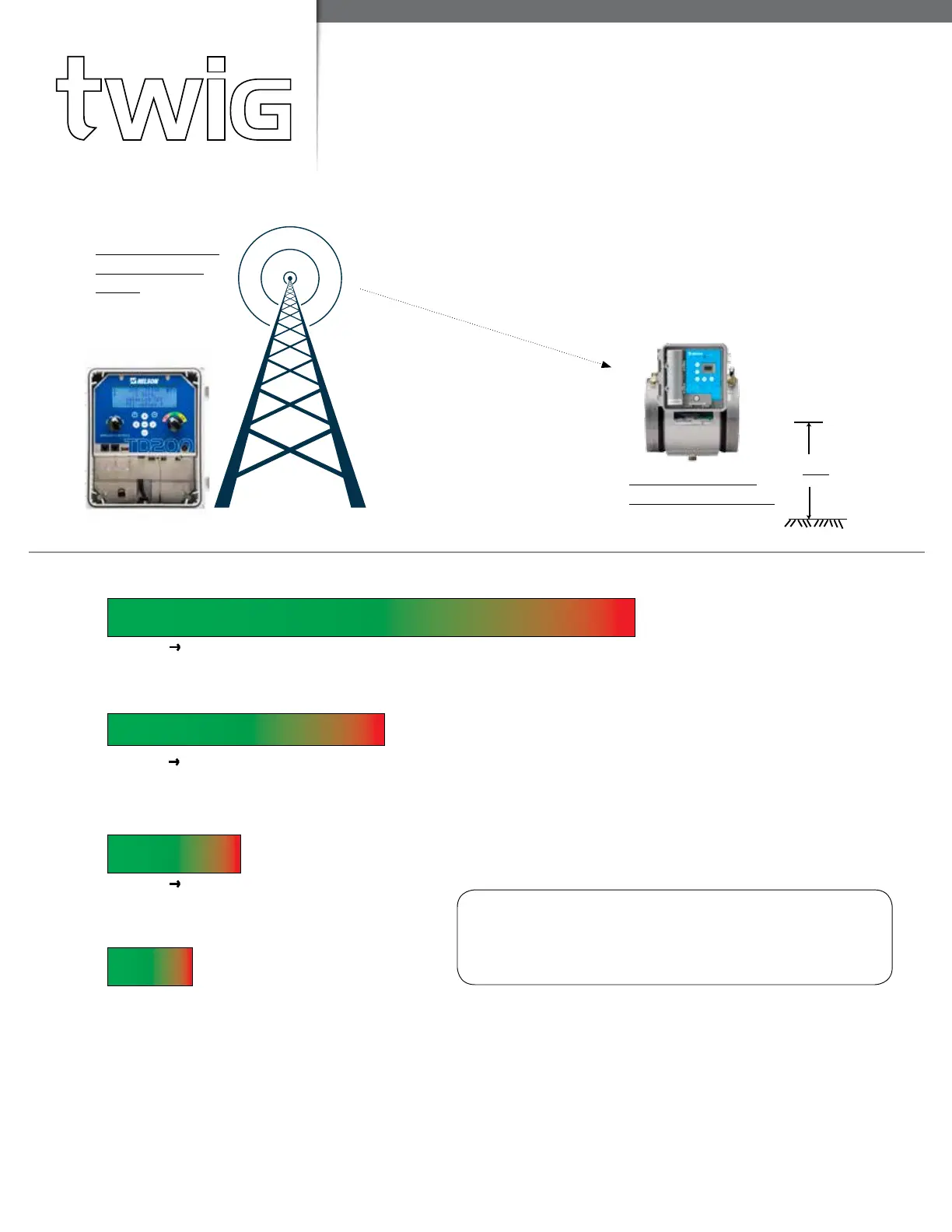

BAR GRAPH GUIDE FOR SPACING TD200 DISTANCE TO TWIGS IN VARIOUS CROPS
TWIG HEIGHT ADJUSTMENT TO BAR GRAPH DISTANCE
On the ground surface 40% Example: Spacing limit to 40% of graph
At 18” above ground 100% of graph distance
At 6 ft. above ground 125%
At 15 ft. above ground 150% Example: Use graph distance x 1.5
ADJUSTMENT FACTORS
1000 5000
DIRECT LINE OF SIGHT
LOW GROWING ROW CROP
TRADITIONAL TREE SPACED ORCHARD
HIGH DENSITY TRELLIS ORCHARD TREE & VINE
TWIG SPACING (FT)
40002000 3000
1000
TWIG SPACING (FT)
2000
1000
TWIG SPACING (FT)
TWIG SPACING (FT)
700
6000
3000
1500
TD200 controller
antenna 15 ft.
height
TWIG in the eld
located 18 in. height
18”
