English - 29
(3) If multiple LED controllers are used, select the number of the connected LED controllers.
Since only one controller is used in this example, it is not necessary to set “Sending Card Number” (e).

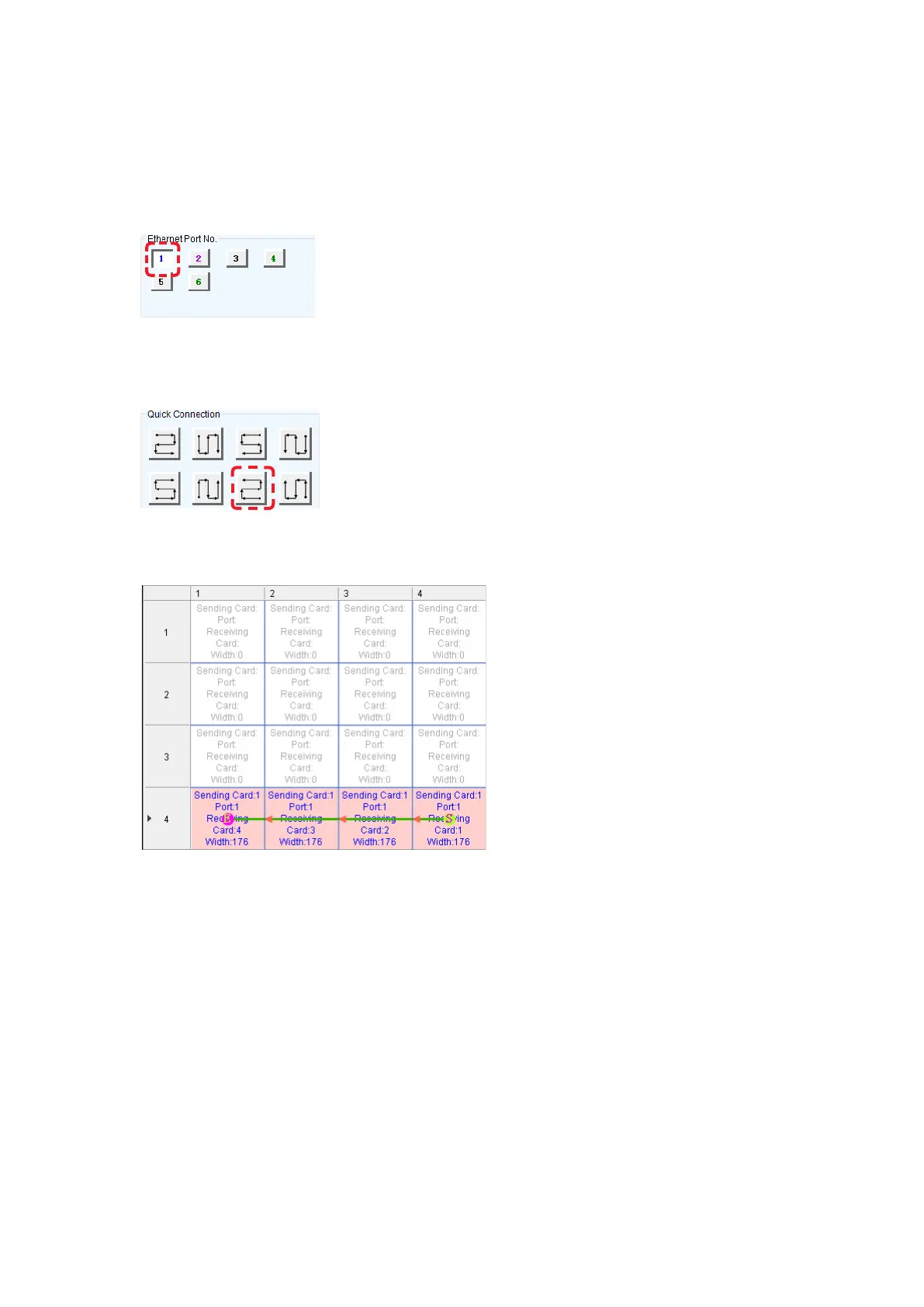

(4) Congure the connection.
The system is connected to port 1 of the LED controller.
Select “1” (port 1) under “Ethernet Port No.” (f).
Click (select) the connection pattern under “Quick Connection” (i). Since in the example, the modules
are connected from the bottom right to the bottom left, select the second pattern at the bottom from
the right.
Select the cabinet at the bottom right with the mouse, and then select the other cabinets toward the
left edge as shown in the gure below.
