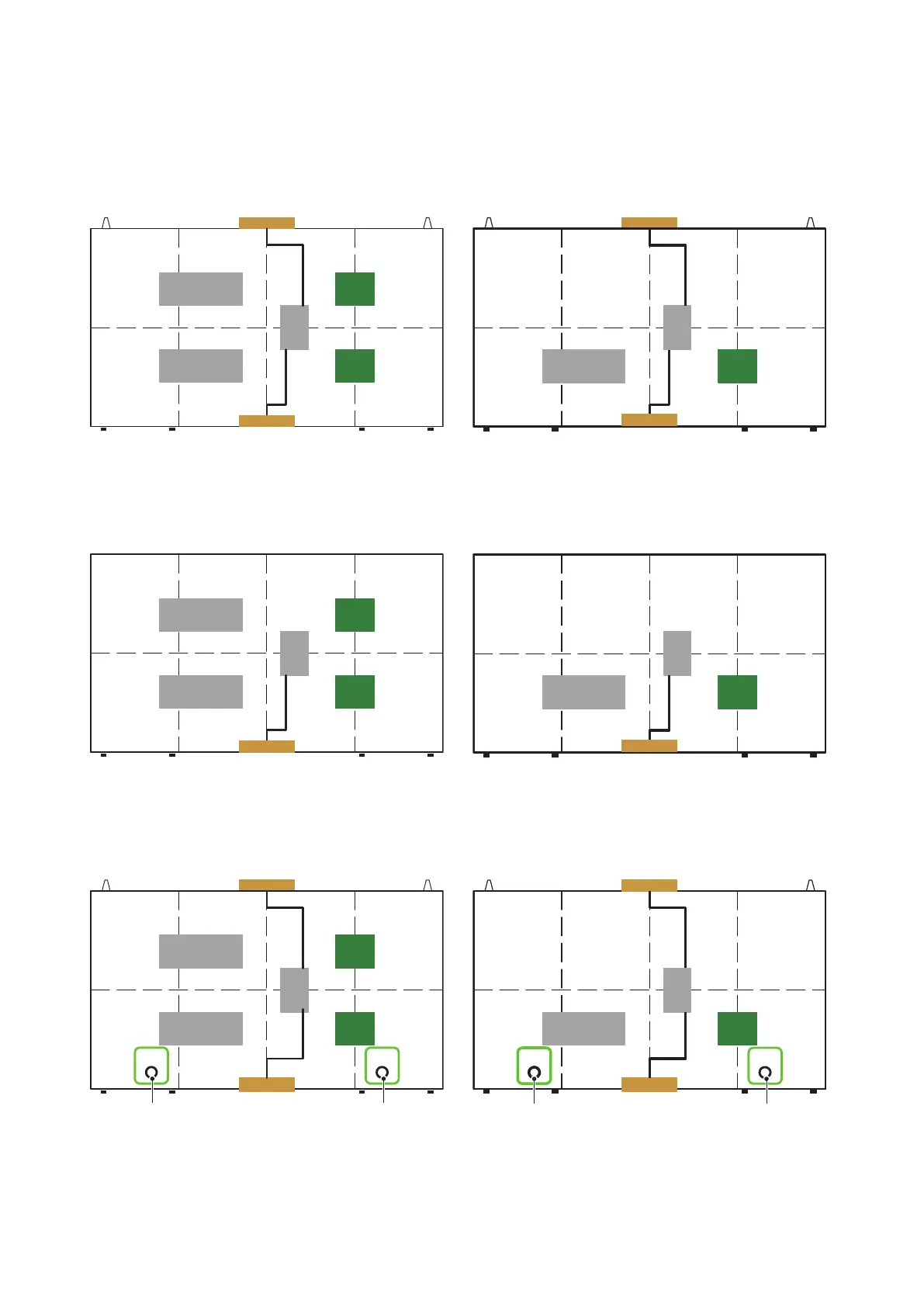

There are three types of cabinets.
(1) When using other than the top (Type A)
The connectors are equipped on the top and bottom sides. There are guide pins on the top.
FA series FE series
PS 2
PS 2
RV
Slave
RV
Master
Power
hub
board
Power unit
Receiving
card
Power
hub
board
(2) When used at the top (Type B)
There are no connectors on the top side. There are no guide pins.
FA series FE series
PS 2
PS 2
RV
Slave
RV
Master
Power
hub
board
Power unit
Receiving
card
Power
hub
board
(3) When connecting a LAN cable from the middle (Type A’)
There is a hole for LAN cable connection on the rear.
FA series FE series
Data Power
PS 2
PS 2
RV
Slave
RV
Master
Power
hub
board
Hole for LAN cable
connection
Hole for power code
connection
Power
Data
Power unit
Receiving
card
Power
hub
board
Hole for LAN cable
connection
Hole for power code
connection
