Module connection settings
Start NovaLCT and log in with the administrator privileges.

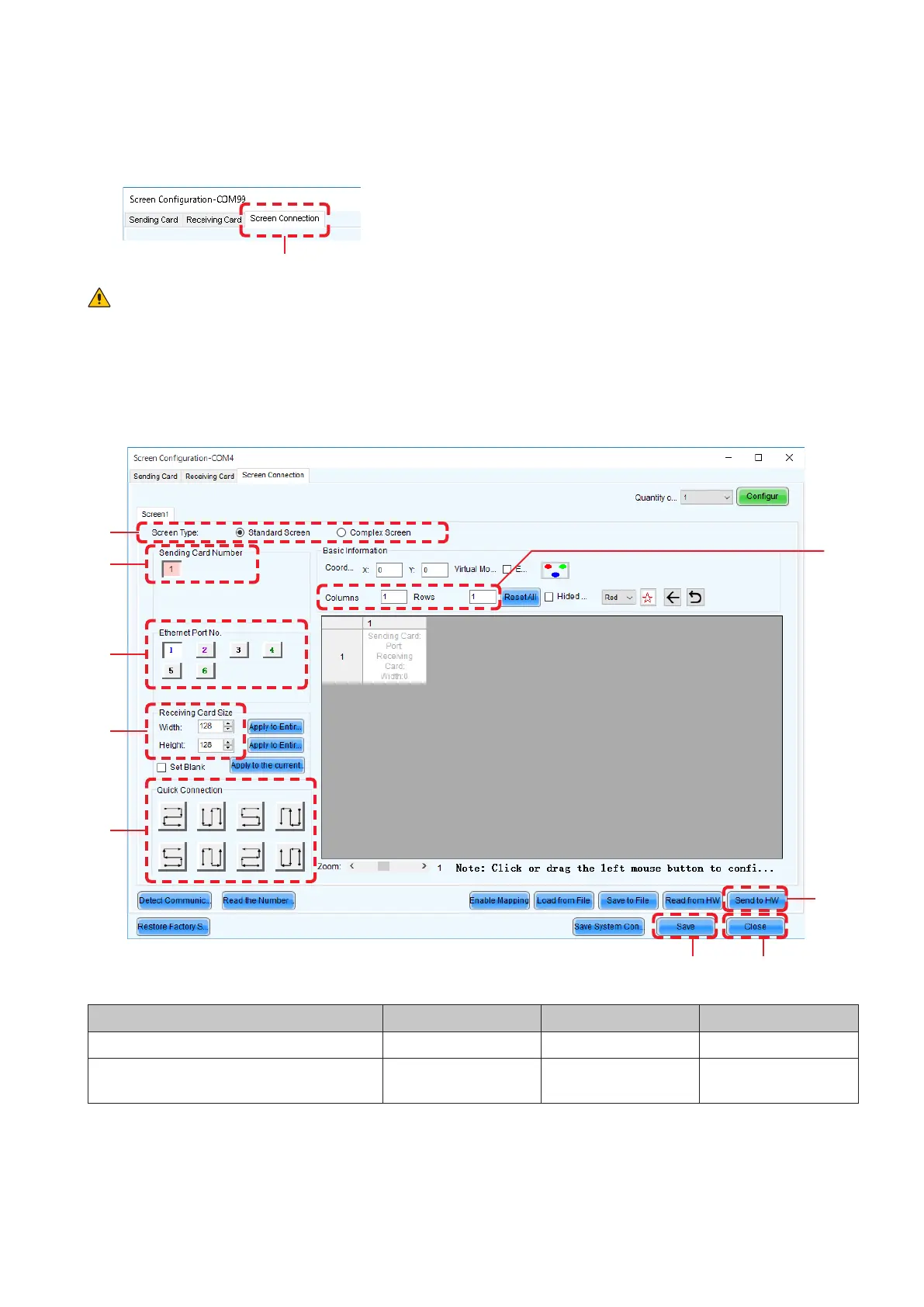

In the Screen Conguration screen that is displayed, select the “Screen Connection” tab (a).
(a)
CAUTION
Do not change the settings in the “Receiving Card” tab.
Otherwise, the video may not be displayed properly.
Select “Standard Screen” under “Screen Type” (b).
The settings in “Sending Card Number” (c) and “Ethernet Port No.” (d) vary depending on the connected LED
controller.
(i) (j)
(h)
(b)
(c)
(f)
(d)
(e)
(g)
Enter the value in the table below under “Receiving Card Size” (e).
Product name LED-FC009i LED-FC012i LED-FC015i
Pixel pitch 0.9 mm 1.2 mm 1.5 mm
Number of displayed pixels
(resolution/module)
Width 640
Height 360
Width 480
Height 270
Width 384
Height 216
[Columns/Rows] Enter the number of installed screens under “Columns/Rows” (f) (the number of vertically
installed screens in Columns, and the number of horizontally installed screens in Rows).
