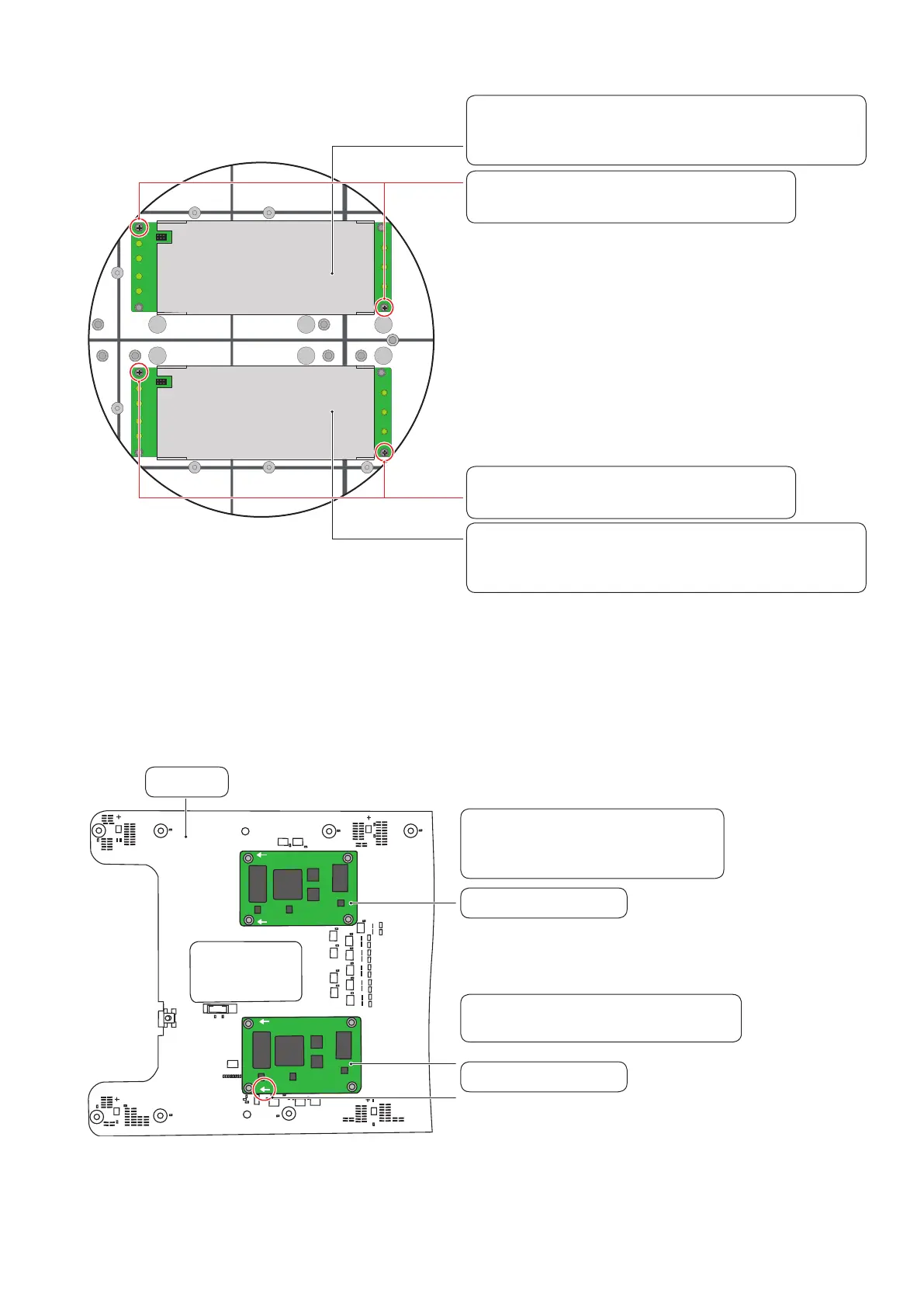

Replace the power unit 2 (slave).
Use the screws you have removed to secure the power unit.
Tightening torque: 3 ± 0.5 kgf•cm
Replace the power unit 1 (master).
Use the screws you have removed to secure the power unit.
Tightening torque: 3 ± 0.5 kgf•cm
Remove the two screws securing the power unit.
Use a Phillips screwdriver (No. 2).
Remove the two screws securing the power unit.
Use a Phillips screwdriver (No. 2).
The FE series power supply unit is only on the bottom side.
Replacing the receiving card
Remove the receiving card from the hub board.
Remove the four screws securing the receiving card, and then remove the receiving card from the hub board.
Install the receiving card so that the
arrow is orientated to the left.
Hub board
Receiving card (slave)
Receiving card (master)
Remove the four screws.
Use a Phillips screwdriver (No. 1).
Tightening torque: 3 ± 0.5 kgf•cm
The FE series receiving card is (master) only.
