When the cabinets’ surfaces are aligned, securely tighten the cabinets of the rst row to the power bar, the
cabinets of the rst row together, as well as the cabinets of the rst row with the cabinets of the second row.
Remove the Adjustment plates after the screws have been tightened.
Follow the same procedure to install the next row of cabinets and align their surfaces.
Connect the power cord and the LAN cable from the opening at the back of the power bar.

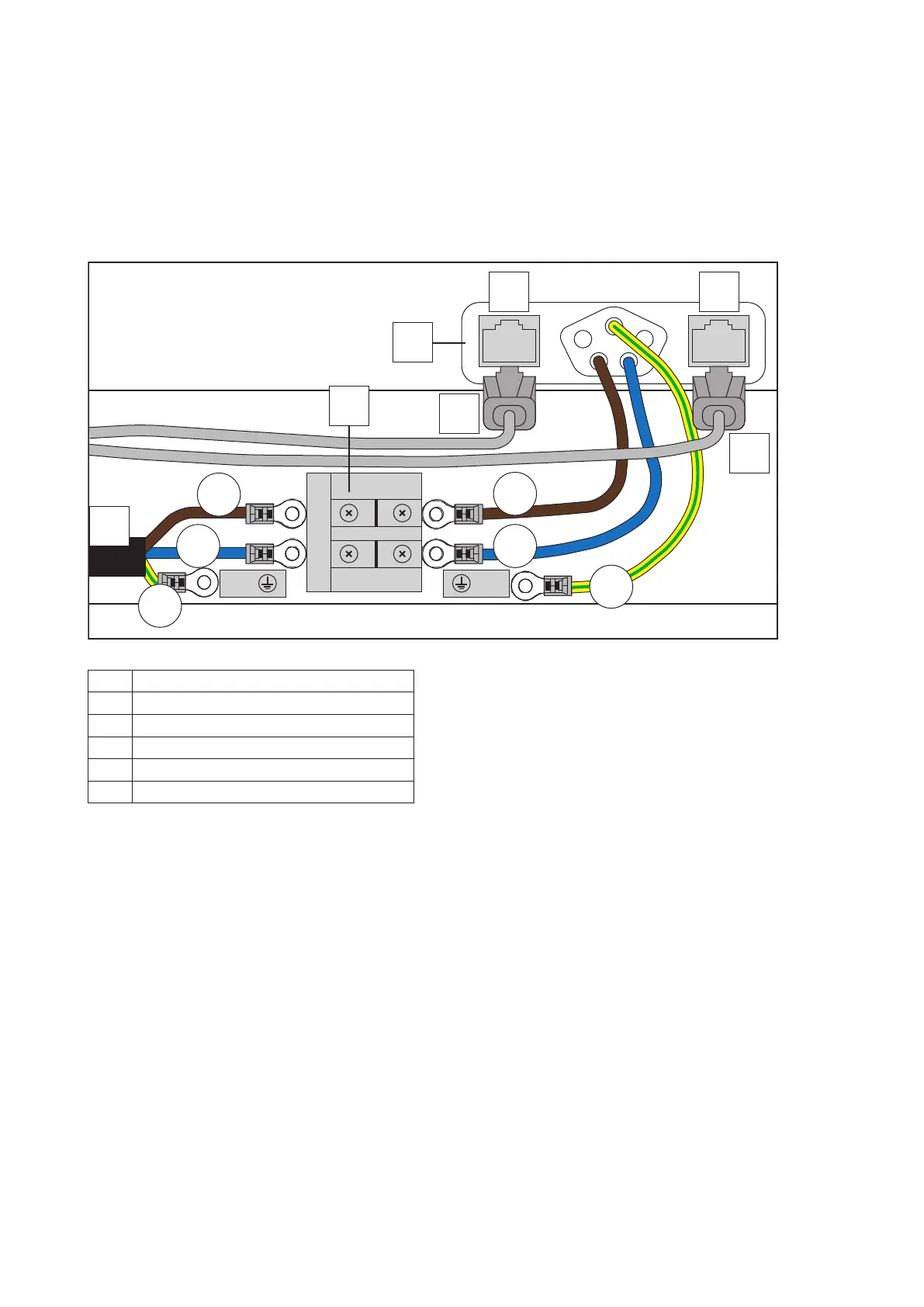

How to connect the power cord (FA series)
C2
C1
C
B
D2
D1
A
L
N
PE
L
N
PE
A External power input
B Terminal in Power bar
C1 Ethernet port main data
C2 Ethernet port backup data
D1 Data cable main
D2 Data cable backup
Connect the D1 main data cable to the left LAN port (C1 Ethernet port main data) and the D2 backup data
cable to the right LAN port (C2 LAN Ethernet port backup data) of the power bar.
