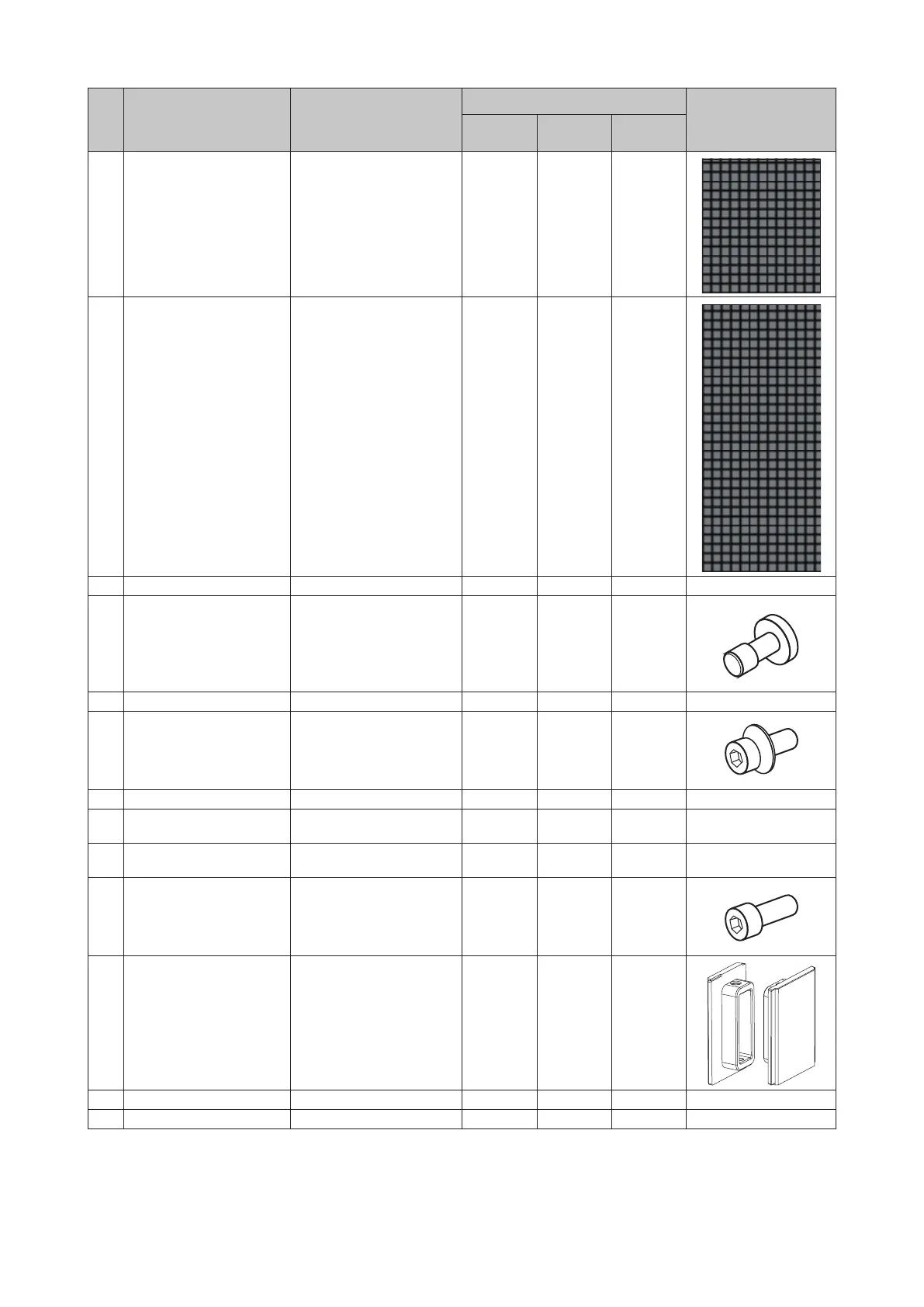

English - 12
No.
Parts Specications
Quantity
8 x 8 frame set
(1.2 mm pitch)
8 x 8 frame set
(2.5 mm pitch)
8 x 8 frame set
(3.8 mm pitch)
Pixel card
pitch 1.2, 1.5, 1.9, 3.8
152 x 171 mm 512 – 512
Pixel card
pitch 2.5
152 x 342 mm – 256 –
Cabinet 608 x 342 mm 64 64 64
Cabinet hanger pin Head diameter 15mm,
thickness 5 mm,
M8 external dental pattern,
axis length 17 mm,
stainless steel color
113
(108+5*
1
)
113
(108+5*
1
)
113
(108+5*
1
)
1 Power bar cover plate 2 2 2
2 Power bar screw
(M8×20)
Hexagon socket head
screw
29
(24+5*
1
)
29
(24+5*
1
)
29
(24+5*
1
)
3 Power bar 2 2 2
4 Power bar connecting
part
1 1 1
5 Screw for Power bar
connecting
17
(12+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
6 Screw for corner frame
bottom
(M6×12)
Hexagon socket head
screw
7
(2+5*
1
)
7
(2+5*
1
)
7
(2+5*
1
)
7 Corner frame bottom
(left, right)
2 2 2
8 Overframe (left, right) 2 2 2
9 Mounting bar 6 6 6
*1: Spare parts
