3.4 DMX Control
Refer to the DMX Charts and control the fixture via DMX/RDM console. (For detailed operation, please refer to the
DMX/RDM console operation manual.)
▲ Download the latest technical data from www.nanlite.com.
3.3 DMX Connection
ln DMX control mode, the DMX output of the last light fixture should be connected with a DMX terminator (not included).
The terminator is connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3 (As shown below). This prevents
interference caused by DMX signals in the transmitting process.

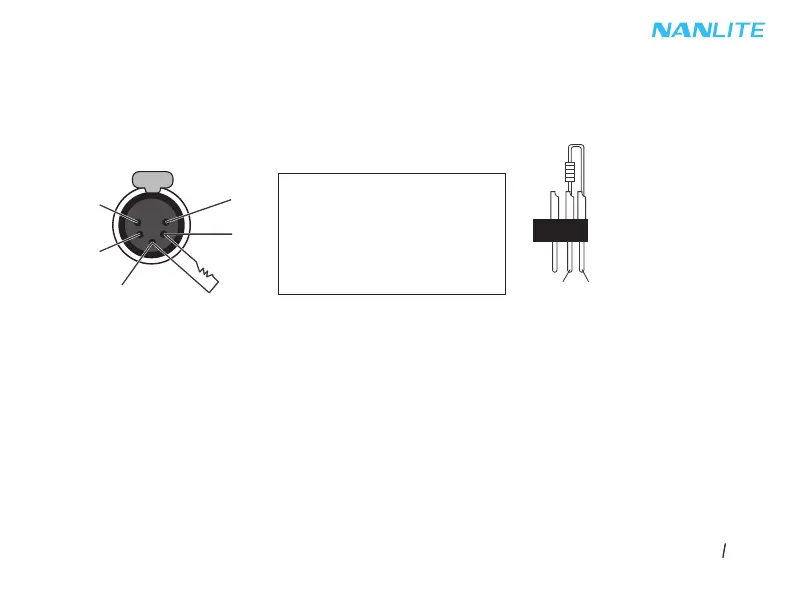

DMX Terminator Connection
Connect a 120Ω(OHM) resistor across
Pin 2 and Pin 3 in an XLR plug
and insert into the DMX OUT socket
on the last fixture.
PIN 2 PIN 3
120Ω
1
2
3
5
4
