EN - 10
shown below.
HOB
Minimum
42 cm
Minimum
42 cm
Minimum
65 cm (with
hood)
Minimum 70
cm (without
hood)
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.
2.2
inStallation of the applianCeS

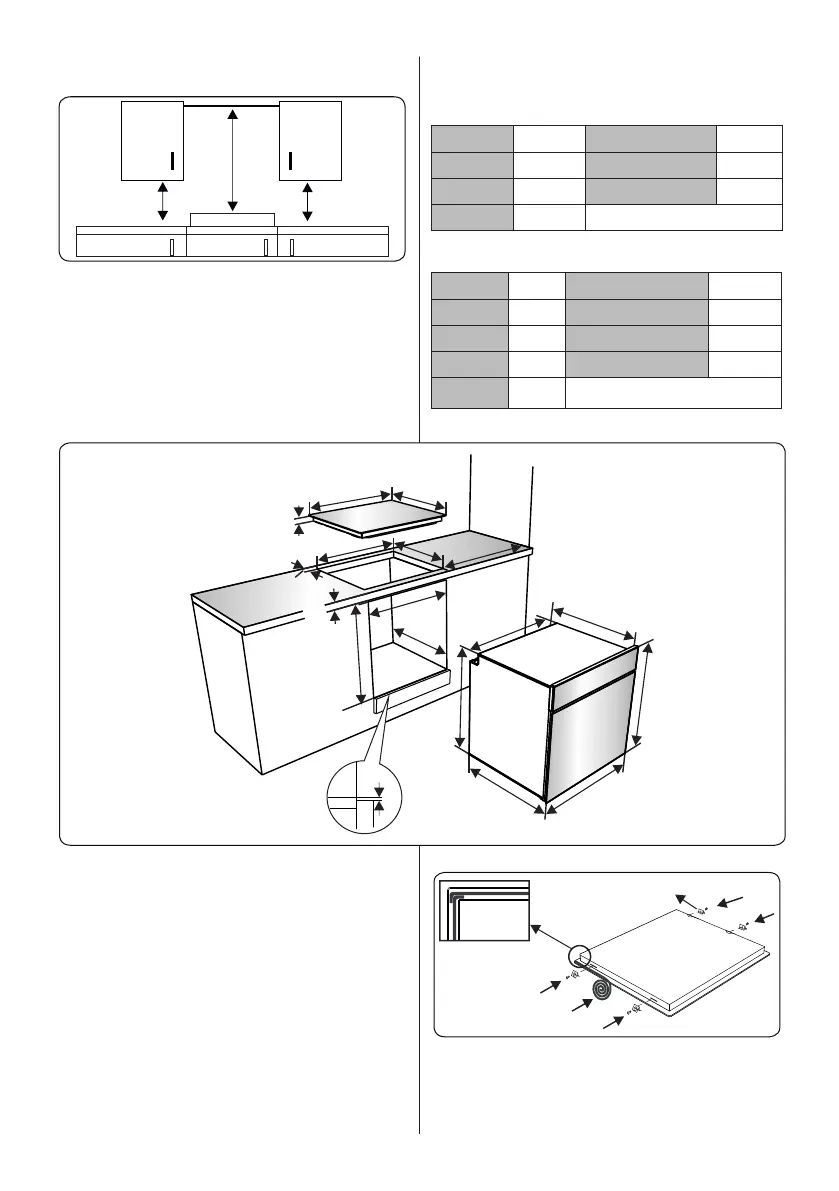

The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
Installation dimensions for hob
A1 (mm) 590 E1 (mm) 490
B1 (mm) 520 min. F1 (mm) 50
C1 (mm) 41 min. G1 (mm) 50
D1 (mm) 560
Installation dimensions for oven
A2 (mm) 557 E2 (mm) 574
B2 (mm) 550 min. F2 (mm) 560-580
C2 (mm) 595 min. G2 /J2 (mm) 555/5
D2 (mm) 575 H2 (mm) 600
I2(mm) 25
A1
B1
C1
I2
H2
G2
F2
D1
G1
E1
A2
F1
B2
C2
C2
D2
E2
J2
Installation of the hob
• Apply the supplied one-sided self-
adhesive sealing tape all the way
around the lower edge of the cooktop.
Do not stretch it.
Self-adhesive
sealing tape
Worktop mounting
bracket
• Screw the 4 worktop mounting brackets
on to the side walls of the appliance.
• Insert the appliance into the aperture.
