Disable UVC output
3
Switch the source from USB 3.0
2
Switch the source from HDMI
© MuxLab Inc. 2025 6 94-001061-A/SE-001061-A

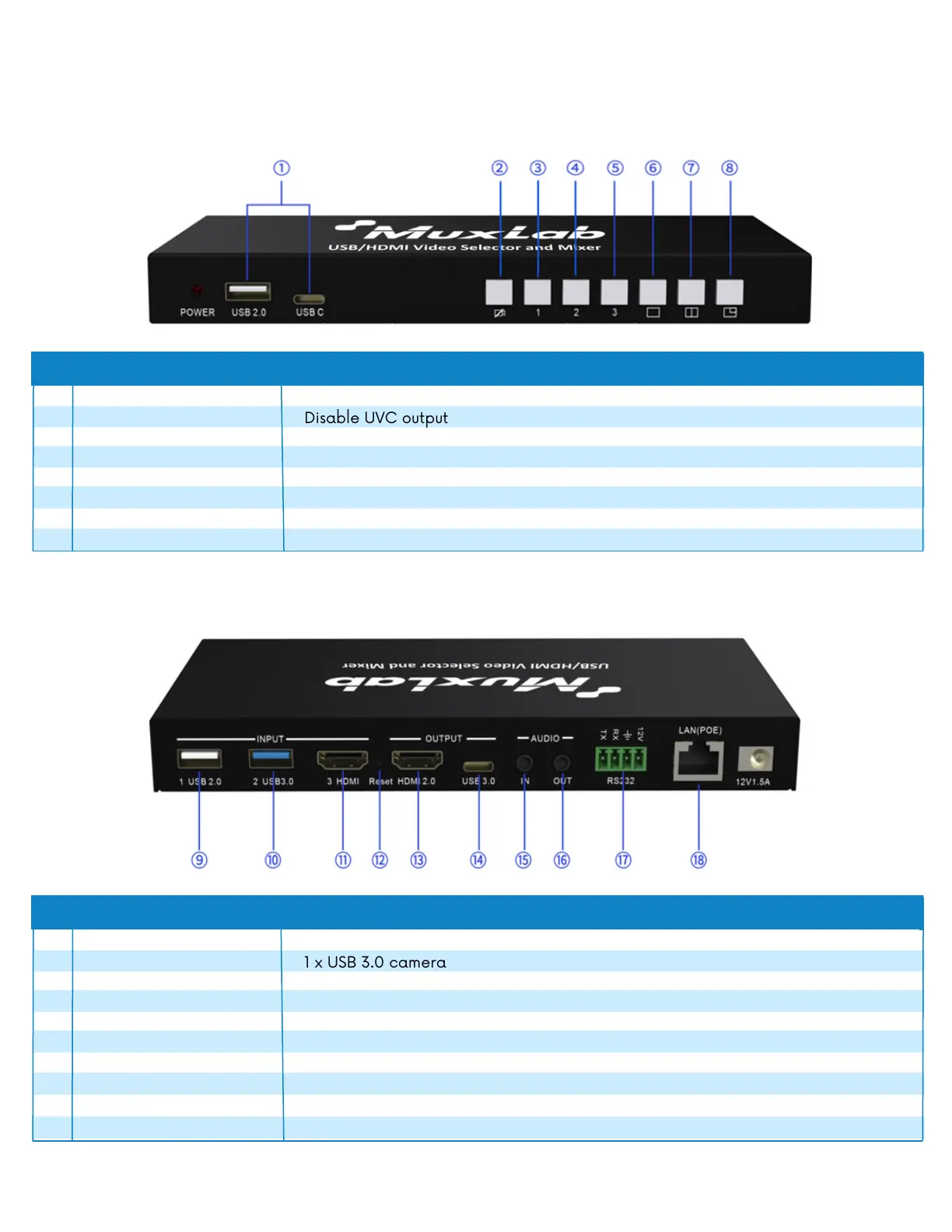

6. Operation Controls and Functions
Front Panel
No
4
Name Description
Reserved for future use
USB 2.0 & USB C PORT
Video Mute Button
Video 1 Button
5
Video 2 Button
Video 3 Button
Switch the source from USB 2.0
6
7
Single Video Button
PBP Mode Button
Single view layout
Side by side layout
USB/HDMI Video Selector and Mixer
8 PIP Mode Button
Picture in Picture Layout
Rear Panel
9
1 x USB 3.0 camera
11
Reset
10
1 x HDMI 2.0 output for local monitoring
No
12
Name Description
1 x USB 2.0 camera
1 USB 2.0 INPUT
2 USB 3.0 INPUT
3 HDMI INPUT
13
Reset button
HDMI 2.0 OUTPUT
1 x HDMI camera or video source
14
15
USB 3.0 OUTPUT
IN AUDIO
1 x USB-C output for UVC/UAV Streaming
1 x line in
16 OUT AUDIO
1 x line out
17 RS232
1 x RS232 for control
18 LAN(POE)
1x 1000M LAN for control
