© MuxLab Inc. 2024 19 94-001020-B/SE-001020-B
1) Frac Rate: Turn On/Off Frac Rate.
2) Encode Level: Support baseline, main profile, high profile and svc-t four levels.
3) Encode Protocol: Support H.264 and H.265 protocols.
4) Resolution: First stream support 1920x1080, 1280x720, 1024x576, 960x540, 640x480,
640x360. Second stream support 1280x720, 1024x576, 720x480, 640x360, 480x272,
320x240, 320x180; The bigger resolution is, the clearer the image will be, more network
bandwidth will be taken.
5) Bit Rate: The user can specify the bit rate. Generally speaking, the larger of the bit rate, the
clearer of the image. However, the configuration of the bit rate needs to be combined with
the network bandwidth. When the network bandwidth is narrow and the bit rate is configured
larger, the video stream cannot be transmitted normally, and the visual effect is worse.
6) Frame Rate: User can specify the size of the frame rate, generally, the frame rate greater,
the image more smooth; Frame rate is smaller, the more sense of beating.
7) I Key Frame Interval: Set interval between 2 I frame, the bigger interval is the response will
be lower from viewing window.
8) Bit Rate Control:
Code stream control way:
CBR (Constant Bit Rate): Video coder will be coding according to preset speed.
VBR (Variable Bit Rate): Video coder will adjust the speed based on preset speed to gain the
best image quality.
9) Slice Split Enable: Enable or disable slice split function.
10) Slice Size: Set the size of slice.

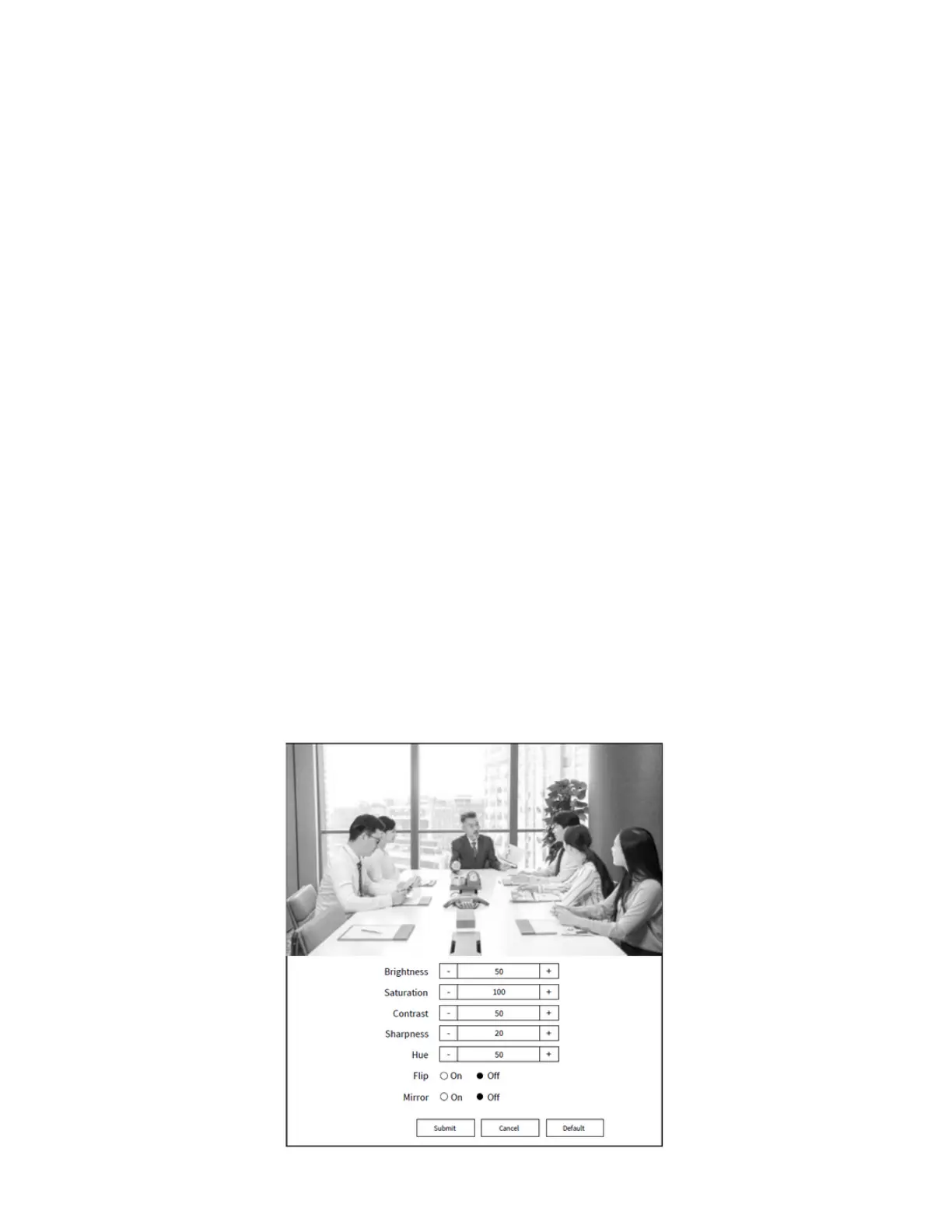

11.3 Image Settings
USB/IP PTZ Camera 30x Zoom, PoE
