HDMI OUT
8
11
L/R OUT Analog audio output port, used for audio de-embedding output.
© MuxLab Inc. 2023 8 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m

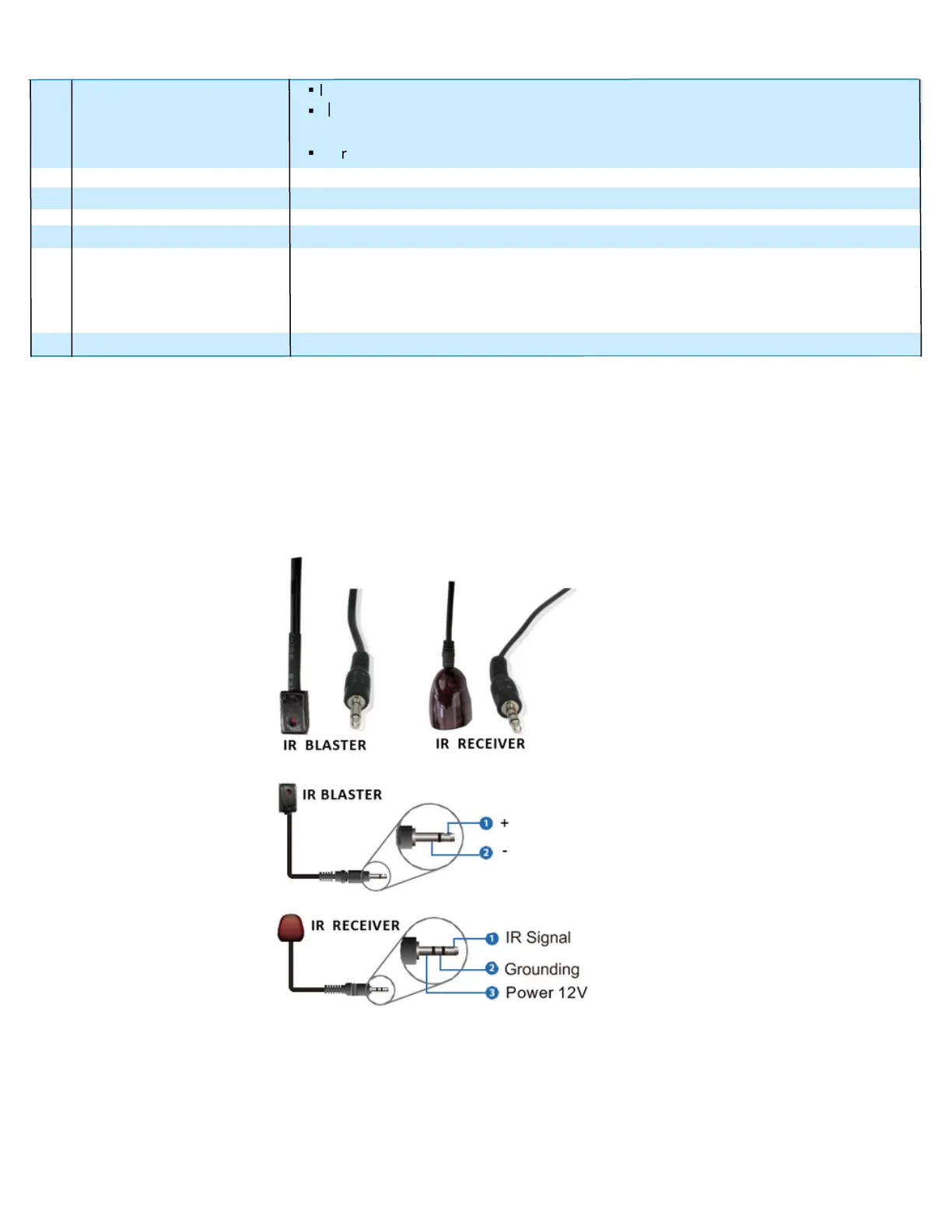

IR Receiver and Blaster pin’s definition as below:
7. IR Pin Definition
9
▪
Illuminating: Transmitter and Receiver are in good connection status.
▪
Flashing: Transmitter and Receiver are in poor connection status or connected
to the same device.
▪
Dark: Transmitter and Receiver are not connected.
13
DC 24V
Use the switch to turn on/off POC function.
14 POC Switch
Link Signal Indicator
(Green)
HDMI signal output port, connected to HDMI display device.
10
USB DEVICES Two USB device ports, connected to USB disk, mouse or keyboard.
12
RS-232
RS-232 serial port, used for serial port command transmission.
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means that either transmitter or
receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
Note: When the angle between the IR receiver and the remote control is ± 45°, the
transmission distance is 0-5 meters; when the angle between the IR receiver and the remote
control is ± 90°, the transmission distance is 0-8 meters.
