HDMI IN
10
13
USB DEVICES Two USB device ports, connected to USB disk, mouse or keyboard.
© MuxLab Inc. 2023 7 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m

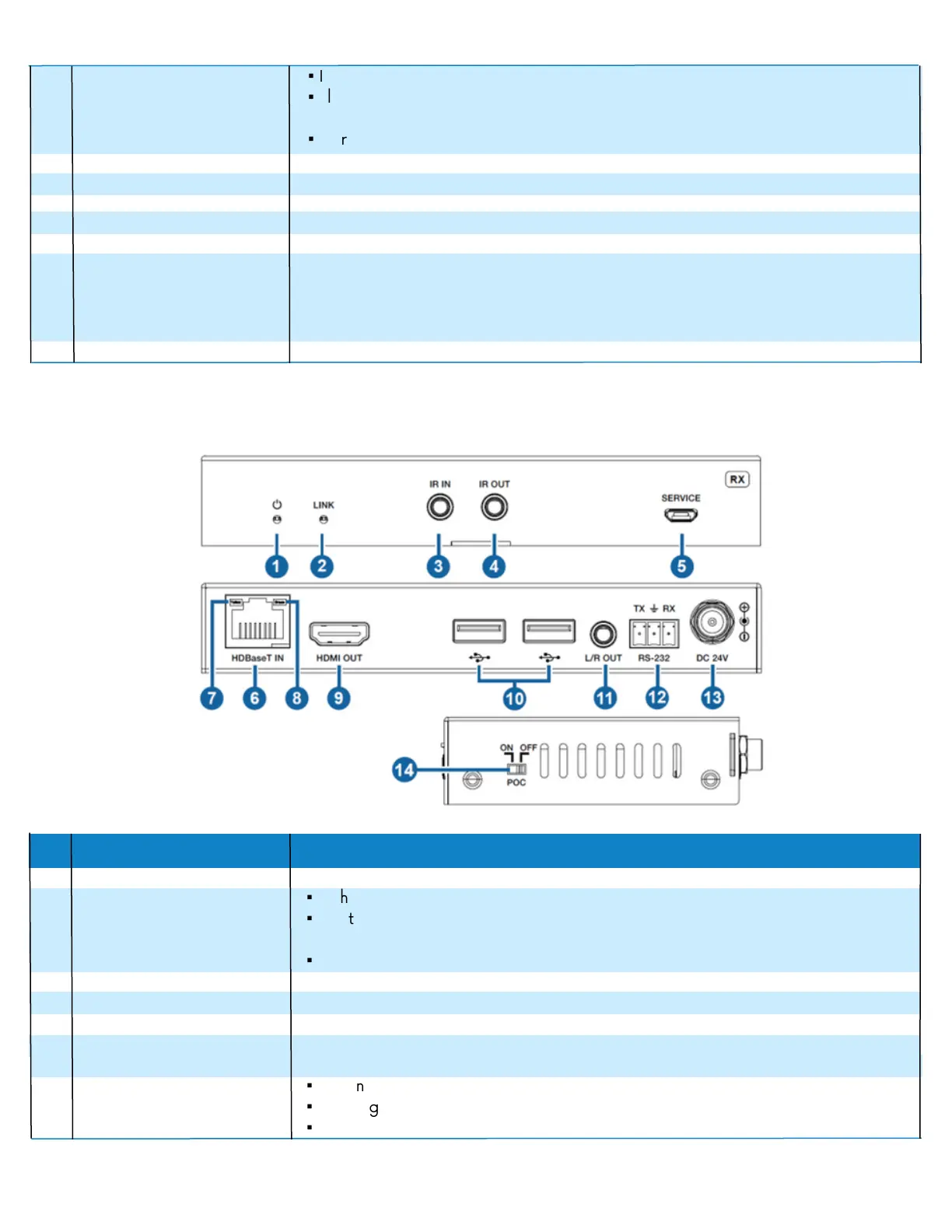

6.2 Receiver Panel
11
▪
Illuminating: Transmitter and Receiver are in good connection status.
▪
Flashing: Transmitter and Receiver are in poor connection status or connected
to the same device.
▪
Dark: Transmitter and Receiver are not connected.
15
RS-232
RS-232 serial port, used for serial port command transmission.
Use the switch to turn on/off POC function.
17 POC Switch
Link Signal Indicator
(Green)
HDMI signal input port, connected to signal source device.
12
USB HOST USB extension host port, connected to PC.
14
L/R OUT
Analog audio output port, used for audio de-embedding output.
DC 24V/1A power supply input port.
Note that the extender supports POC function, it means that either transmitter or
receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
16
DC 24V
5
1
Firmware update port.
No
Name Function Description
Red LED indicates that the Receiver is powered on.Power LED
SERVICE
▪
Light on: Transmitter and Receiver are in good connection status.
▪
Light flashing: Transmitter and Receiver are in poor connection status or
connected to the same device.
▪
Light off: Transmitter and Receiver are not connected.
LINK LED
2
IR signal input port, connected to IR Receiver cable.
3
IR IN
4
IR OUT
IR signal output port, connected to IR Blaster cable.
HDBaseT input port, connected to the HDBaseT OUT port of Transmitter with a
CAT 6A/7 cable. It is used for various signals pass-through.
6
HDBaseT IN
▪
Illuminating: HDMI signal with HDCP.
▪
Flashing: HDMI signal without HDCP.
▪
Dark: No HDMI signal.
7
Data Signal Indicator
(Yellow)
