6. Operation Controls and Functions

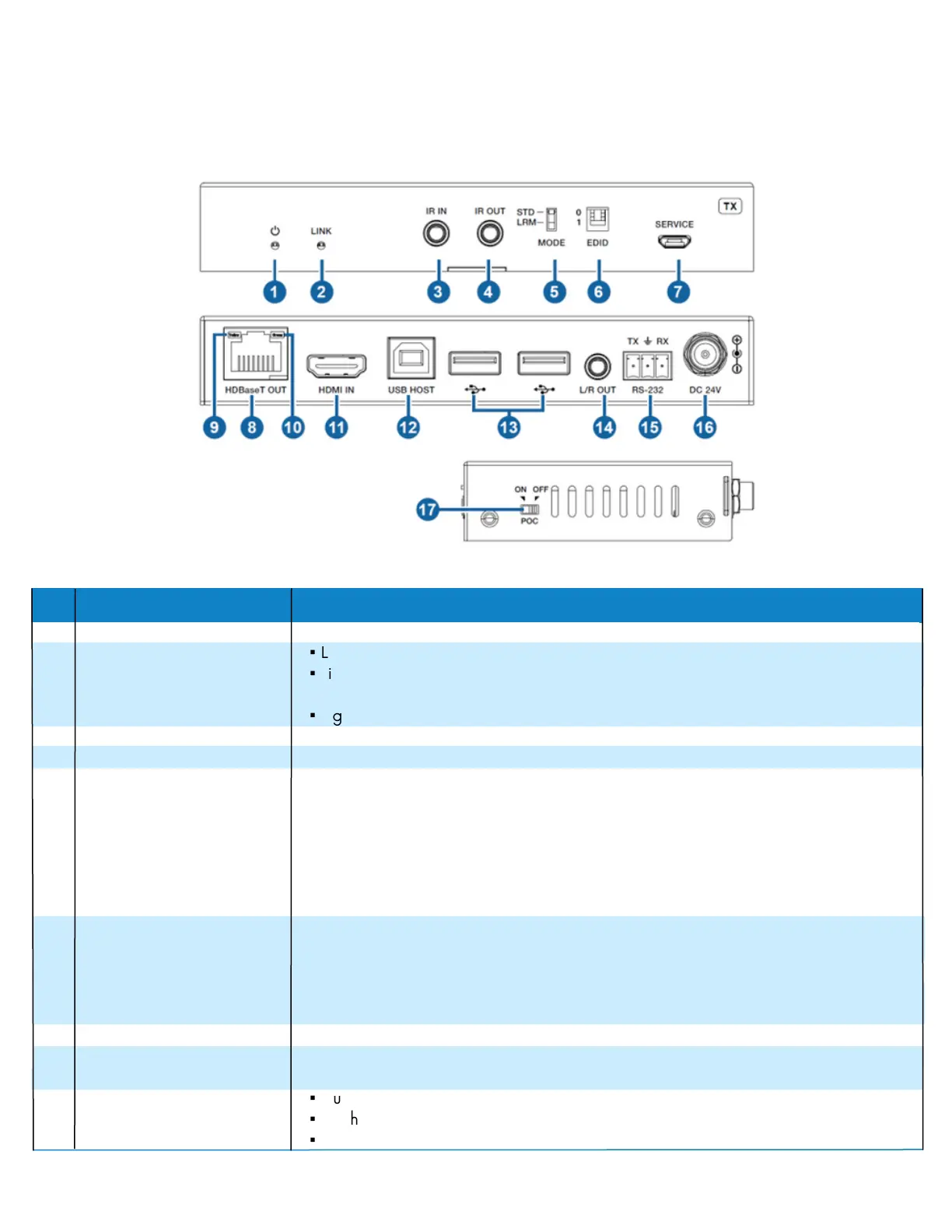

6.1 Transmitter Panel
1
Used to switch HDBT mode.
Switch to "STD": The HDBT Standard Mode (as factory default) is enabled, it
can extend 4K/60 signal between the transmitter and the receiver up to 100m
via a single CAT 6A/7 cable.
Switch to "LRM": The HDBT Long Reach Mode is enabled, it can extend 1080p
signal between the transmitter and the receiver up to 150m via a single
CAT6/6A/7 cable.
No
Name Function Description
Red LED indicates that the Transmitter is powered on.Power LED
MODE Switch
© MuxLab Inc. 2023 6 94-001010-A/SE-001010-A
HDMI 2.0 KVM HDBT Extender Kit, 100m
▪
Light on: Transmitter and Receiver are in good connection status.
▪
Light flashing: Transmitter and Receiver are in poor connection status or
connected to the same device.
▪
Light off: Transmitter and Receiver are not connected.
LINK LED
2
IR signal input port, connected to IR Receiver cable.
3
IR IN
4
IR OUT
IR signal output port, connected to IR Blaster cable.
6
EDID DIP Switch
Used for EDID setting:
00: Copy display’s EDID (as factory default)
01: 4K30 4:4:4
10: 1080p/60 4:4:4
11: 1200p/60 4:4:4
7
SERVICE
Firmware update port.
HDBaseT output port, connected to the HDBaseT IN port of Receiver with a
CAT6A/7 cable. It is used for various signals pass-through.
8
HDBaseT OUT
9
Data Signal Indicator
(Yellow)
▪
Illuminating: HDMI signal with HDCP.
▪
Flashing: HDMI signal without HDCP.
▪
Dark: No HDMI signal.
