EN
7. Adjust the brass ring until it fits snug against
the cap. This will help keep the cap in place
during operation.
NOTE: Blades should be replaced every 6 months. They might need to be replaced more often if cutting thicker
material such as flock, glitter or reflective materials.

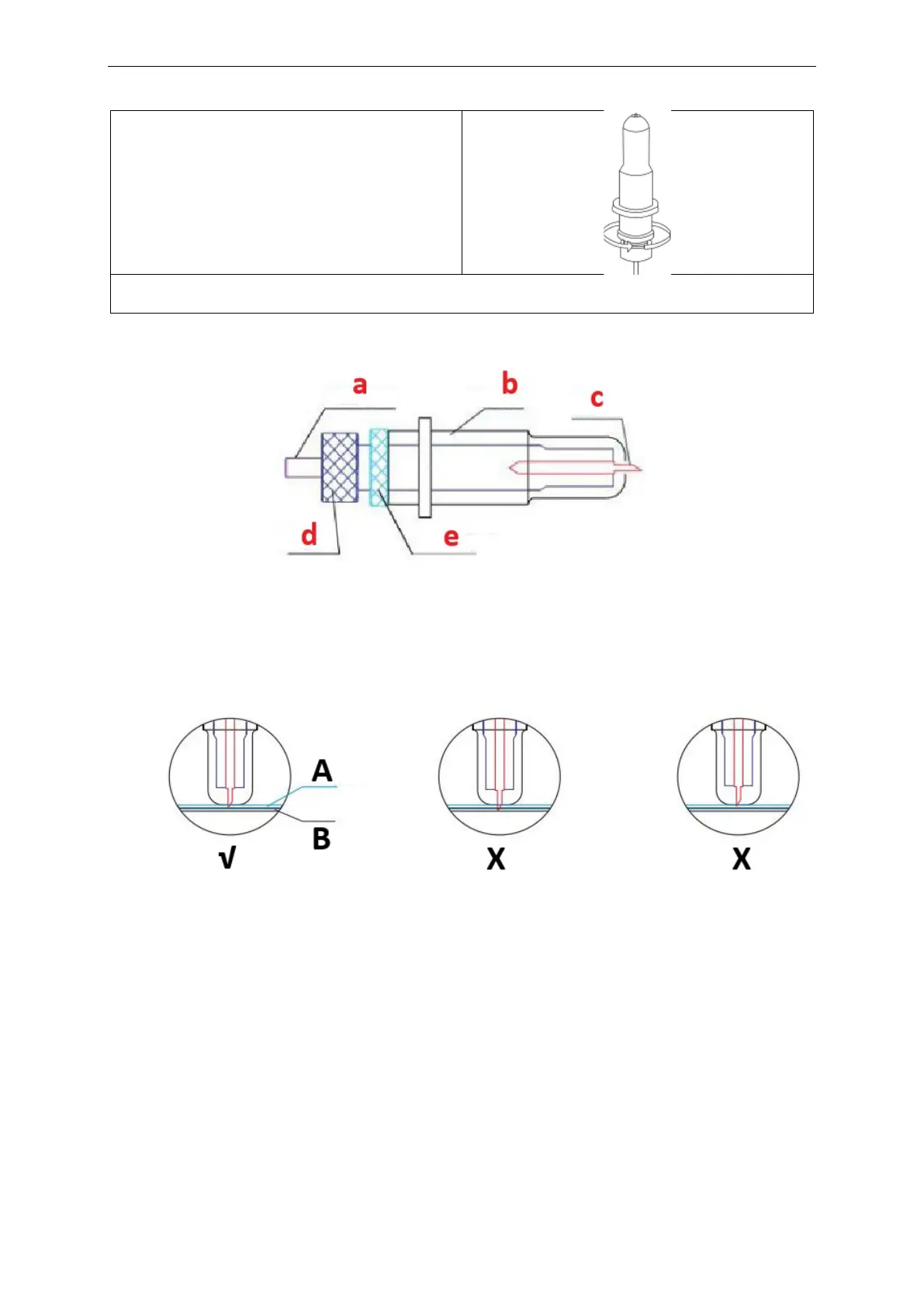

FIXING THE BLADE INTO THE HOLDER
a) Pressing rod
b) Blade cover
c) Blade
d) Shank
e) Blade adjustment nut
1. Loosen the blade adjustment nut and rotate the shank to adjust the length of the exposed blade tip.
Determine the tip length according to the thickness of the material:
A) Material thickness
B) Base thickness
V) Correct cutting depth
X) Left – blade tip too long; Right – blade tip too short
2. Press the pressing rod when you want to change blade. Take out the blade when it is exposed.
3. NOTE: The blade tip is very sharp – do not touch it with the finger due to possible injury and blade
blunting risk!
INSTALLING THE BLADE HOLDER IN THE CARRIAGE
