507768C05
Page 4 of 57
mrcool.com
Gas Furnace
The MGM*96SE*XA Category IV gas furnace is shipped
ready for installation in the upflow or horizontal
position. The furnace is shipped with the bottom panel
in place. The bottom panel must be removed if the unit
is to be installed in horizontal or upflow applications with
bottom return air.The MGM*96SE*XA can be installed as
either a Direct Vent or a Non-Direct Vent gas central
furnace.
The furnace is equipped for installation in natural
gas applications. A conversion kit (ordered
separately) is required for use in propane/LP gas
applications.
NOTE: In Direct Vent installations, combustion air is
taken from outdoors and flue gases are discharged
outdoors. In Non-Direct Vent installations, combustion air
is taken from indoors or ventilated attic or crawlspace
and flue gases are discharged outdoors. See Figure 2
and Figure 3 for applications involving roof termination.

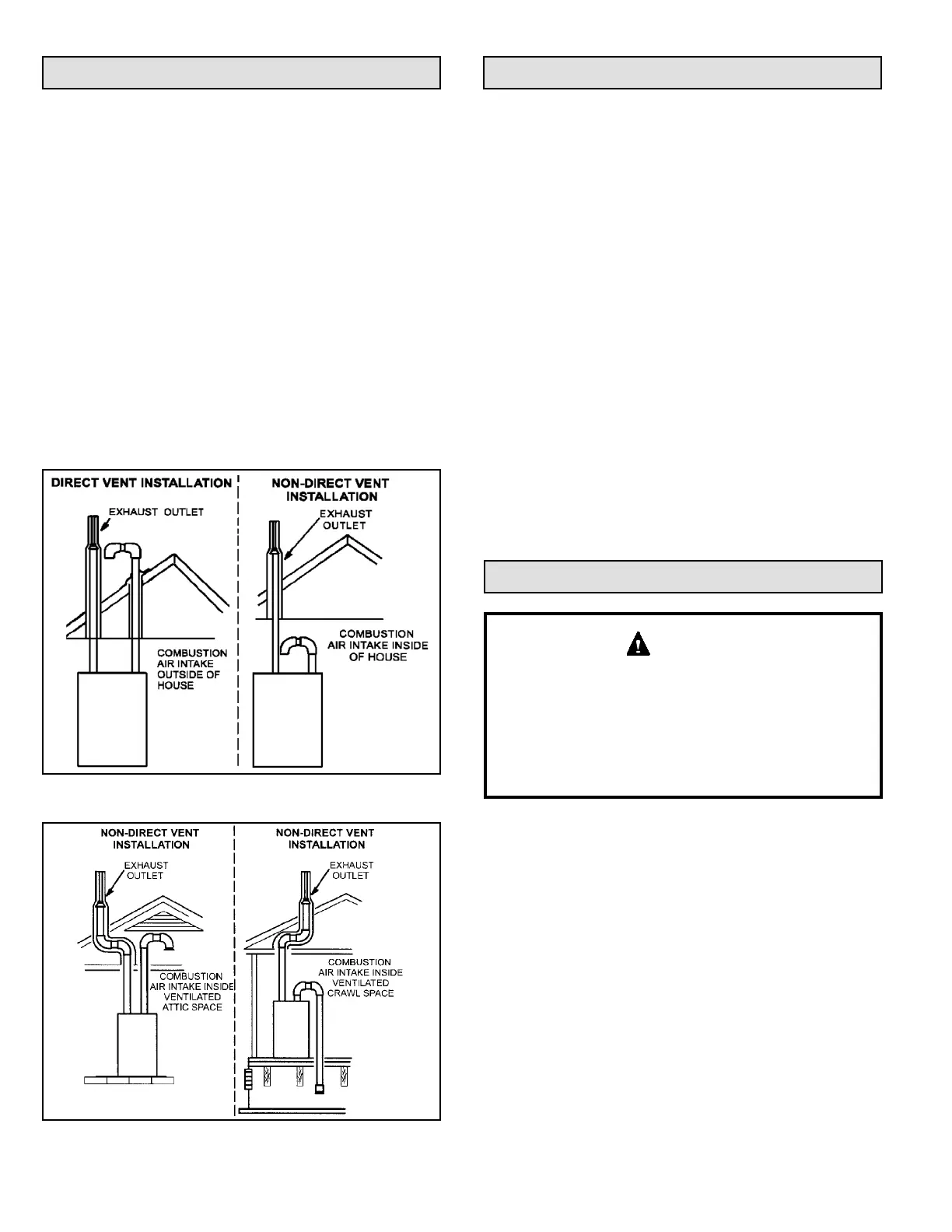

Figure 2.
Figure 3.
Shipping and Packing List
1 - Assembled Gas Furnace
1 - Bag assembly containing the following:
1 - Snap bushing
1 - Snap Plug
1 - Wire tie
1 - Condensate trap
1 - Condensate trap cap
1 - Condensate trap clamp
1 - 2” diameter debris screen
1 - 3/4” Threaded street elbow
NOTE: The required bellows grommet is eld-provided.
See the Gas Piping section for relevant diagrams.
Check equipment for shipping damage. If you nd any
damage, immediately contact the last carrier.
Please refer to specication sheets for available
accessories.
Safety Information
DANGER OF EXPLOSION!
There are circumstances in which odorant used with
LP/Propane gas can lose its scent. In case of a leak,
LP/Propane gas will settle close to the oor and may be
dicult to smell. An LP/Propane leak detector should be
installed in all LP applications.
DANGER
Use only the type of gas approved for use with this
furnace. Refer to unit nameplate.
MGM*96SE*XA units are CSA International certified to
ANSI Z21.47 and CSA 2.3 standards.
Building Codes
In the USA, installation of gas furnaces must conform with
local building codes. In the absence of local codes, units
must be installed according to the current National Fuel
Gas Code (ANSI Z223.1/NFPA 54). The National Fuel Gas
Code is available from the American National Standards
Institute,Inc., 11 West 42nd Street, New York, NY 10036.
In Canada, installation must conform with current National
Standard of Canada CSA-B149 Natural Gas and Propane
Installation Codes, local plumbing or waste water codes
and other applicable local codes.
