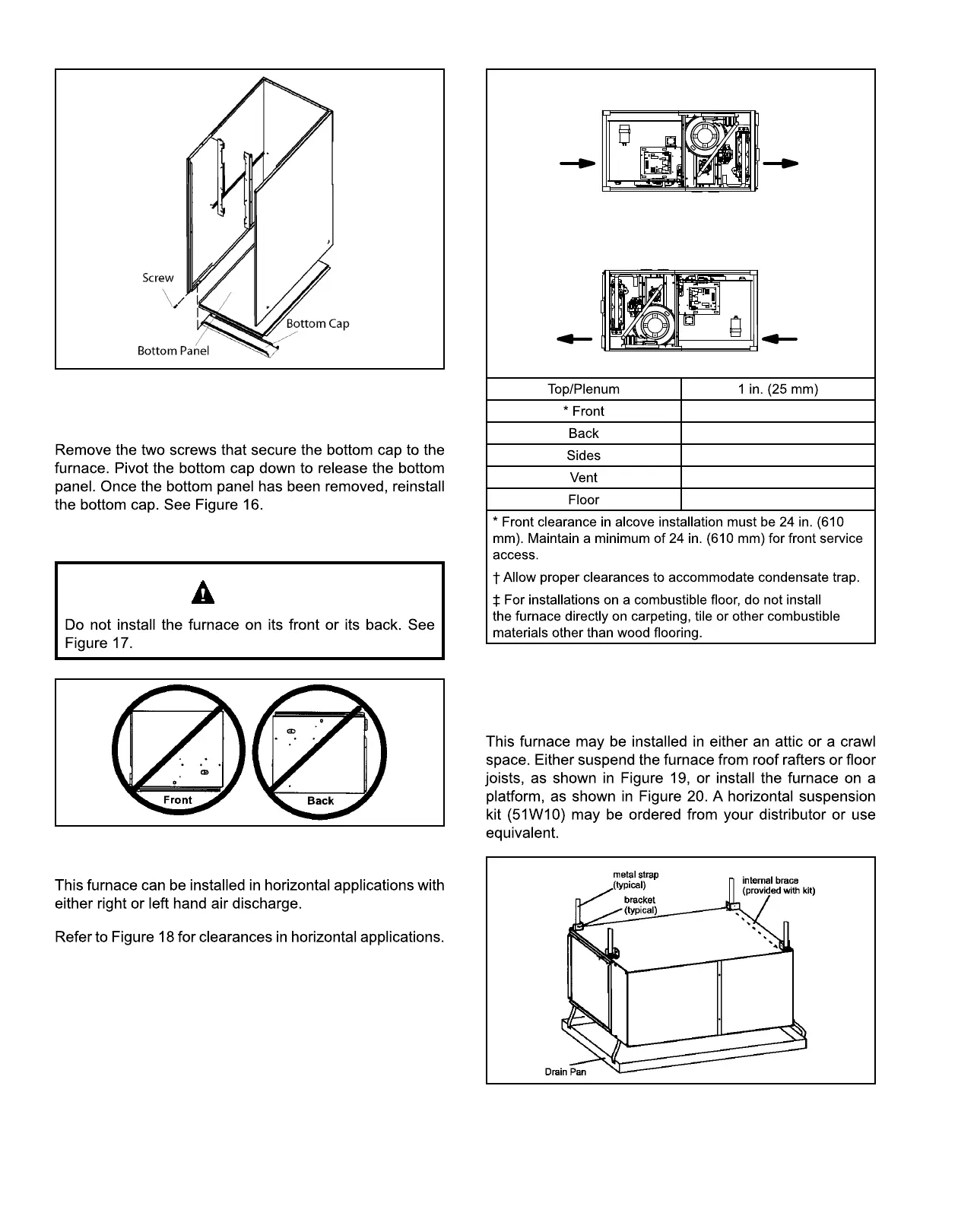

507276-05CPage 12 of 57 mrcool.com
Figure 16. Removing the Bottom Panel
Removing the Bottom Panel
Horizontal Applications
WARNING
Figure 17.
Figure 18. Installation Clearances
Horizontal Applications
dnEthgiRdnEtfeL
Right−Hand Discharge
Left−Hand Discharge
Top
Bottom (Floor)**
Bottom (Floor)**
dnEthgiRdnEtfeL
Air
Flow
Air
Flow
Air
Flow
Air
Flow
Top 0
Front* 0
Back 0
Ends 0
Vent 0
Floor 0‡
* Front clearance in alcove installation must be 24 in. (610 mm).
Maintain a minimum of 24 in. (610 mm) for front service access.
**An 8" service clearance must be maintained below the unit to provide
for servicing of the condensate trap.
‡For installations on a combustible
oor, do not install the furnace directly
on carpeting, tile or other combustible materials other than wood
ooring.
0
0
0†
0
0‡
Suspended Installation of Horizontal Unit
Figure 19. Typical Horizontal Application
