NOTE ON INSTALLATION OF A DIY MULTI-ZONE SYSTEM
Please read this instruction manual fully before you attempt to
install this system. Because there are multiple units, pipes, and lines
to be installed in different locations, and heating/cooling zones to
consider, planning your installation is necessary in order to help
prevent any potential problems. It should be noted that it is easier
to install the air handlers to the outer walls. If they are to be
mounted to interior walls, line sets will need to be run to a central
location, such as an attic, basement, or crawlspace, and have them
exit the house (to the outdoor unit) from that location.

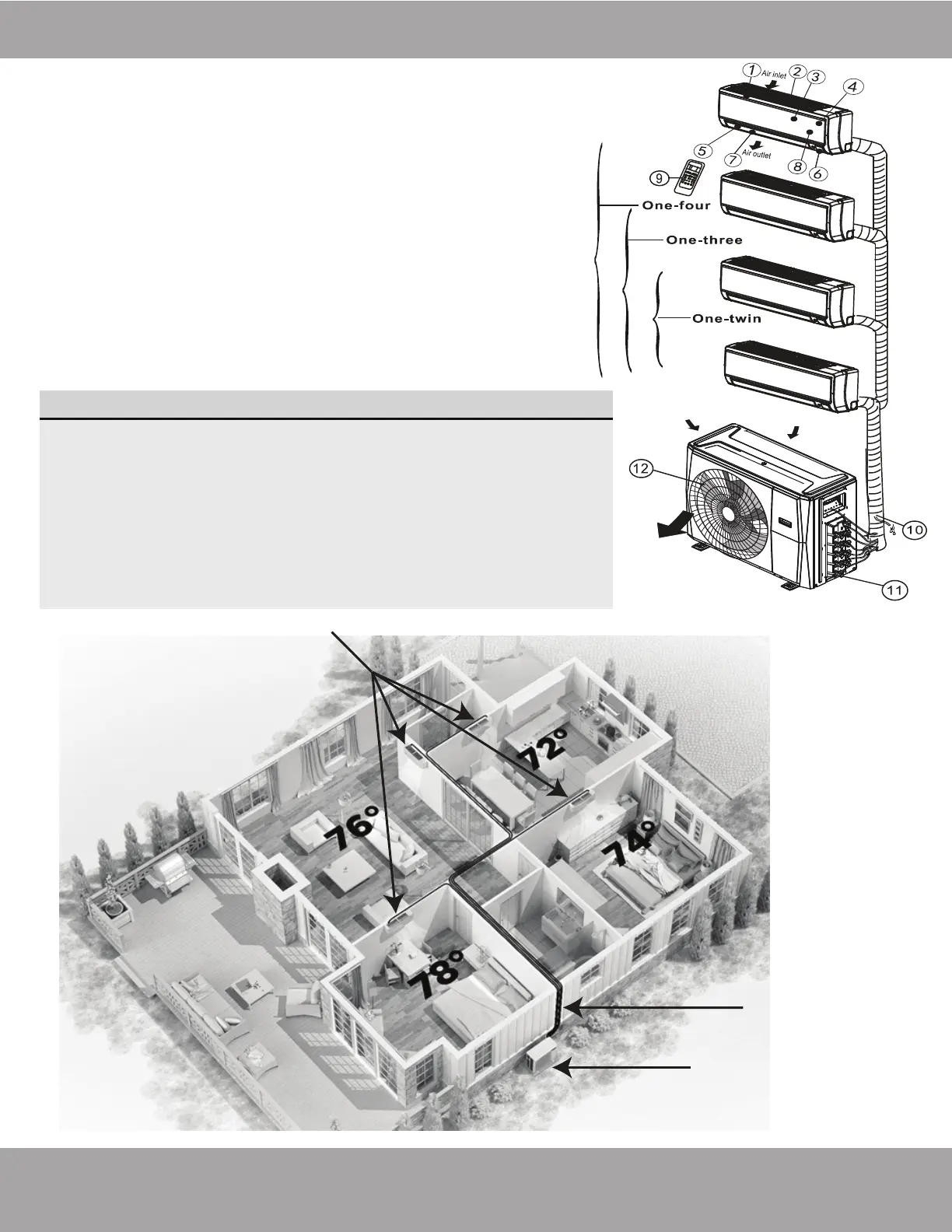

Indoor unit
1. Panel frame
2. Rear air intake grill
3. Front panel
4. Air purifying filter & Air filter (behind)
5. Horizontal louver
6. LCD display window
7. Vertical louver
8. Manual control button (behind front panel)
9. Remote controller holder
Outdoor unit
10. Drain hose, refrigerant connecting pipe
11. Stop valve
12. Fan hood
Page 6
Overview - Diagram
mrcool.com
Air Inlet
Air Inlet
Air Outlet
Outdoor
Unit
Refrigerant
Piping & Lines
Indoor Units within their zones
