Page 23
mrcool.com
Outdoor Unit Installation
Outdoor Unit Dimensions:
Inches (Millimeters)
Width (W) x Height (H) x Depth (D)
Mounting Dimensions:
Inches (Millimeters)
Width (A)
Depth (B)
37.24 in x 31.89 in x 16.54 in
(946 mm x 810 mm x 420 mm)
26.50 in
(673 mm)
DIY-MULTI3-27HP230
DIY-MULTI4-36HP230
WHEN DRILLING INTO CONCRETE,
EYE PROTECTION IS RECOMMENDED
AT ALL TIMES.
W
H
D
Air Inlet
A
B
Air Outlet
Air Inlet

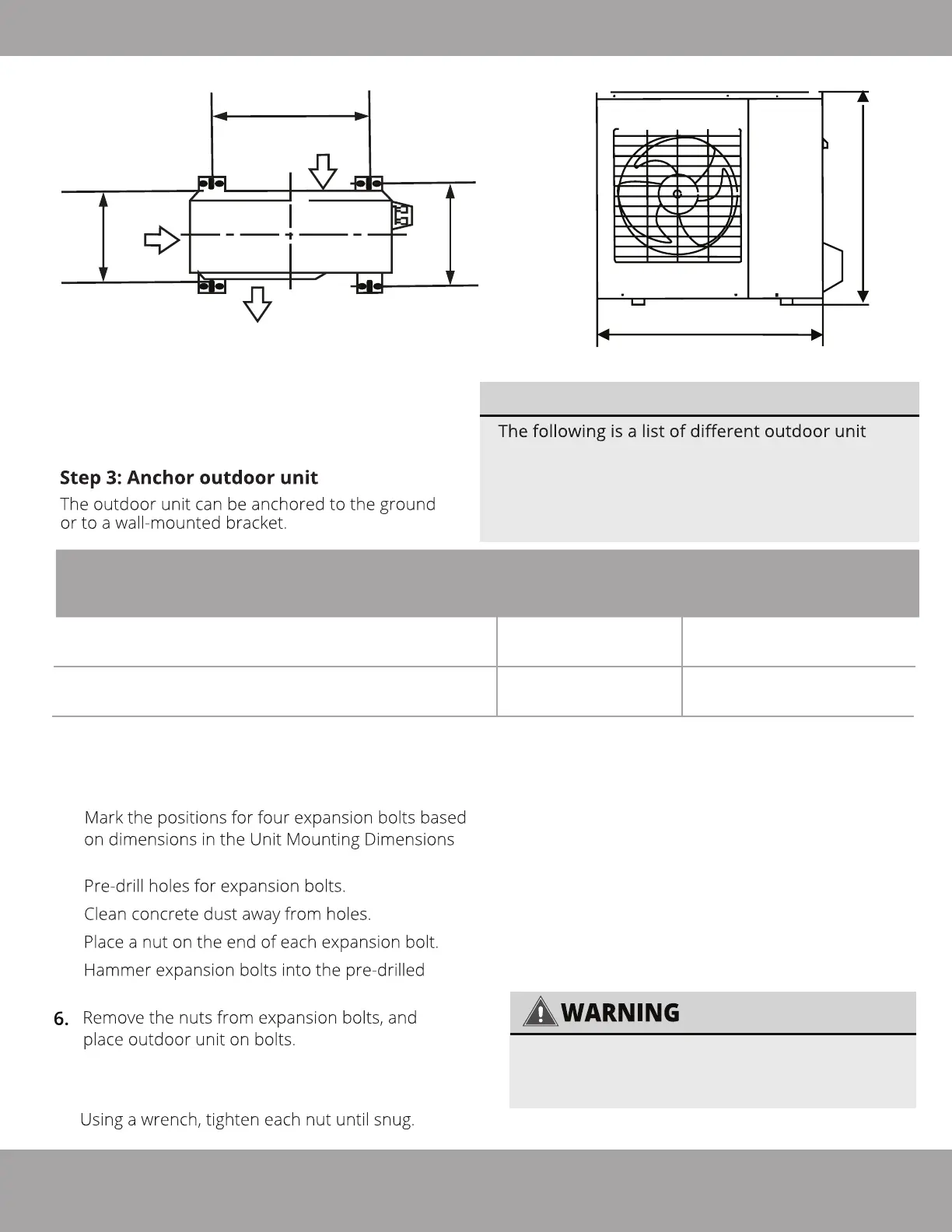

Fig. 6.5
If you are installing the outdoor unit on the
ground, or a concrete mounting platform, use the
following steps:
1.
chart and illustrations above.
2.
3.
4.
5.
holes.
UNIT MOUNTING DIMENSIONS
sizes and the distance between their mounting feet.
Prepare the installation base of the unit according
to the dimensions in the table below, using the
illustrations of the unit above (Fig 6.5) as a
reference/guide to correspond with the table.
7.
8.
37.24 in x 31.89 in x 16.54 in
(946 mm x 810 mm x 420 mm)
26.50 in
(673 mm)
15.87 in
(403 mm)
15.87 in
(403 mm)
TOP VIEW
Put a washer on each of the expansion bolts,
then reinstall the nuts.
FRONT VIEW
