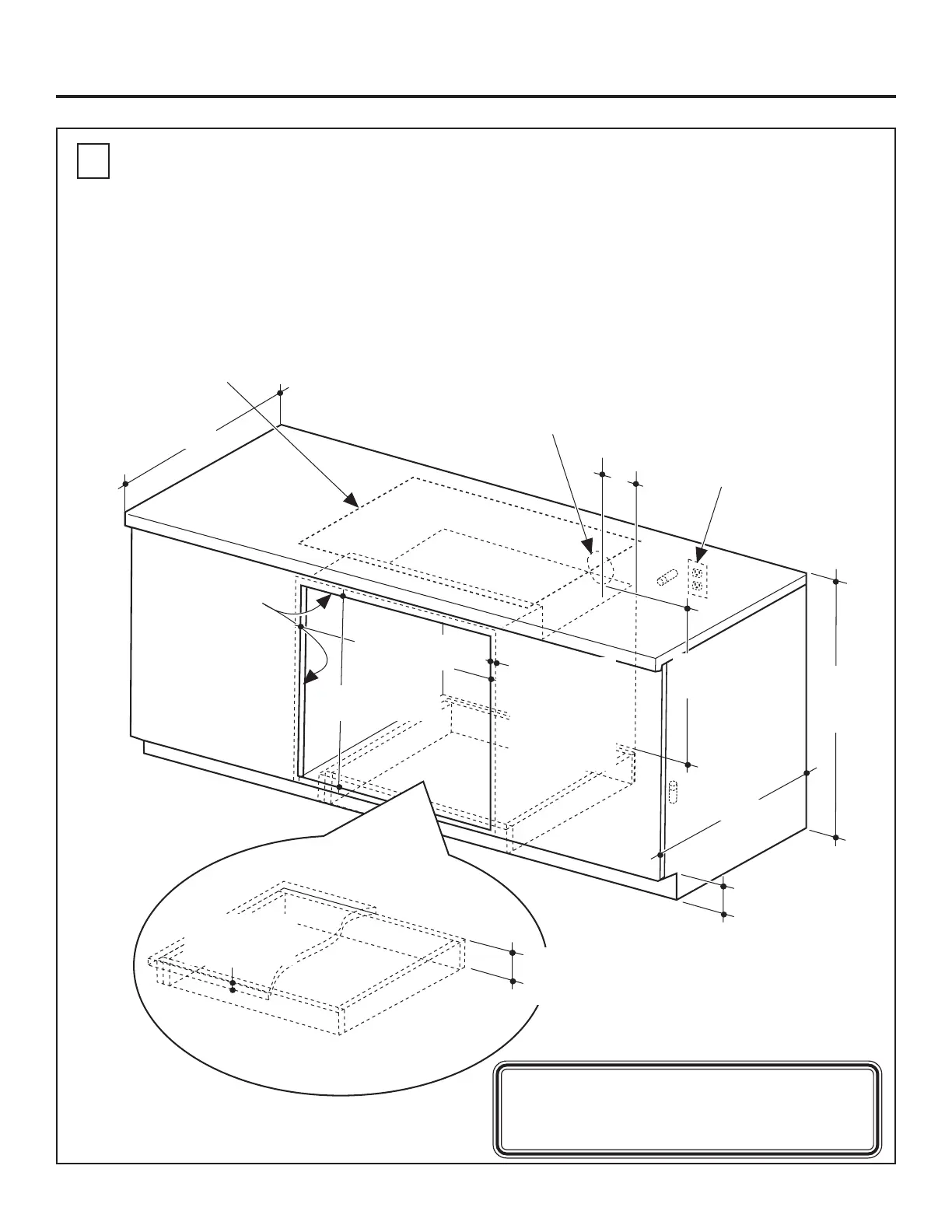

Installation Instructions
Cutout for 27″ (68.6 cm) Single Built-In
Ovens only Under Counter
For JKS10, JKP30, JKP70, PK916, ZEK938 models only.
Gas or electric cooktops may
be installed over this oven.
See cooktop installation
instructions for cutout size.
See label on top of oven for
approved cooktop models.
Top and/or side fillers
may be necessary
if unit is positioned
between existing
cabinets. Be sure
they are attached
securely, since they
will anchor the oven
in the cabinet.
240V / 208V
Junction Box
Location
5”
(12.7 cm)
Max. from the
left or right
side
Gas and electrical connections
for gas cooktop must be located
in an adjacent accessible
location to the right.
MUST SUPPORT 150 LBS. (68 Kg)
A
NOTE: This oven is only approved to
be installed under the specific models
as labeled on this unit.
25” (63.5 cm)
36” (91.4 cm)
Typical
Countertop
Height
22” (55.9 cm) Min.
Above Support
Platform
25” (63.5 cm) Min.
25 1/4” (64.1cm) Max.
27 5/8” (70.2 cm) Min.
28 1/8” (71.4 cm) Max.
24” (61cm)
4” (10.2 cm)
Typical
Toekick
3/4” (1.9 cm)
Support Platform
Required
Must
match
toekick
height
Allow
1”
(2.5 cm)
unit overlap top
and bottom of
oven, 1” (2.5 cm)
unit overlap side
edges
