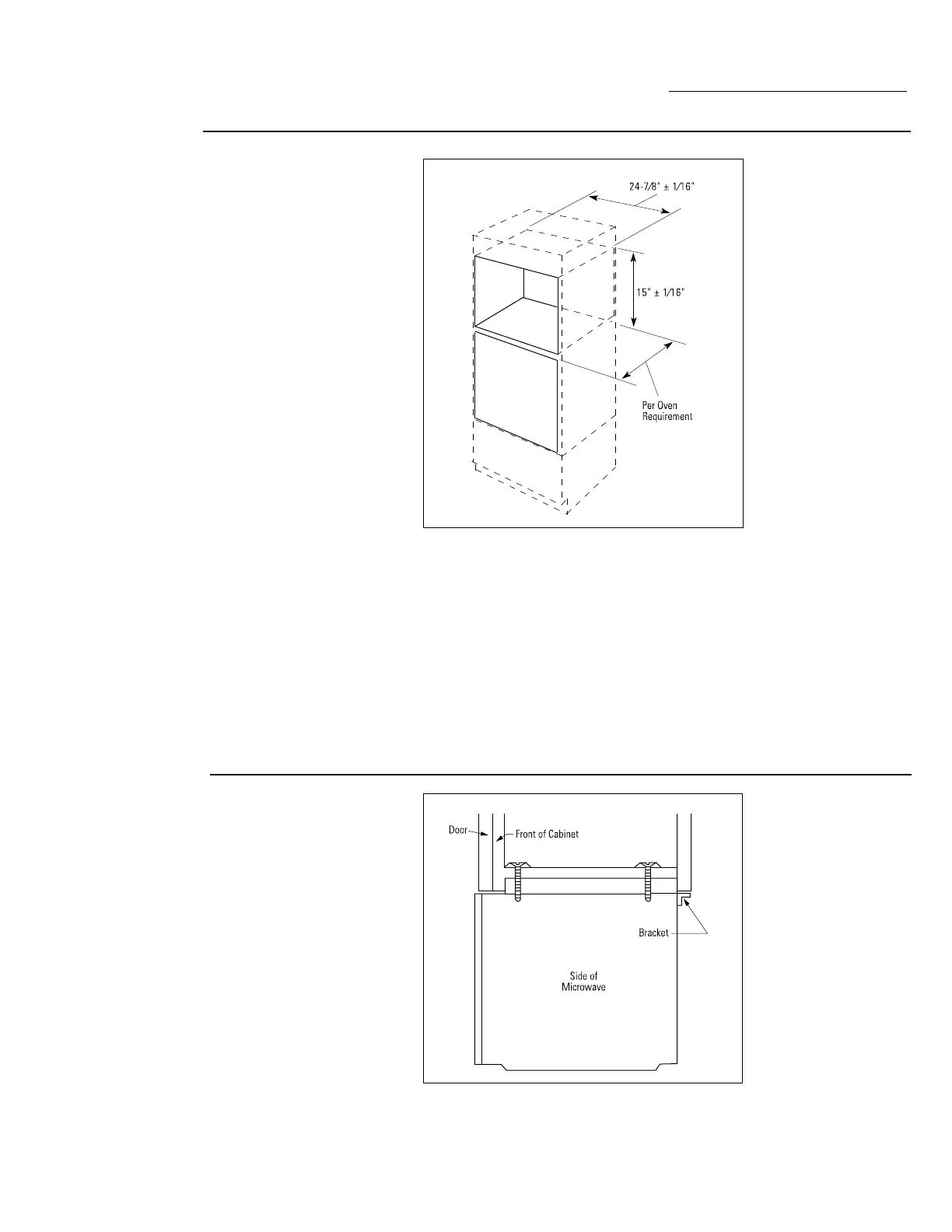

Refer to diagram at right
for dimensions when
installing ZEM200WV
above a Monogram
single oven.
ZEM200WV
With single
oven
Within opening of appropriate dimensions:
• Install a level base of plywood:
– Flush with lower edge of opening.
– Entirely covering floor of opening.
• 3/8" thick (min.) plywood must be supported by
2" x 4" or 1" x 2" equivalent runners on all
four sides.
• Finished floor must support a minimum of
100 pounds.
• Assemble JX827WN accessory kit, refer to
“Installation” for details.
ZEM200WV
Under-cabinet
mounting
The ZEM200WV may be installed under virtually any
cabinetry and is supplied with all hardware necessary
for under-cabinet installation. Cabinet bottom must
be capable of supporting an additional 90 pounds.
Refer to “Advance Planning” for more details.
Note:
Trim kit JX827WN is
required for installation above a
single oven.
Installation Preparation
Microwave Oven
5
