Terminal Remark
IN
n
Contact Closure (no galvanic isolation necessary) or up to 50V AC/DC
n
max. length for cables: 50m
OUT
n
requires pull-up resistor and external power supply (10mA / max. 50V DC
- no AC)
n
Output may be loaded with max. 50mA
n
max. length for cables: depends on loop impedance of the connected
cable.

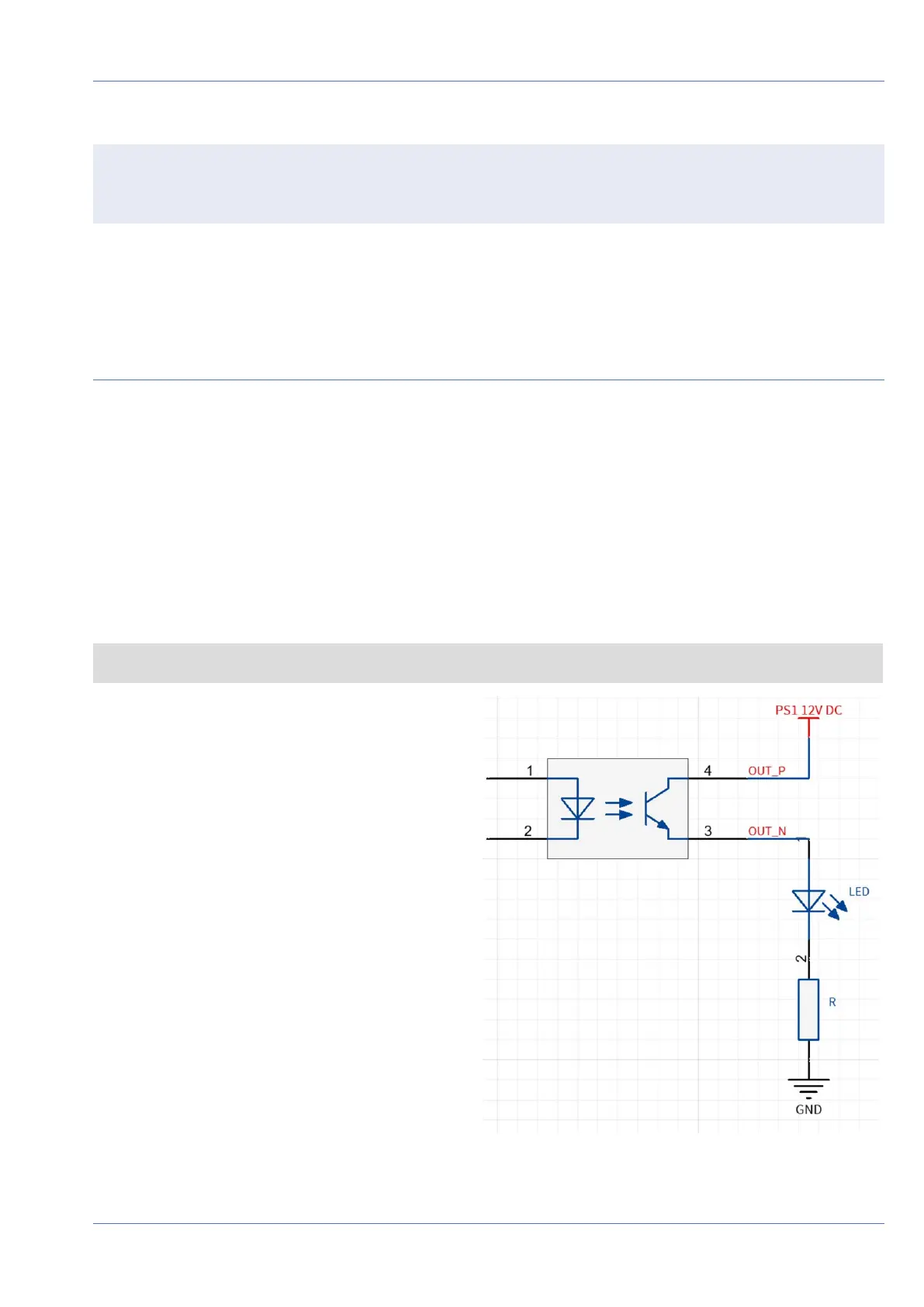

Example: switching an LED light using the P7 outputs
The outputs in the Interface board are using an optocoupler with an open collector.
n
The outputs will require the use of an external DC power supply up to 50 volts.
n
The optimal output current of the optocouple output is around 10mA.
n
The maximum limit of the output current is 50mA.
n
This must be maintained by an external pull-up resistor.
NOTE! They outputs are not capable of dry connect closure or direct use with AC power
The example shows a simple low voltage low cur-
rent application such as switching an LED light using
the P7 outputs.
The value of the pullup resistor depends on the for-
ward voltage of the LED at the specific current you
want to run through it.
Mounting
Connecting the camera
55 / 87
