they are compatible. For the electrical connection,
strip the cables by 0.5 cm and tighten them rmly to the
terminal board with a 3 mm phase nder screwdriver.
The electrical connection must be made on the two
external terminals of the terminal block (the rst at the
top and the last at the bottom, respectively marked
NO and COM), by
connecting a sin-
gle cable to each
of them, without a
precise order.Re-
fer to the image
on the right.
Once the rear
bracket has
been installed
and the electri-
cal connections
have been made

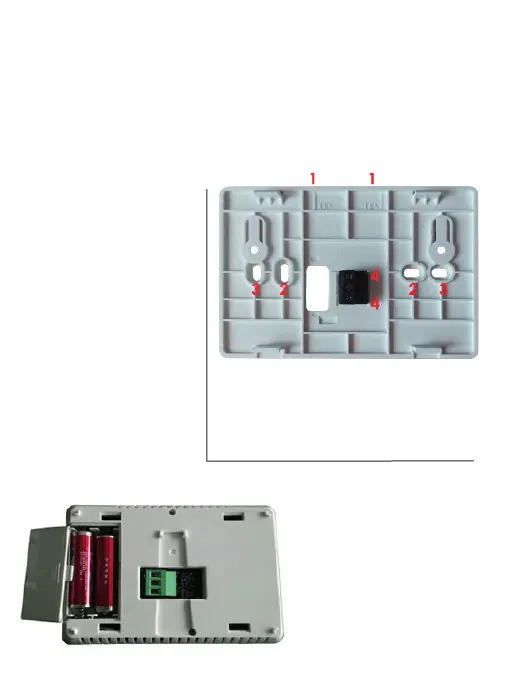

1. Arrows: installation direction
2. Screw holes: 60mm box
3. Screw holes: 3-module box
4. Boiler connection contacts
correctly, the chro-
nothermostat can be
applied, taking care
to insert the batteries
(2 alkaline or zinc /
carbon size AA) in
the appropriate com-
partment, respecting
