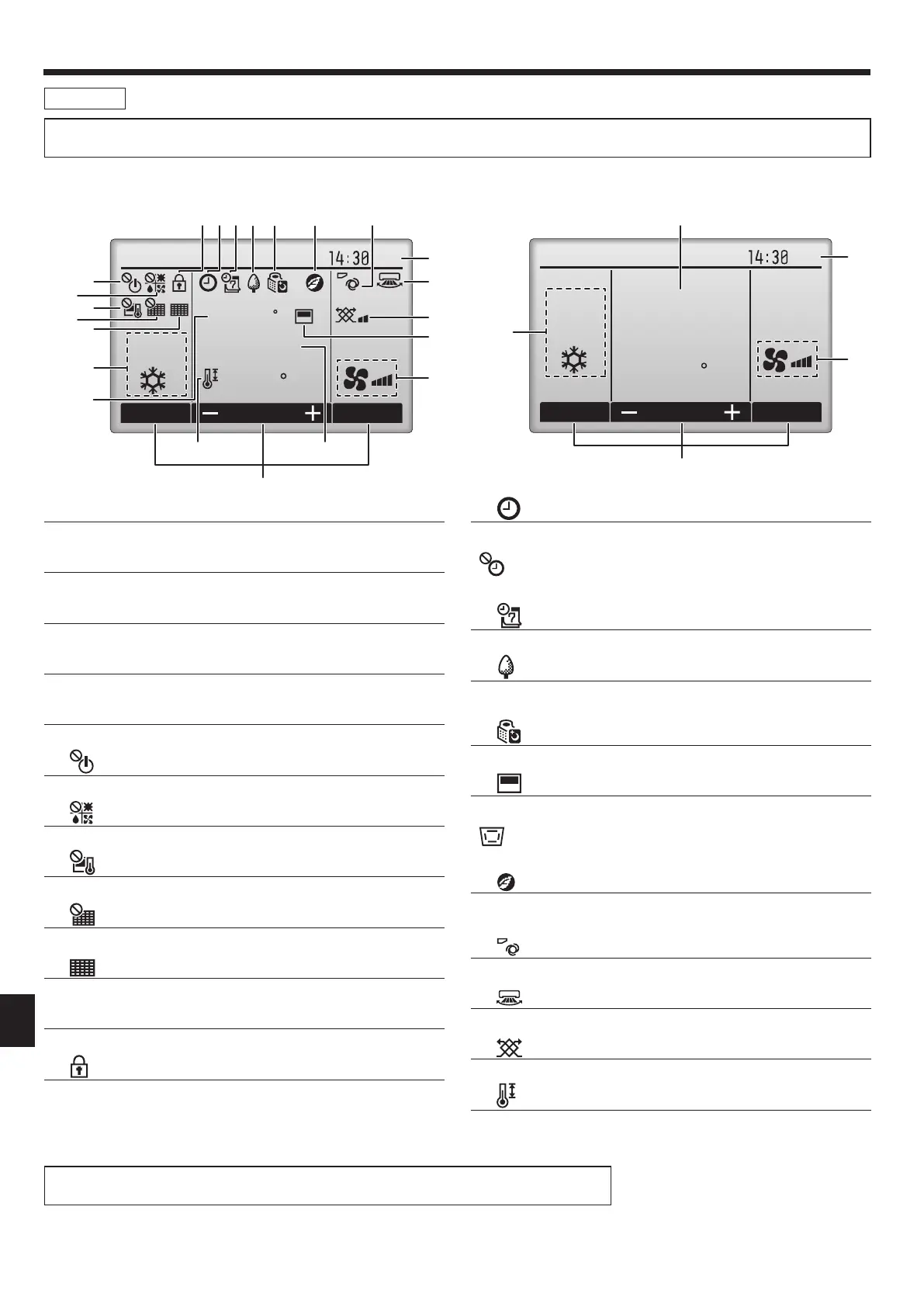

The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the

setting on the Main display setting. (Refer to operation manual included with remote controller.)

▌1Operationmode

Indoor unit operation mode appears here.

▌2Presettemperature

Preset temperature appears here.

▌3Clock(SeetheInstallationManual.)

Current time appears here.

▌4Fanspeed

Fan speed setting appears here.

▌5Buttonfunctionguide

Functions of the corresponding buttons appear here.

▌6

Appears when the ON/OFF operation is centrally controlled.

▌7

Appears when the operation mode is centrally controlled.

▌8

Appears when the preset temperature is centrally controlled.

▌9

Appears when the lter reset function is centrally controlled.

▌0

Indicates when lter needs maintenance.

▌1Roomtemperature(SeetheInstallationManual.)

Current room temperature appears here.

▌2

Appears when the buttons are locked.

* All icons are displayed for explanation.

▌3

Appears when the On/Off timer, Night setback, or Auto-off timer func-

tion is enabled.



appears when the timer is disabled by the centralized control

system.

▌4

Appears when the Weekly timer is enabled.

▌5

Appears while the units are operated in the energy-save mode. (Will

not appear on some models of indoor units)

▌6

Appears while the outdoor units are operated in the silent mode.

▌7

Appears when the built-in thermistor on the remote controller is acti-

vated to monitor the room temperature (1).

appears when the thermistor on the indoor unit is activated to

monitor the room temperature.

▌8

Appears when the units are operated in the energy-save mode with 3D

i-see Sensor.

▌9

Indicates the vane setting.

▌)

Indicates the louver setting.

▌!

Indicates the ventilation setting.

▌@

Appears when the preset temperature range is restricted.

Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu screen.

(Refer to operation manual included with remote controller.)

Display

2.PartsNames

Fri

Mode Temp. Fan

Room

Cool

Set temp.

Fri

Cool

Mode Temp. Fan

Set temp.

)

2 3 4 5 6 8 9
