EN-3
Emergency operation switch *2

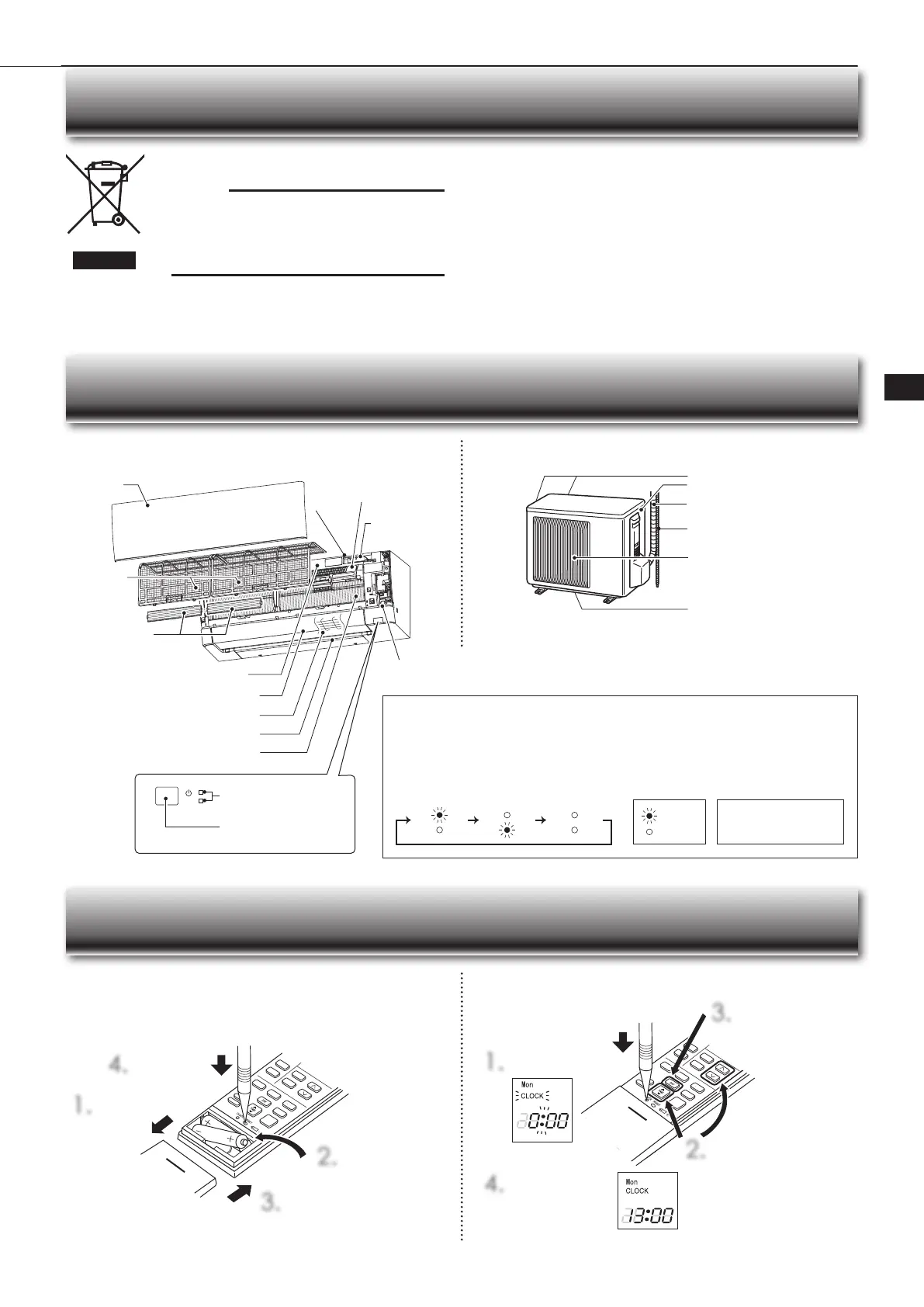

NAME OF EACH PART
Indoor unit Outdoor unit
Outdoor units may be different in appearance.
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Spec name plate *1
*1 The manufacturing year and month are indicated on
the spec name plate.
Emergency
COOL
Emergency
HEAT
Stop
PREPARATION BEFORE OPERATION
Before operation: Insert the power supply plug into the power outlet and/or
turn the breaker on.
Installing the remote controller batteries
1.
Remove the front lid.
2.
Insert the negative
pole of AAA alkaline
batteries fi rst.
3.
Install the front lid.
4.
Press RESET.
Setting current time
1.
Press CLOCK.
4.
Press CLOCK again.
2.
Press either the TIME button
or the TIMER buttons to set
the time.
Each press changes the clock
1 minute forward/backward (10
minutes when pressed longer).
3.
Press the DAY button
to set the day.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high
quality materials and components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and
accumulators, at their end-of-life, should be disposed of separately from your
household waste.
If a chemical symbol is printed beneath the symbol (Fig. 1), this chemical sym-
bol means that the battery or accumulator contains a heavy metal at a certain
concentration. This will be indicated as follows:
Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical
and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your
local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
Note:
This symbol mark is for EU countries only.
This symbol mark is according to the directive 2012/19/
EU Article 14 Information for users and Annex IX, and/
or to the directive 2006/66/EC Article 20 Information for
end-users and Annex II.
To dispose of this product, consult your dealer.
DISPOSAL
Fig. 1
Set temperature : 24°C
Fan speed : Medium
Horizontal vane : Auto
*2
When the remote controller cannot be used...
Emergency operation can be activated by pressing the emergency operation switch (E.O. SW)
on the indoor unit.
Each time the E.O. SW is pressed, the operation changes in the following order:
: Lit
: Not lit
Operation indicator lamp
Remote control receiving
section
Horizontal vane
Air fi lter
Front panel
Spec name plate *1
Heat exchanger
Fan guard
Air outlet
Air cleaning fi lter
(V Blocking Filter)
Air purifying device
(VGKP type only)
Wi-Fi
®
interface
Air inlet
DG79A01ZL01A_01En.indd 3 2022/06/14 17:04:54
