● OPERATING INSTRUCTIONS ●
EN
EN-4
Outdoor unit

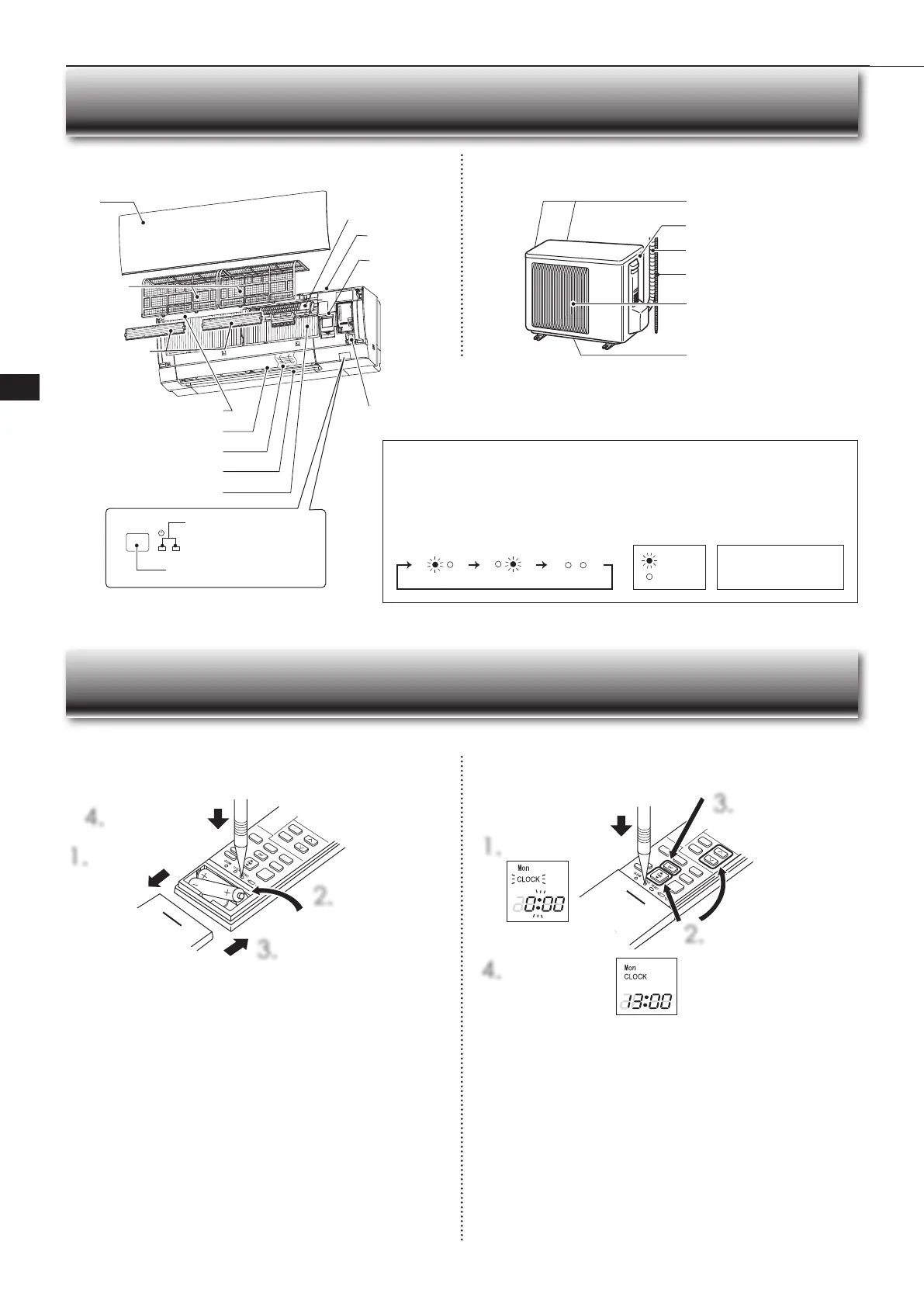

Name of Each Part
Indoor unit
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Spec name plate *1
Operation
indicator lamp
Remote control
receiving section
Horizontal vane
Air outlet
Air fi lter
Heat exchanger
Emergency
operation switch *2
Front
panel
Spec name plate *1
Air inlet
Wi-Fi interface
Fan guard
Air cleaning fi lter
(V Blocking Filter,
VGKP type: option)
Air purifying device
(VGKP type only)
Outdoor units may be diff erent in appearance.
*1 The manufacturing year and month are indicated on the spec name plate.
Emergency
cooling operation
Emergency
heating operation
Stop
Set temperature : 24°C
Fan speed : Medium
Horizontal vane : Auto
*2
When the remote controller cannot be used...
Emergency operation can be activated by pressing the emergency operation switch (E.O. SW)
on the indoor unit.
Each time the E.O. SW is pressed, the operation changes in the following order:
: Lit
: Not lit
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
Installing the remote controller batteries
Setting current time
Preparation Before Operation
1.
Remove the front lid.
2.
Insert the negative
pole of AAA
alkaline batteries fi rst.
3.
Install the front lid.
4.
Press the reset
button.
1.
Press the clock button.
4.
Press the clock
button again.
2.
Press either the time button
or the timer buttons to set the
time.
Each press changes the clock
1 minute forward/backward (10
minutes when pressed longer).
3.
Press the day button
to set the day.
DG79A08PL02_01En.indd 4DG79A08PL02_01En.indd 4 2023/06/12 14:25:402023/06/12 14:25:40
