8

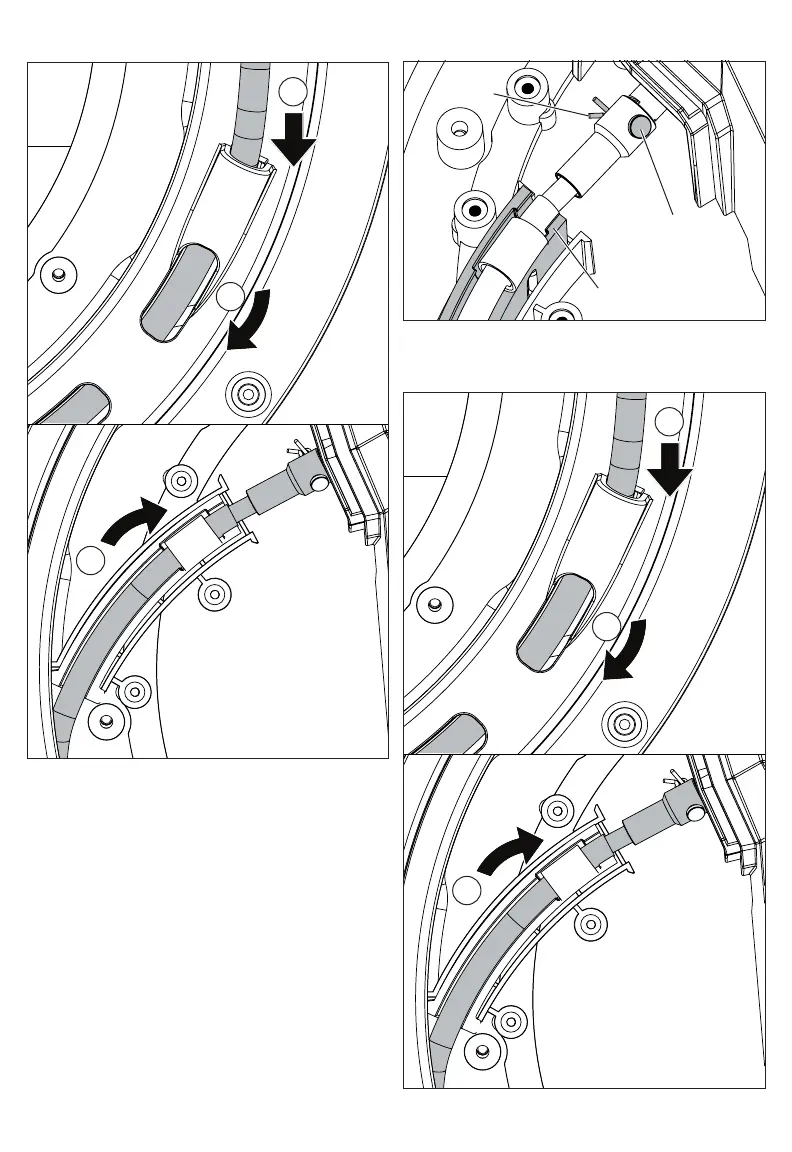

11. Route the new cable through the housing as
shown until the cable appears inside the drum.
3
1
2
12. Align cable and cable drive holes using the sup-
plied hex wrench.
13. Install the connector pin and hairpin.
14. Push the cable into the recessed ruber guides.
15. Push the remaining length of cable into the tool.
16. Reinstall the "Remove to Access Cable" cover.
Replacing the Cable
1. WARNING! Remove battery to avoid starting the tool.
2. Remove the "Remove to Access Cable" cover.
3. Remove the hairpin and conector pin to separate
the cable from the cable drive.
4. Pull the cable out of the recessed rubber guides
to free the cable from the housing.
Cable guide
Connector pin
Hairpin
5. While noting how the cable is routed through the
housing, pull the cable out of the tool.
6. Route the new cable through the housing as
shown until the cable appears inside the drum.
3
1
2
7. Align cable and cable drive holes using the sup-
plied hex wrench.
