Direct Read Out and Arrow Indicator
If a laser is sensed, the direct read out, arrow indi-
cator and laser locator indicator LED will illuminate
to guide the user in moving the receiver to align the
laser with the center. If no laser is detected, the LED,
arrow indicator will remain o, and the direct read out
will show no value and will display "- - -".
• Laser locator indicator LED is blue: - Move the
receiver location up until on center.
• Laser locator indicator LED is green: - The line being
detected from the laser is on center.
• Laser locator indicator LED is red: - Move the re-
ceiver location down until on center.
NOTE: If the laser leaves the sensor, the up or down
arrow segments will begin to cycle indicating the
direction that the laser was last detected.
Troubleshooting
• Ensure batteries are inserted correctly according to
the +/- polarity marked in the compartment.
• Replace batteries that may be at the end of life.
• Ensure the tool's internal temperature is within speci-
ed operating ranges. If stored in excessive heat or
cold, allow at least 2 hours to acclimate to ambient
temperature before turning on the tool.
• If the receiver freezes, press and hold the power
button for 15 seconds or remove the batteries to
reset.
•General Alarm - See manual will ash on the screen
and an alarm tone will play. Return the tool to an
authorized MILWAUKEE Service Center.
• Leveling Error - The laser was unable
to nd a leveling solution due to time
out or out of leveling range. Adjust laser
to be on a level surface, any pressing
of the buttons on the rotary laser may
trigger the bump alarm or releveling
may occur. If that doesn't work, press the leveling
mode button on the laser. If that doesn't work, try
power cycling the laser.
• Temperature Alarm - Indicates that
the laser is too hot or cold. To resume
work, the laser must be returned to a
suitable operating temperature. Note
the internal temperature may be sev-
eral degrees warmer than ambient
temperature.
• Wrong Vertical Orientation Alarm -
This will appear if the laser is placed
in a non-compatible vertical orienta-
tion. Adjust laser as directed on the
LCD screen. The Keypad should be
facing up and parallel to the ground.
Pairing Failure:
• Ensure the remote/receiver is powered on, within
the distance range and in Pairing Mode.
• Avoid articial overhead lighting on the remote/
receiver sensor.
• Avoid the laser projecting a beam onto the remote/
receiver sensor during pairing.
• Avoid transmitting devices.
• Place the laser on a stable surface during pairing
to prevent interruption from bump alarms. For best
results, pair in the horizontal orientation.
• The no connection error may appear if
your devices are not paired. Try repeat-
ing the pairing steps in the "Pairing the
Remote/Receiver with the Rotary La-
ser" section.
If problem persists, please contact an
authorized MILWAUKEE service center
for support.

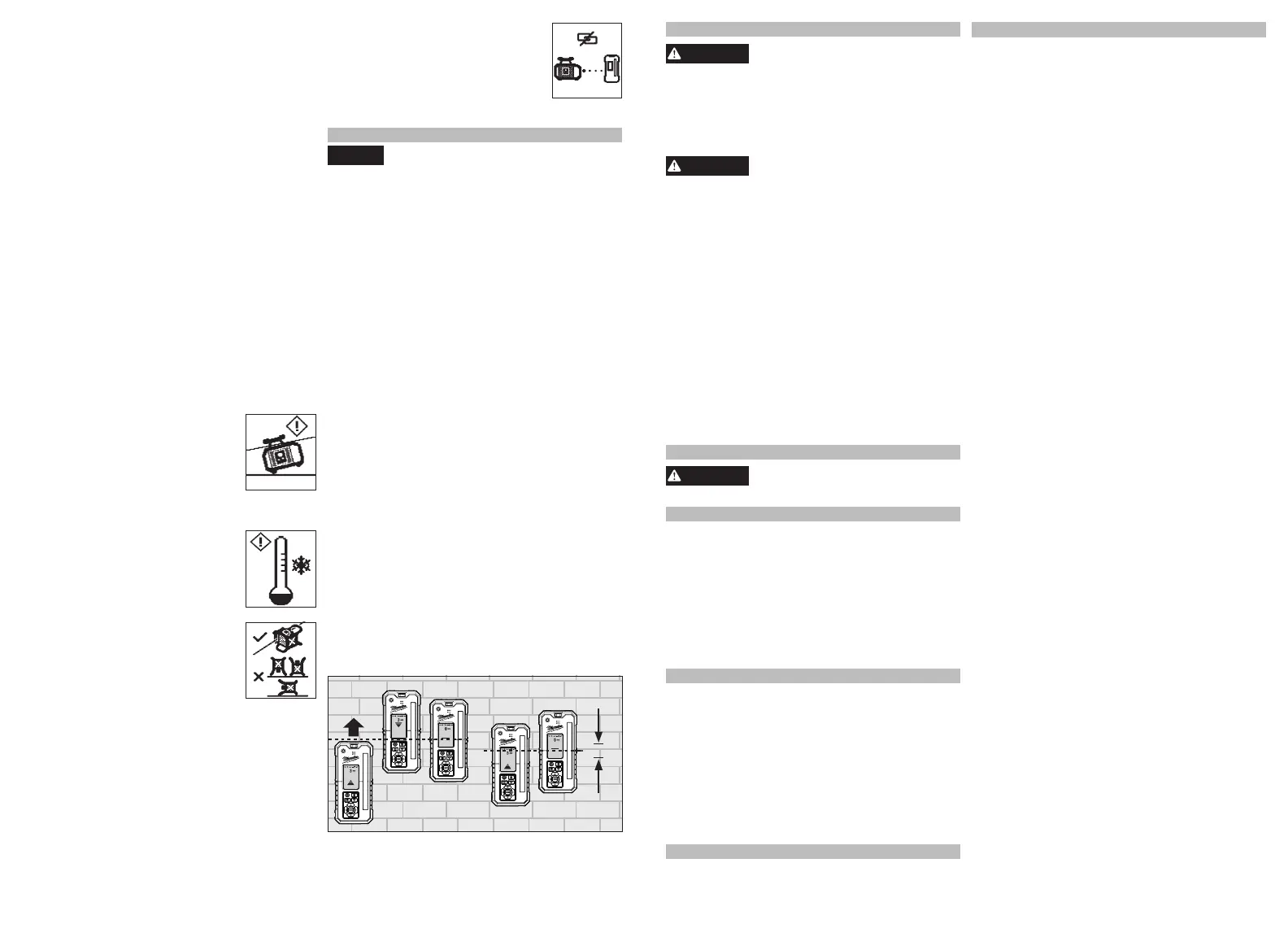

ACCURACY FIELD CHECK
NOTICE
Perform the Accuracy Field Check
procedure immediately upon unboxing
of each remote/receiver and before exposure to
jobsite conditions. Should any deviation from listed
product accuracy be found, please contact an autho-
rized MILWAUKEE service center. Failure to do so
could result in rejection of warranty claim.
Inuences on Accuracy
Sunlight or other extreme lighting conditions can
adversely impact accuracy. For best results, use
indoors or avoid direct sunlight.
Abusive treatment of the laser level remote/receiver,
such as excessive impacts from drop, can lead to
deviations in product accuracy.
Therefore, it is recommended to conduct the eld
check procedure after any impact or before complet-
ing any critical jobs.
For best results, use with MILWAUKEE Lasers.
Remote/Receiver Accuracy
Check Procedure
1. Set up compatible laser 30' from at wall.
2. Ensure the laser source is self leveled and per-
pendicular to wall.
3. Place remote/receiver at on wall directly in front
of the laser source and slightly below the projected
laser line.
4. Keeping the remote/receiver bottom parallel
with the ground, raise receiver until down arrow
appears.
5. Lower the remote/receiver until center line ap-
pears.
6. Mark a line on the wall – Point I.
7. Continue to lower remote/receiver until the up
arrow appears.
8. Raise remote/receiver until center line appears.
9. Mark a line on the wall – Point II.
10. Measure the distance between Point I and Point
II – divide by 2. After complete, compare this to the
receiver accuracy table in the "Setting Accuracy"
section.
Point I
Point II
Point I
Point II
d
MAINTENANCE
WARNING
To reduce the risk of injury, always
remove the battery before perform-
ing any maintenance. Never disassemble the tool.
Maintain Laser Receiver
Maintain tools. If damaged, have the tool repaired
by an authorized MILWAUKEE service center before
use. Accidents may be caused by poorly maintained
tools.
WARNING
To reduce the risk of personal in-
jury and damage, never immerse
your tool in liquid or allow a liquid to ow inside
them.
Cleaning
Clean dust and debris from any vents. Keep tool
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain clean-
ing agents and solvents are harmful to plastics and
other insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household deter-
gents containing ammonia. Never use ammable or
combustible solvents around tools.
Cleaning the Sensor Window
Blow o loose particles with clean compressed air.
Carefully wipe the surface with a cotton swab moist-
ened with water.
Repairs
For repairs, return the tool, battery pack and charger
to the nearest authorized service center.
ACCESSORIES
WARNING
Use tools only with specifically
designated accessories. Use of any
other accessories may create risk of injury.
WIRELESS COMMUNICATION
For products provided with wireless communication
features, including ONE-KEY™:
Pursuant to part 15.21 of the FCC Rules, do not
modify this product. Modication could void your
authority to operate the product. This device complies
with part 15 of the FCC Rules and ISED-Canada's
license exempt RSS standards. Operation is subject
to the following two conditions: 1) This device may
not cause harmful interference, and 2) This device
must accept any interference received, including
interference that may cause undesired operation.
SERVICE - UNITED STATES
1-800-SAWDUST (1.800.729.3878)
Monday-Friday, 7:00 AM - 6:30 PM CST
or visit www.milwaukeetool.com
Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at
www.milwaukeetool.com to receive important
notications regarding your tool purchases.
SERVICE - CANADA
Milwaukee Tool (Canada) Ltd
1.877.948.2360
Monday-Friday, 7:00 AM - 4:30 PM CST
or visit www.milwaukeetool.ca
LIMITED WARRANTY USA & CANADA
This MILWAUKEE power tool* is warranted to the original purchaser
from an authorized MILWAUKEE distributor only to be free from
defects in material and workmanship. Subject to certain exceptions,
MILWAUKEE will repair or replace any part on this power tool which,
after examination, is determined by MILWAUKEE to be defective
in material or workmanship for a period of two (2) years after the
date of purchase unless otherwise noted. Return of the power tool
to a MILWAUKEE factory Service Center location or MILWAUKEE
Authorized Service Station, freight prepaid and insured, is required.
A copy of the proof of purchase should be included with the return
product. This warranty does not apply to damage that MILWAUKEE
determines to be from repairs made or attempted by anyone other
than MILWAUKEE authorized personnel, misuse, alterations, abuse,
normal wear and tear, lack of maintenance, or accidents.
Normal Wear: Many power tools need periodic parts replacement and
service to achieve best performance. This warranty does not cover
repair when normal use has exhausted the life of a part including,
but not limited to, chucks, brushes, cords, saw shoes, blade clamps,
o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and
bumper cover washers.
*This warranty does not cover battery packs or all power tools. Refer
to the separate and distinct warranties available for those products.
The warranty period for the LED in the LED Work Light (49-24-0171)
and the LED Upgrade Bulb (49-81-0090) is the lifetime of the product
subject to the limitations above. If during normal use the LED or LED
Upgrade Bulb fails, the part will be replaced free of charge.
Warranty Registration is not necessary to obtain the applicable war-
ranty on a MILWAUKEE power tool product. The manufacturing date
of the product will be used to determine the warranty period if no proof
of purchase is provided at the time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT
REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON-
TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT.
IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT
PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR
PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES,
EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON-
SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN
ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS
FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX-
CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL.
TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH
DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR-
RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE
EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the 'Service Center Search' in the Parts & Service sec-
tion of MILWAUKEE's website www.milwaukeetool.com or call 1.800.
SAWDUST (1.800.729.3878) to locate your nearest service facility
for warranty and non-warranty service on a MILWAUKEE power tool.
