4
1. To remove the Quik-Lok
®
Cord, turn the cord nut
1/4 turn to the left and pull it out.
2. To replace the Quik-Lok
®
Cord, align the connector
keyways and push the connector in as far as it will
go. Turn the cord nut 1/4 turn to the right to lock.
WARNING
To reduce the risk of injury, always
use a side handle when using this
tool. Always brace and hold securely.
Adjusting the Side Handle
(Cat. No. 0200-20, 0202-20, 0299-20,
0300-20, 0302-20)
Gearcase
Side handle ring
Side handle
Locking
keys
Detents
1. Turn the side handle counterclockwise to loosen.
2. Slide the side handle assembly forward over the
chuck and rotate to the desired angle.
3. Slide the side handle back to the gearcase and
position the locking keys into the detents. The
locking keys help prevent the handle from slipping.
NOTE: The side handle ring must clear the chuck.
4. Turn the side handle clockwise to tighten.
NOTE: Always use the side handle for best control.
Chuck Identication
Chuck Type Drill Cat. No.
Keyed 0100-20
0101-20
0200-20
Double sleeve
Keyless
0201-20
Single sleeve
Keyless
0202-20
0302-20
Installing and Removing Bits
WARNING
To reduce the risk of injury, always
remove the chuck key from the
chuck after each use.
SPECIFICATIONS
Cat. No. ..................................................... 0100-20
Volts .............................................................120 AC
Amps .....................................................................7
No Load RPM ............................................ 0 - 2500
Cat. No. ..................................................... 0101-20
Volts .............................................................120 AC
Amps .....................................................................7
No Load RPM ............................................ 0 - 4300
Cat. No. ..................................................... 0200-20
Volts .............................................................120 AC
Amps .....................................................................7
No Load RPM ............................................ 0 - 1200
Cat. No. ..................................................... 0201-20
Volts .............................................................120 AC
Amps .....................................................................7
No Load RPM ............................................ 0 - 2500
Cat. No. ..................................................... 0202-20
Volts .............................................................120 AC
Amps .....................................................................7
No Load RPM ............................................ 0 - 1200
Cat. No. ..................................................... 0299-20
Volts .............................................................120 AC
Amps .....................................................................8
No Load RPM .............................................. 0 - 850
Cat. No. ..................................................... 0300-20
Volts .............................................................120 AC
Amps .....................................................................8
No Load RPM .............................................. 0 - 850
Cat. No. ..................................................... 0302-20
Volts .............................................................120 AC
Amps .....................................................................8
No Load RPM .............................................. 0 - 850

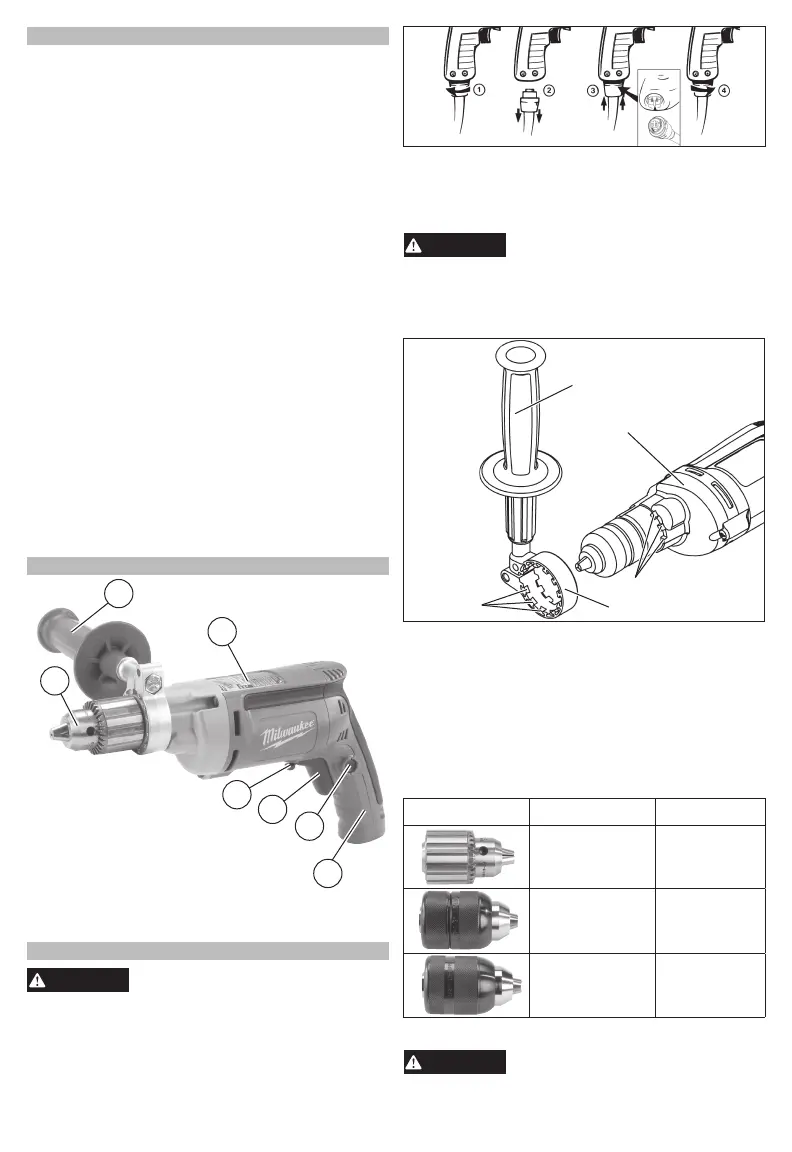

FUNCTIONAL DESCRIPTION
1. Chuck
2. Side handle
(0200-20, 0202-20,
0299-20, 0300-20, 0302-20 only)
3. Nameplate
4. Handle
5. Lock button
6. Trigger
7. Forward/Reverse switch
1
2
3
5
6
7
4
ASSEMBLY
WARNING
To reduce the risk of injury, always
unplug tool before changing or
removing accessories. Only use accessories
specically recommended for this tool. Others
may be hazardous.
Removing and Replacing Quik-Lok
®
Cords
(Cat. No. 0100-20, 0101-20, 0202-20, 0302-20)
MILWAUKEE's exclusive Quik-Lok
®
Cords provide
instant eld replacement or substitution.
